Replacement Considerations with CompactLogix and Compact GuardLogix Systems Chapter 3

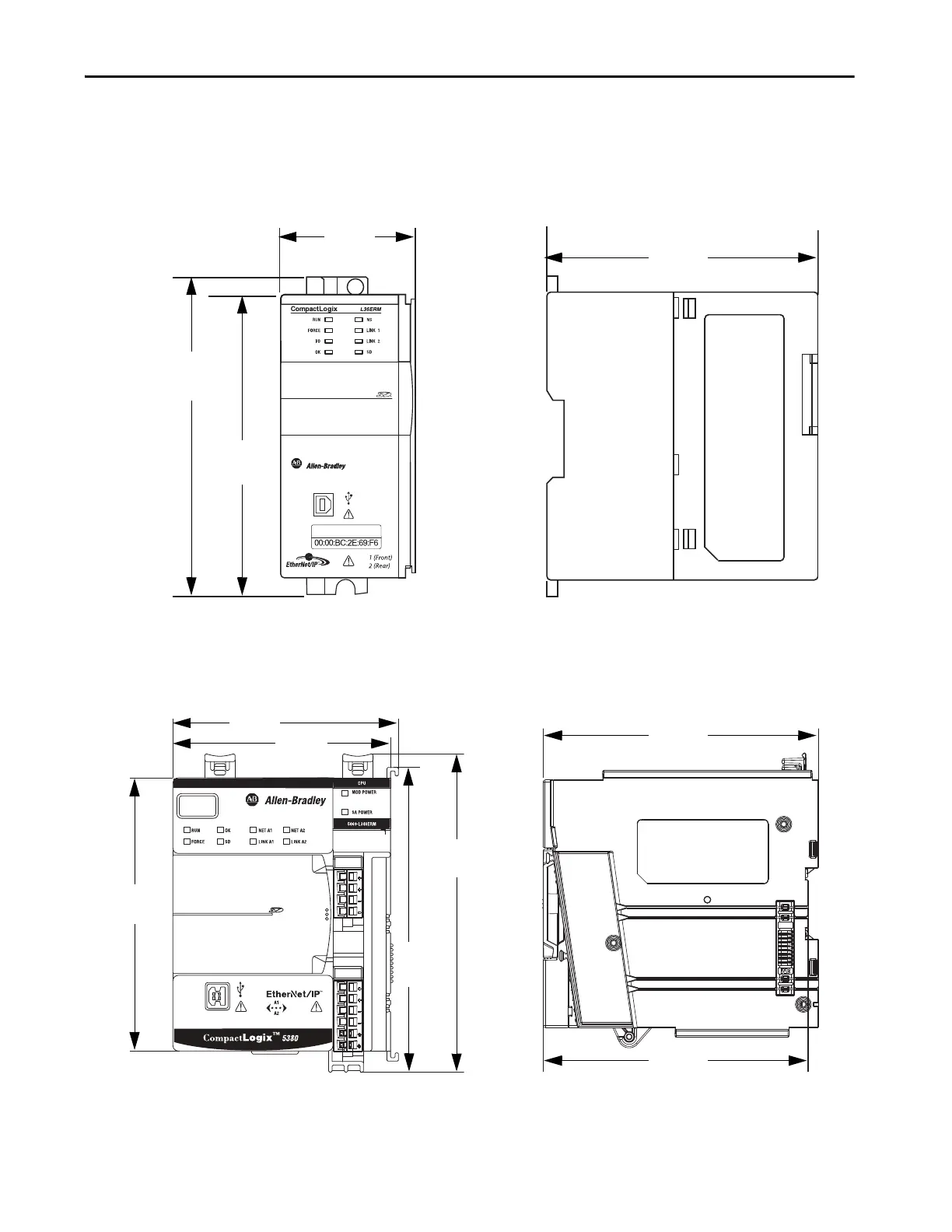

Controller Dimensions
This section shows dimensional differences.
CompactLogix 5370 L3 Dimensions
CompactLogix 5380 Dimensions
118.00 mm
(4.65 in.)
105.00 mm
(4.13 in.)
55.00 mm
(2.17 in.)
132.00 mm
(5.20 in.)
98.10 mm
(3.86 in.)
137.84 mm
(5.43 in.)
123.00 mm
(4.84 in.)
144.01 mm
(5.70 in.)
136.81 mm
(5.39 in.)
130.31 mm
(5.13 in.)
101.66 mm
(4.00 in.)
