Allen-Bradley CompactLogix 1769-L23E-QB1B User Manual

10 CompactLogix Controller
Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

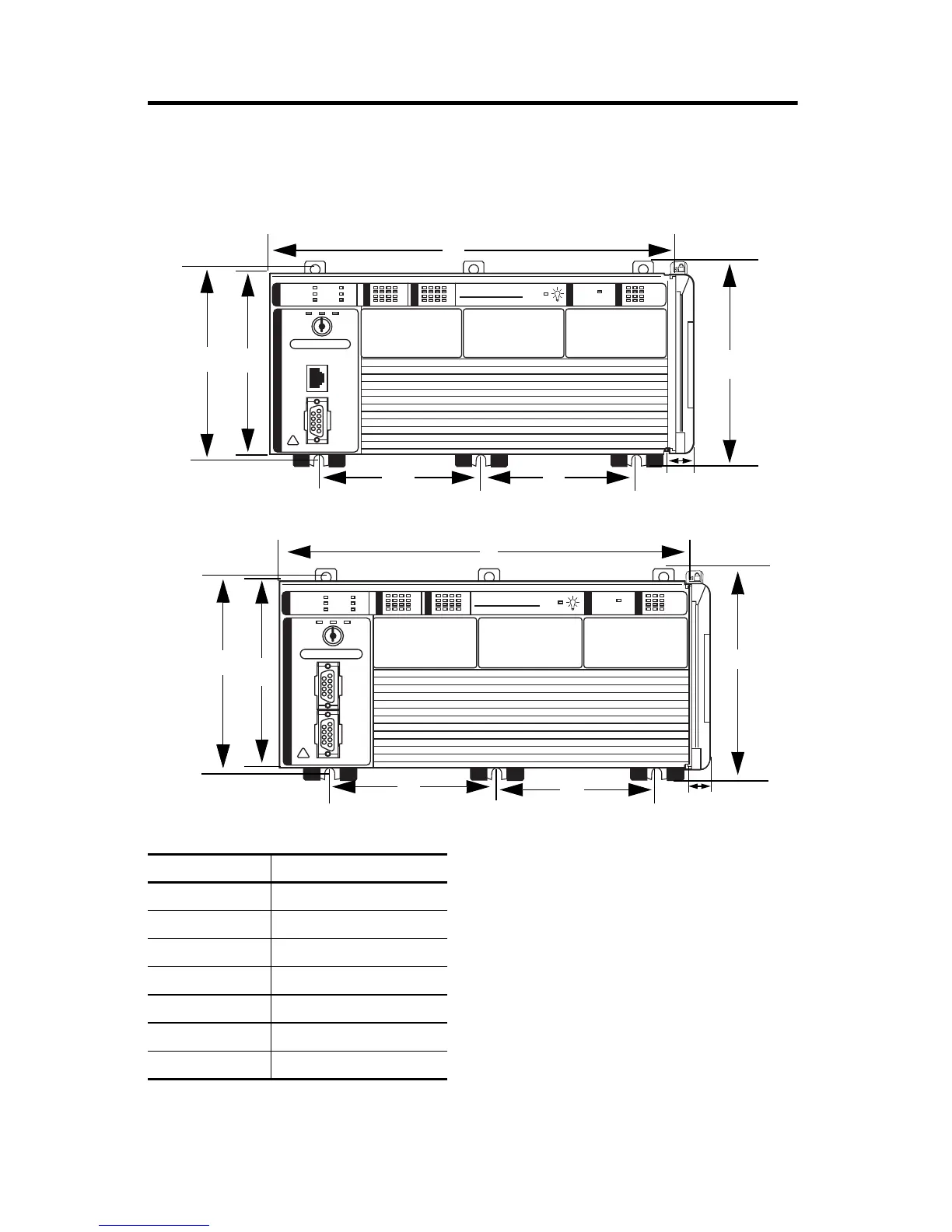

1769-L23E-QBFC1B and 1769-L23-QBFC1B Packaged Controllers
The 1769-L23E-QBFC1B and 1769-L23-QBFC1B packaged controllers have these
approximate dimensions.
Measurement
(1)
(1) Applies to both the 1769-L23E-QBFC1B and 1769-L23-QBFC1B
packaged controllers.
Dimension, approximate
a 249.25 mm (9.81 in.)
b 123.86 mm (4.88 in.)
c 118 mm (4.65 in.)
d 132 mm (5.20 in.)
e 98.475 mm (3.88 in.)
f 98.475 mm (3.88 in.)
g 18 mm (0.71 in.)
CompactLogix L23E
g
a
b
c
e
f
d
CompactLogix L23
OK
BATT
I/O
DCH 0
FORCE
RUN
g
a
b
c
e
f
b
d
