Allen-Bradley CompactLogix 1769-L23E-QB1B User Manual

CompactLogix Controller 9
Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

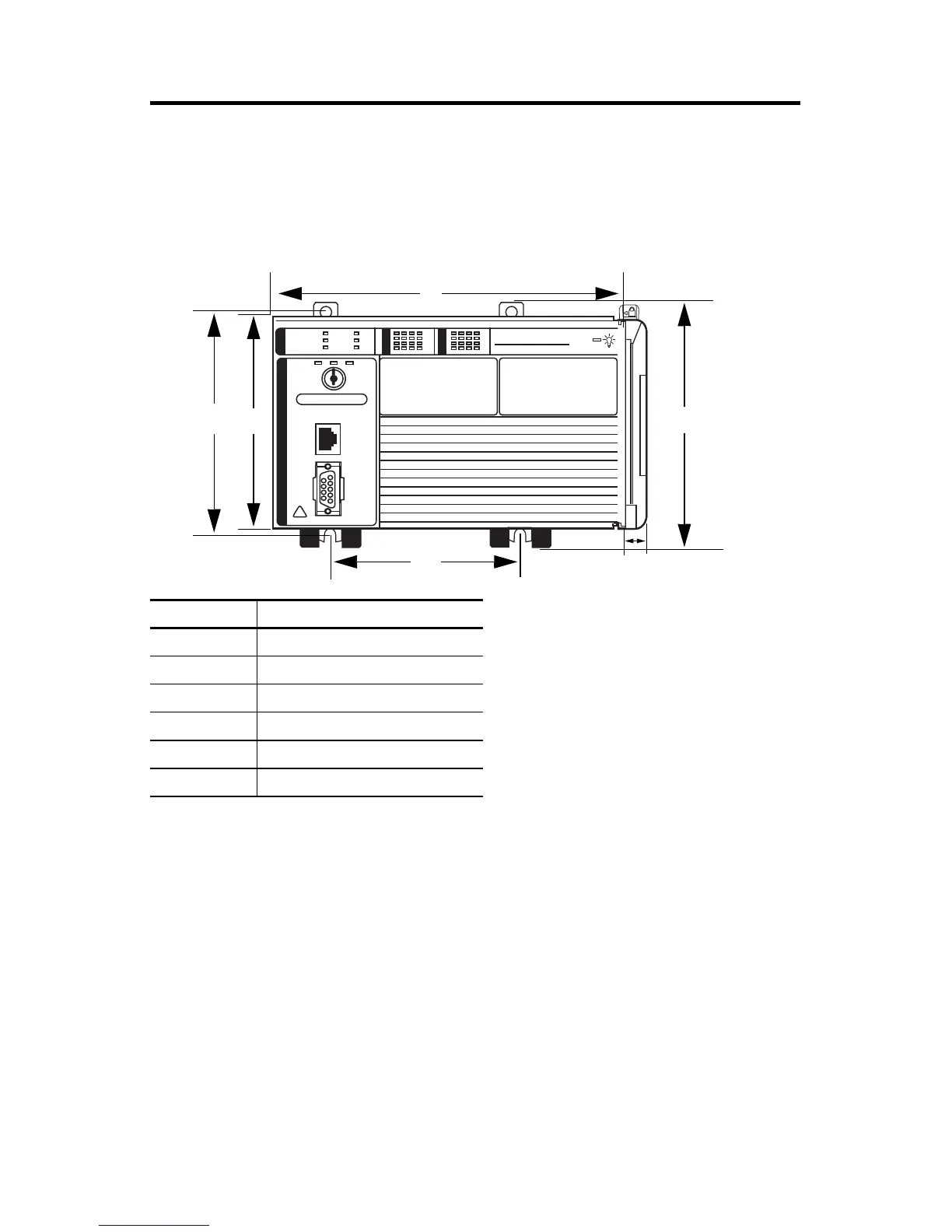

Packaged Controller Dimensions
1769-L23E-QB1B Packaged Controller
The 1769-L23E-QB1B controller has these approximate dimensions.
Measurement Dimension, approximate
a 185.2 mm (7.29 in.)
b 123.86 mm (4.88 in.)
c 118 mm (4.65 in.)
d 132 mm (5.20 in.)
e 132.9 mm (5.23 in.)
f 18 mm (0.71 in.)
CompactLogix L23E
a
f
b
c
d
e
Allen-Bradley Parts

Allen-Bradley CompactLogix 1769-L23E-QB1B Specifications

General

Brand	Allen-Bradley
Model	CompactLogix 1769-L23E-QB1B
Category	Controller
Language	English
