Allen-Bradley CompactLogix 1769-L23E-QB1B User Manual

16 CompactLogix Controller
Rockwell Automation Publication 1769-IN082C-EN-P - February 2013
IMPORTANT
To comply with the CE Low Voltage Directive (LVD), this equipment and all connected I/O must
be powered from a source compliant with one of the following:
• safety extra low voltage (SELV)
• protected extra low voltage (PELV)
Power Wire Size and Terminal Screw Torque
Wire Type Wire Size Terminal Screw Torque
Solid or stranded Cu: 75 °C (167 °F) 0.25... 2.5 mm
2
(22...14 AWG) 1.27 Nm (11.24 lb•in)

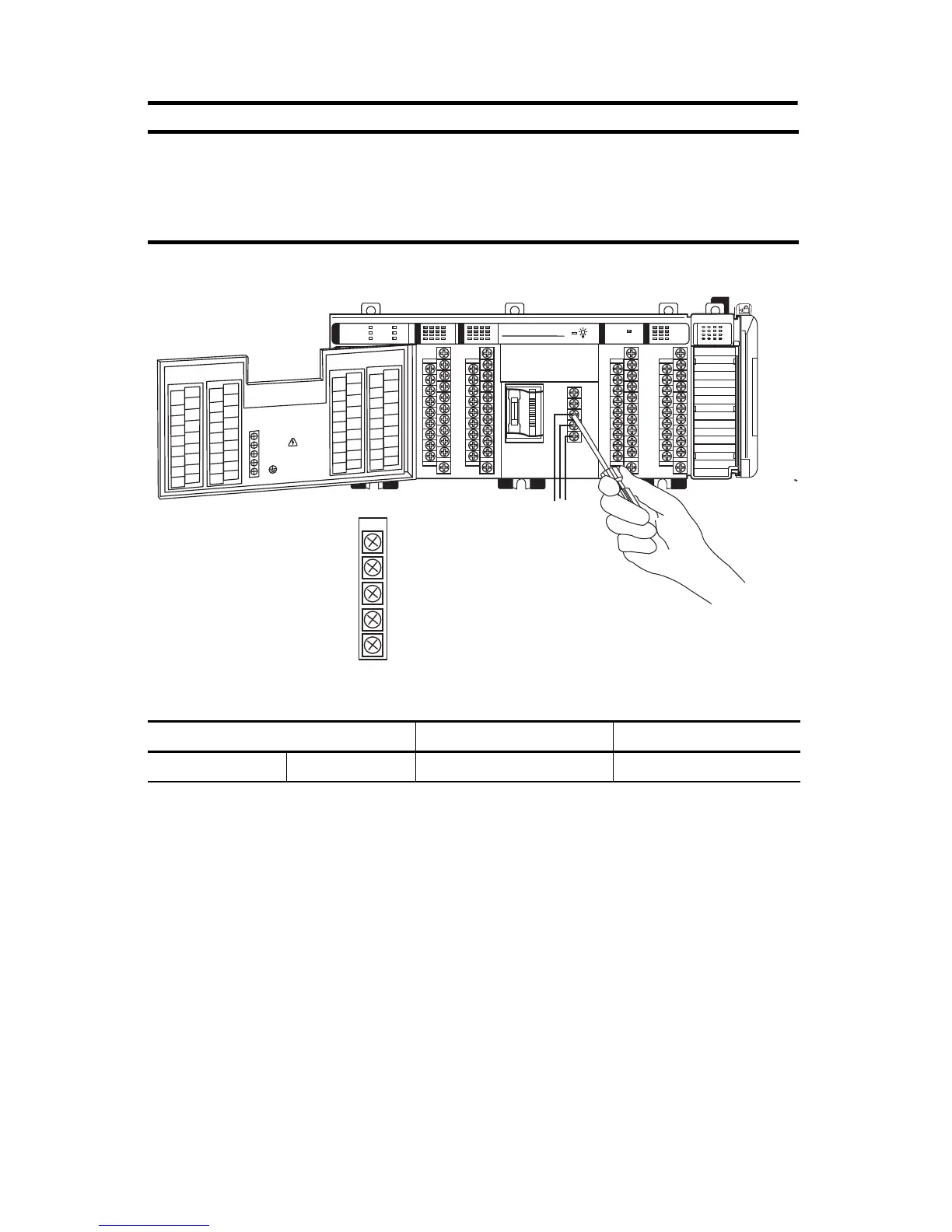

CompactLogix L23E
No Connection
No Connection
+24 V DC
DC Neutral
System Power Ground
