32 CompactLogix Controller
Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

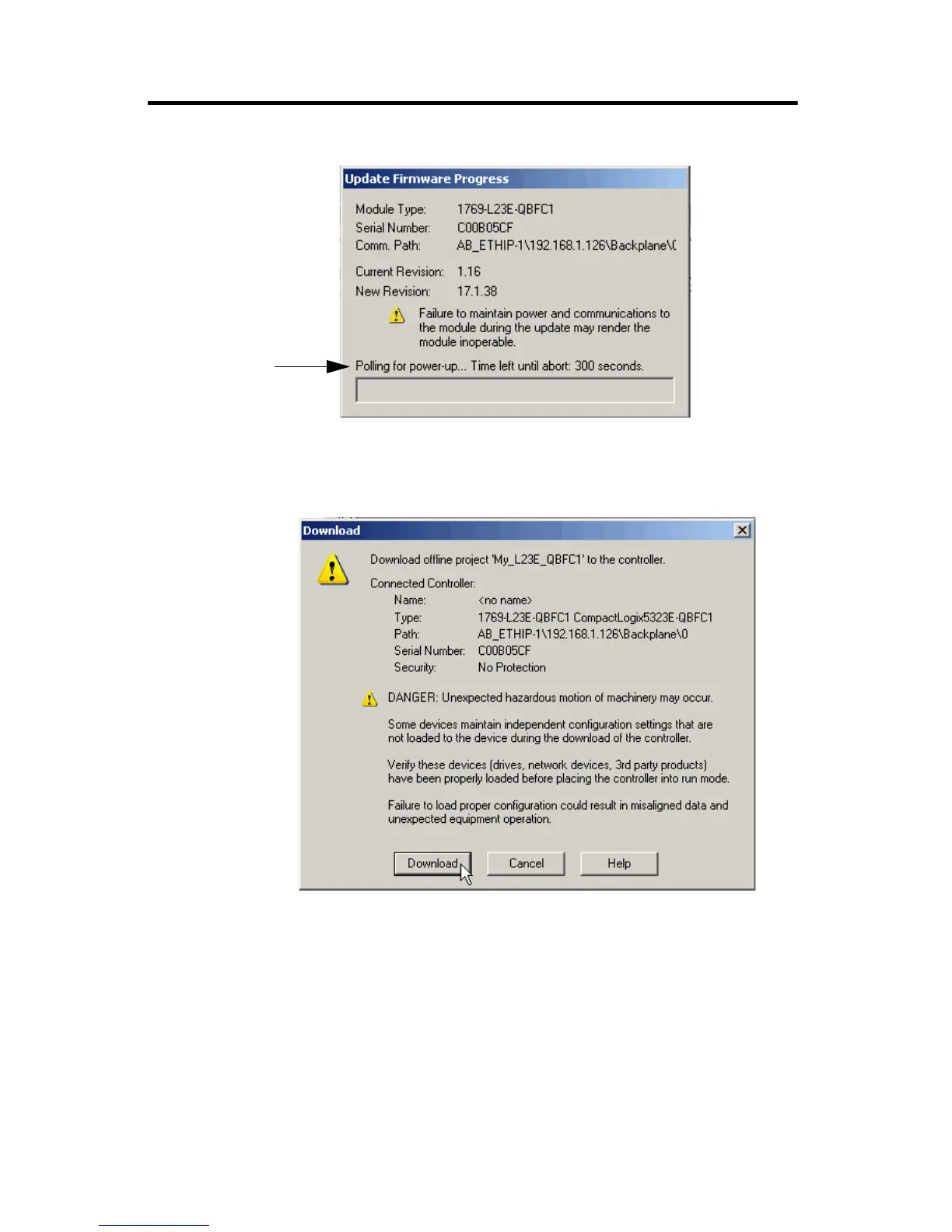

During the firmware upgrade you see the status change as shown below.
Continue to allow the firmware upgrade to complete without interruption.
When the firmware upgrade is complete, the Download dialog box displays and you may
continue by downloading your project to the packaged controller.
Status Change
