USB Ports
PanelView Component terminals have a USB device and USB host port. You must connect the PanelView
USB device port to a USB host that is connected to the same ground system.
You can power USB peripherals directly from the PanelView component terminal. If the USB peripheral is
not powered directly from the PanelView USB port either:
• install the USB peripheral in the same enclosure as the PanelView terminal and make sure it is
connected to the same ground system.
• connect to the USB peripheral through a galvanically isolated hub.

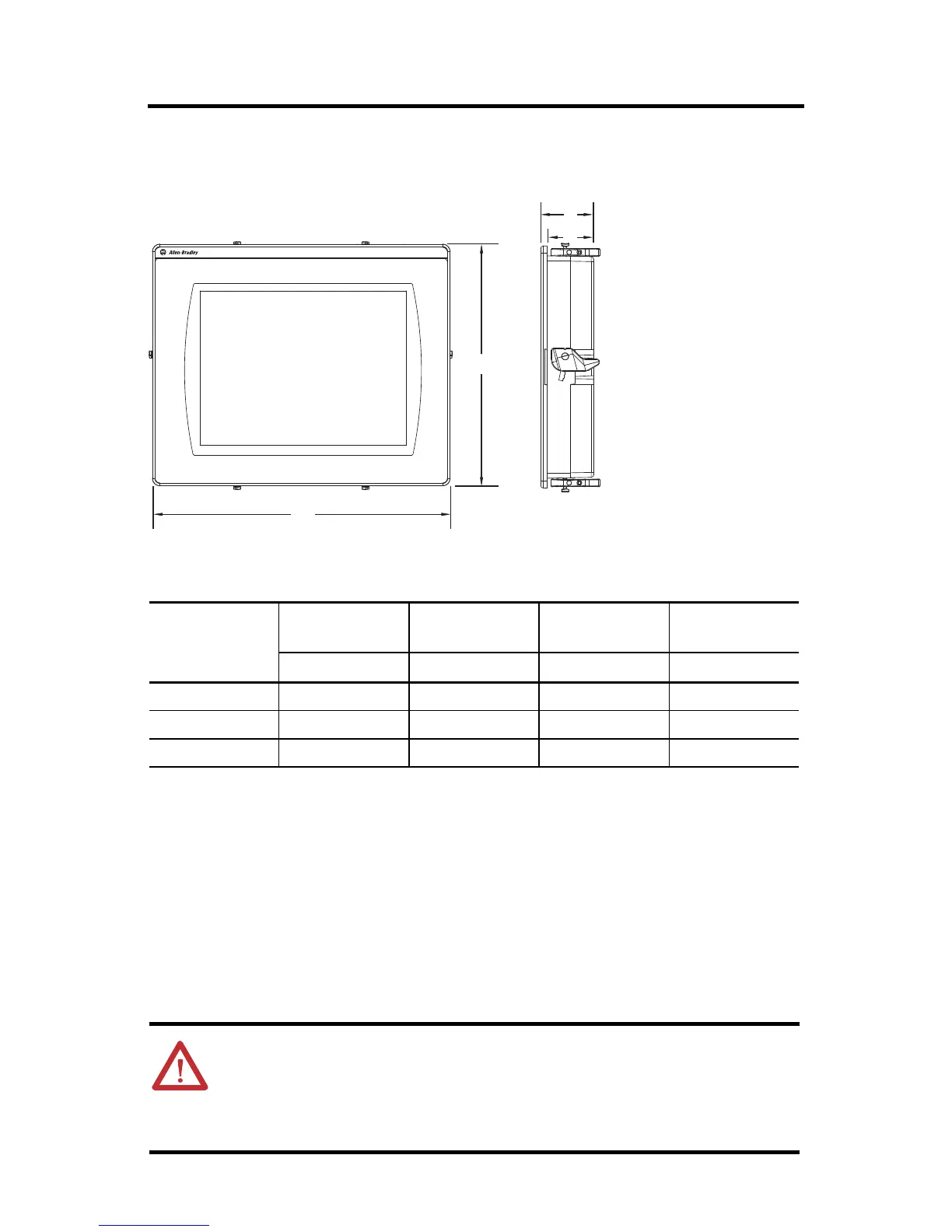

PanelView Component C600, C1000, and C400 Dimensions
PanelView
Component
Height, Approx. Width, Approx. Overall Depth,
Approx.
Mounted Depth,
Approx.
abcd
C400 Touch 113 mm (4.45 in.) 138 mm (5.43 in.) 43 mm (1.69 in.) 38 mm (1.49 in.)
C600 Touch 154 mm (6.0 in.) 209 mm (8.23 in.) 57 mm (2.25 in.) 49 mm (1.93 in.)
C1000 Touch 250 mm (9.84 in.) 308 mm (12.13 in.) 54 mm (2.13 in.) 49 mm (1.93 in.)
WARNING: If you connect or disconnect the communications cable with power applied to this
module or any device on the network, an electrical arc can occur. This could cause an explosion
in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
PanelView C1000
a
b
c
d
