10 Wiring and Grounding Guidelines for PanelView Plus Terminals

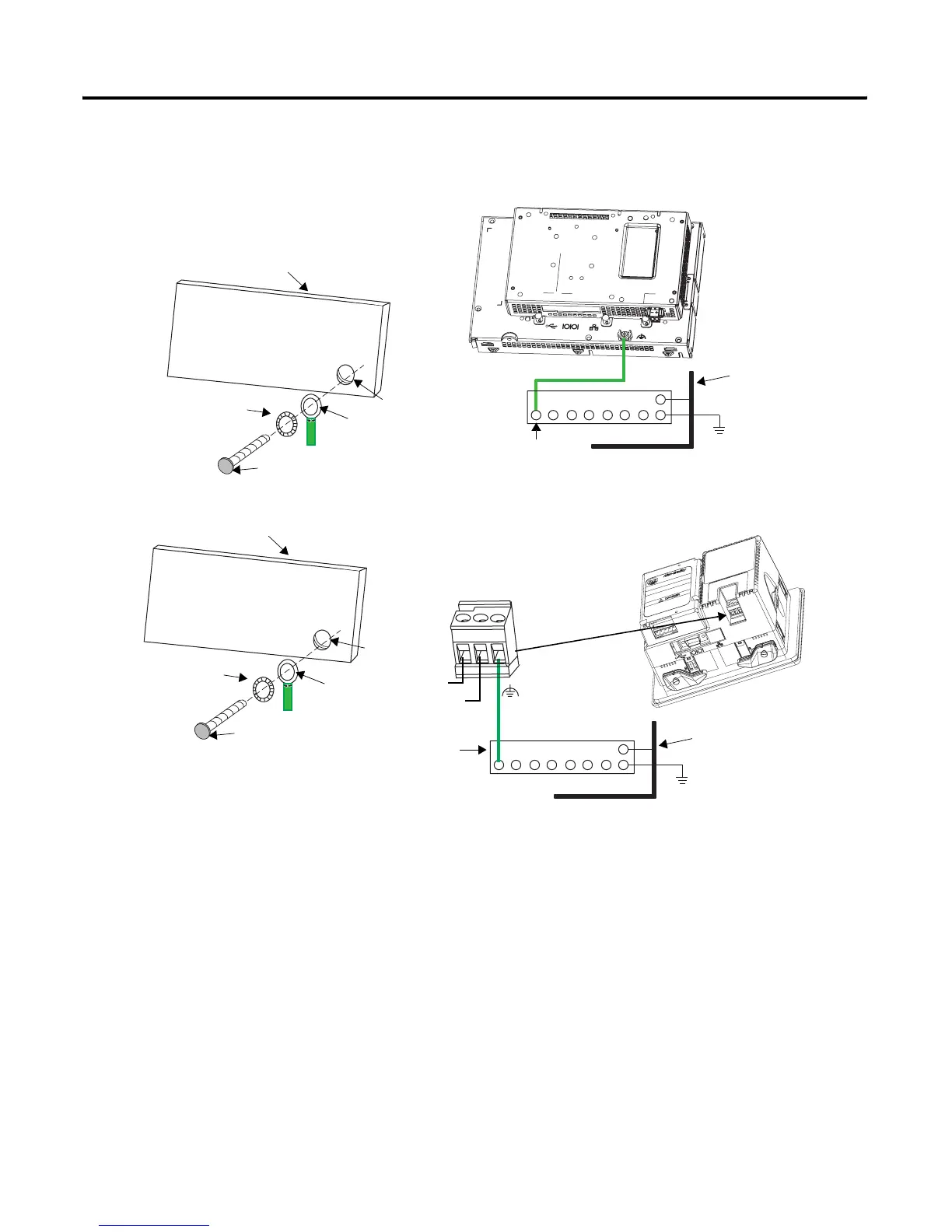

Figure 2 - Functional Earth Connection for 700 to 1500 Nonisolated DC Terminals
Figure 3 - Functional Earth Connection for 400 and 600 DC Terminals
Enclosure Wall
To Grounding Electrode System
Tapped Hole
Ground Lug
Bolt
Star Washer
Ground Bus
Ground Bus
Functional Earth/Ground to Ground Bus
Enclosure Wall
To Grounding Electrode System
Tapped Hole
Ground Lug
Bolt
Star Washer
DC +
DC -
Functional Earth
Ground Bus
Ground Bus

Allen-Bradley PanelView Plus 600 Specifications

General

Resolution	320 x 240 pixels
Touchscreen	Analog resistive
Backlight	LED
Operating System	Windows CE
Power Supply	24V DC
Communication Ports	Ethernet, RS-232
Memory	64 MB RAM
Operating Temperature	0°C to 50°C
Enclosure Rating	NEMA 4X
Processor	XScale processor
