English-12
Dimensions are in millimeters and (inches). Weights are in kilograms and (pounds).
PowerFlex 4 Frames – Ratings are in kW and (HP)
Optional Conduit Box – Dimensions are in millimeters and (inches)
Publication 22A-QS001B-EN-P – May 2002
Supersedes December 2001 Copyright © 2002 Rockwell Automation, Inc. All rights reserved. Printed in Taiwan.

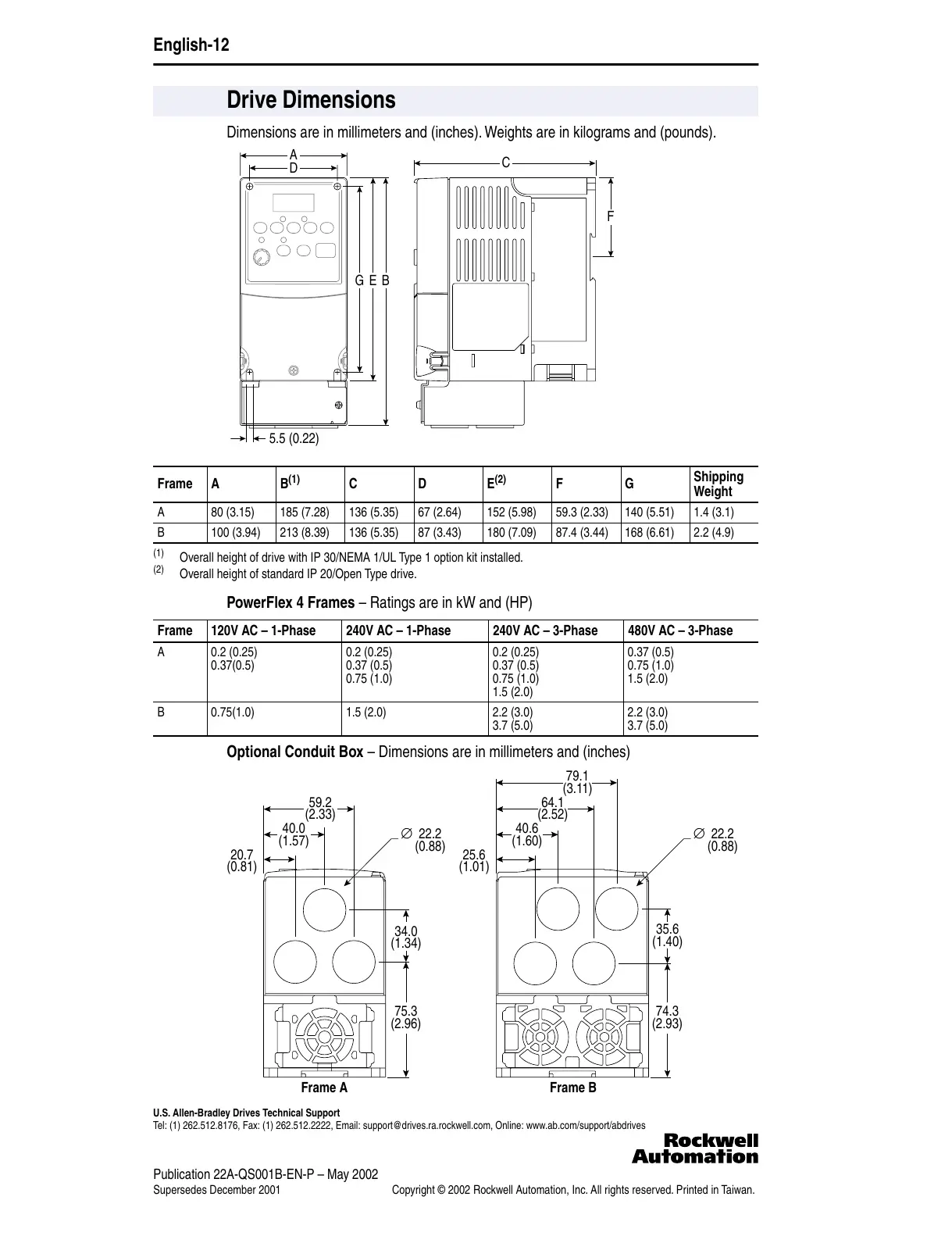

Drive Dimensions
A
GE
D
C
B
F
5.5 (0.22)
Frame A B
(1)
CDE
(2)
FG
Shipping
Weight
A 80 (3.15) 185 (7.28) 136 (5.35) 67 (2.64) 152 (5.98) 59.3 (2.33) 140 (5.51) 1.4 (3.1)
B 100 (3.94) 213 (8.39) 136 (5.35) 87 (3.43) 180 (7.09) 87.4 (3.44) 168 (6.61) 2.2 (4.9)
(1)
Overall height of drive with IP 30/NEMA 1/UL Type 1 option kit installed.
(2)
Overall height of standard IP 20/Open Type drive.
Frame 120V AC – 1-Phase 240V AC – 1-Phase 240V AC – 3-Phase 480V AC – 3-Phase
A 0.2 (0.25)
0.37(0.5)
0.2 (0.25)
0.37 (0.5)
0.75 (1.0)
0.2 (0.25)
0.37 (0.5)
0.75 (1.0)
1.5 (2.0)
0.37 (0.5)
0.75 (1.0)
1.5 (2.0)
B 0.75(1.0) 1.5 (2.0) 2.2 (3.0)
3.7 (5.0)
2.2 (3.0)
3.7 (5.0)
59.2
(2.33)
40.0
(1.57)
20.7
(0.81)
75.3
(2.96)
34.0
(1.34)
74.3
(2.93)
35.6
(1.40)
64.1
(2.52)
79.1
(3.11)
40.6
(1.60)
25.6
(1.01)
∅ 22.2
(0.88)
∅ 22.2
(0.88)
Frame A Frame B
U.S. Allen-Bradley Drives Technical Support
T
el: (1) 262.512.8176, Fax: (1) 262.512.2222, Email: support@drives.ra.rockwell.com, Online: www.ab.com/support/abdrives
