PowerFlex 70 Dimensions 1-9

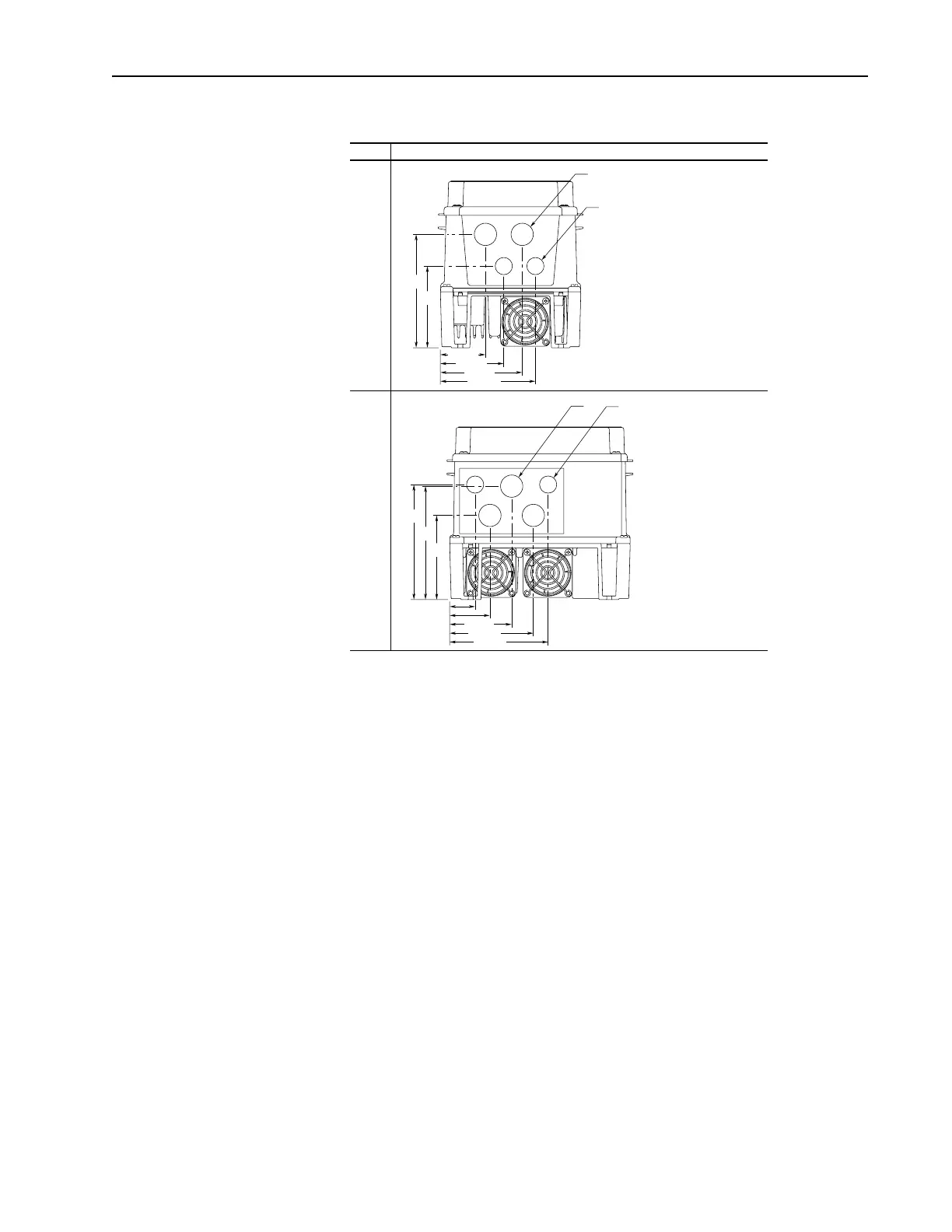

Figure 1.3 PowerFlex 70 IP66 (NEMA Type 4X/12) Bottom View Dimensions
Frame Dimensions in millimeters and (inches)
B
D
55.2 (2.17)
77.3 (3.04)
99.6 (3.92)
115.9 (4.56)
99.6
(3.92)
138.2
(5.44)
28.3
(1.11)
22.1
(0.87)
31.0 (1.22)
49.1 (1.93)
75.5 (2.97)
102.0 (4.02)
120.1 (4.73)
102.9
(4.05)
138.6
(5.46)
140.5
(5.53)
28.3
(1.11)
22.1
(0.87)

Allen-Bradley powerflex 700 Specifications

General

Series	PowerFlex 700
Category	AC Drive
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Enclosure	Type 1
Control Method	Sensorless Vector
Communication	EtherNet/IP, ControlNet, DeviceNet, PROFIBUS DP, Modbus
