Allen-Bradley powerflex 700 Reference Manual

3-10 Evaluating the Internal Resistor

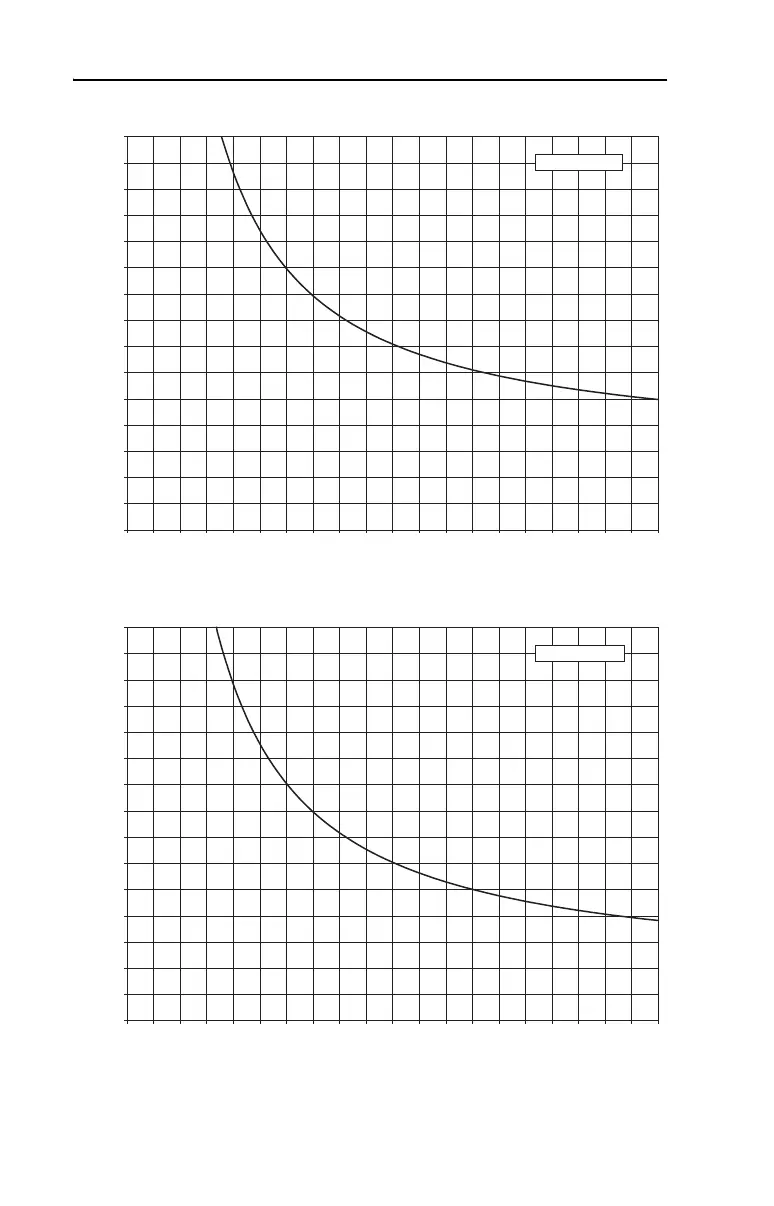

Figure 3.14 PowerFlex 700 – 480 Volt, Frame 1
Figure 3.15 PowerFlex 700 – 480 Volt, Frame 2
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
480V Frame 1
Decel Time (Seconds)
% Peak Power
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
480V Frame 2
Decel Time (Seconds)
% Peak Power

Allen-Bradley powerflex 700 Specifications

General

Series	PowerFlex 700
Category	AC Drive
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Enclosure	Type 1
Control Method	Sensorless Vector
Communication	EtherNet/IP, ControlNet, DeviceNet, PROFIBUS DP, Modbus
