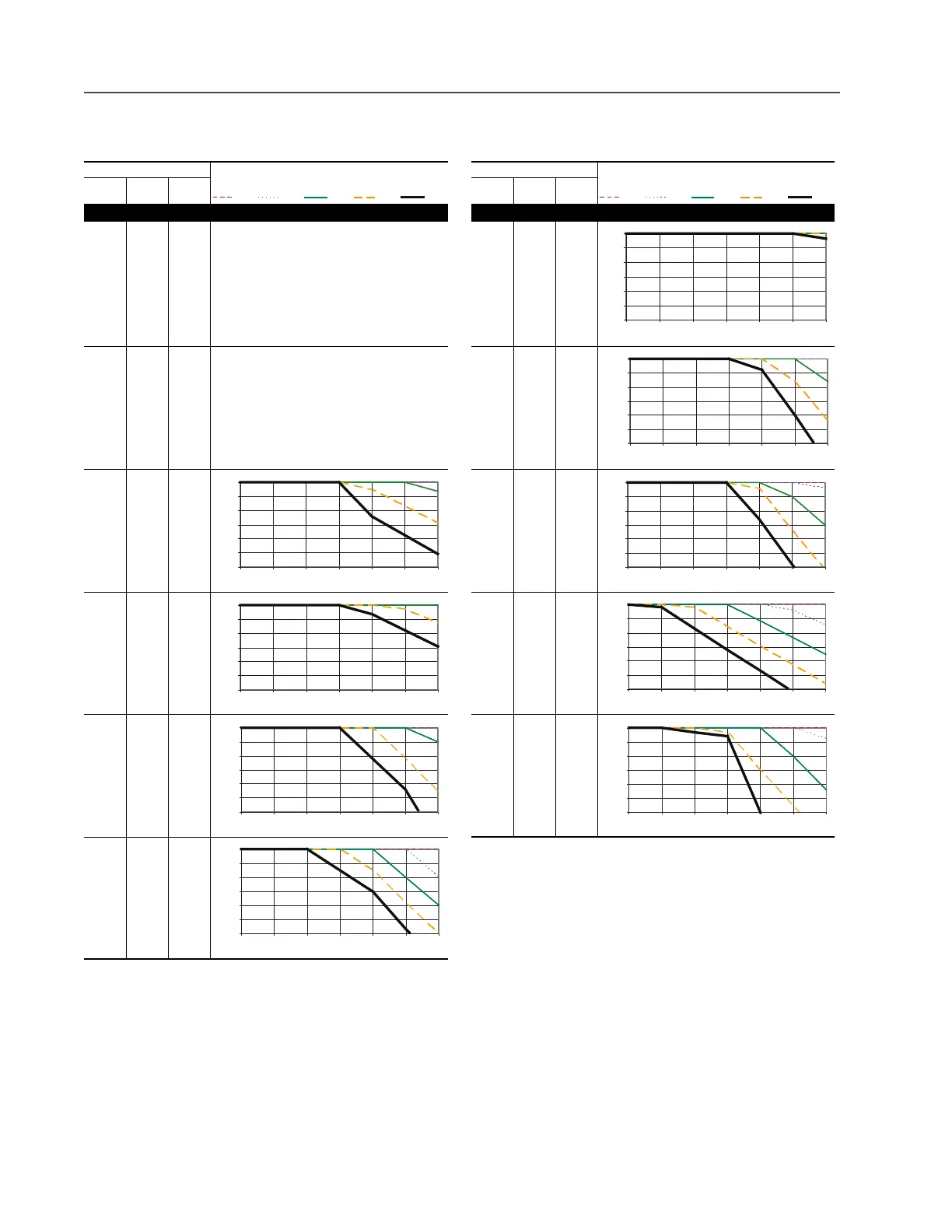

PowerFlex 700 Technical Data
76 20B-TD001F-EN-P
Ambient Temperature/Load
240V AC
Power Rating
Derating
Power Rating
Derating
ND Hp HD Hp
Cont.
Amps ND Hp HD Hp
Cont.
Amps
240 Volt 240 Volt
0.5…5.0 0.33…3.0 2.2…15.3 None 7.5 5.0 22
10…15 7.5…10 28…42 None 20 15 52
25 20 70 30 25 80
40 30 104 (80) 50 40 130 (104)
60 50 154 (130) 75 60 192 (154)
100 75 260 (205)
2 kHz 4 kHz
6 kHz
8 kHz 10 kHz 2 kHz 4 kHz
6 kHz
8 kHz 10 kHz
20
25
30
35
40
45
50
40 50 60 70 80 90 100
% of Rated Continuous Current
Max Ambient Temp (
°
C)
20
25
30
35
40
45
50
40 50 60 70 80 90 100
% of Rated Continuous Current
Max Ambient Temp (
°
C)
20
25
30
35
40
45
50
40 50 60 70 80 90 100
% of Rated Continuous Current
Max Ambient Temp (
°
C)
20
25
30
35
40
45
50
40 50 60 70 80 90 100
% of Rated Continuous Current
Max Ambient Temp (
°
C)
20
25
30
35
40
45
50
40 50 60 70 80 90 100
% of Rated Continuous Current
Max Ambient Temp (
°
C)
20
25
30
35
40
45
50
40 50 60 70 80 90 100
% of Rated Continuous Current
Max Ambient Temp (
°
C)
20
25
30
35
40
45
50
40 50 60 70 80 90 100
% of Rated Continuous Current
Max Ambient Temp (
°
C)
20
25
30
35
40
45
50
40 50 60 70 80 90 100
% of Rated Continuous Current
Max Ambient Temp (
°
C)
20
25
30
35
40
45
50
40 50 60 70 80 90 100
% of Rated Continuous Current
Max Ambient Temp (
°
C)
