PowerFlex 700 Technical Data
48 20B-TD001F-EN-P

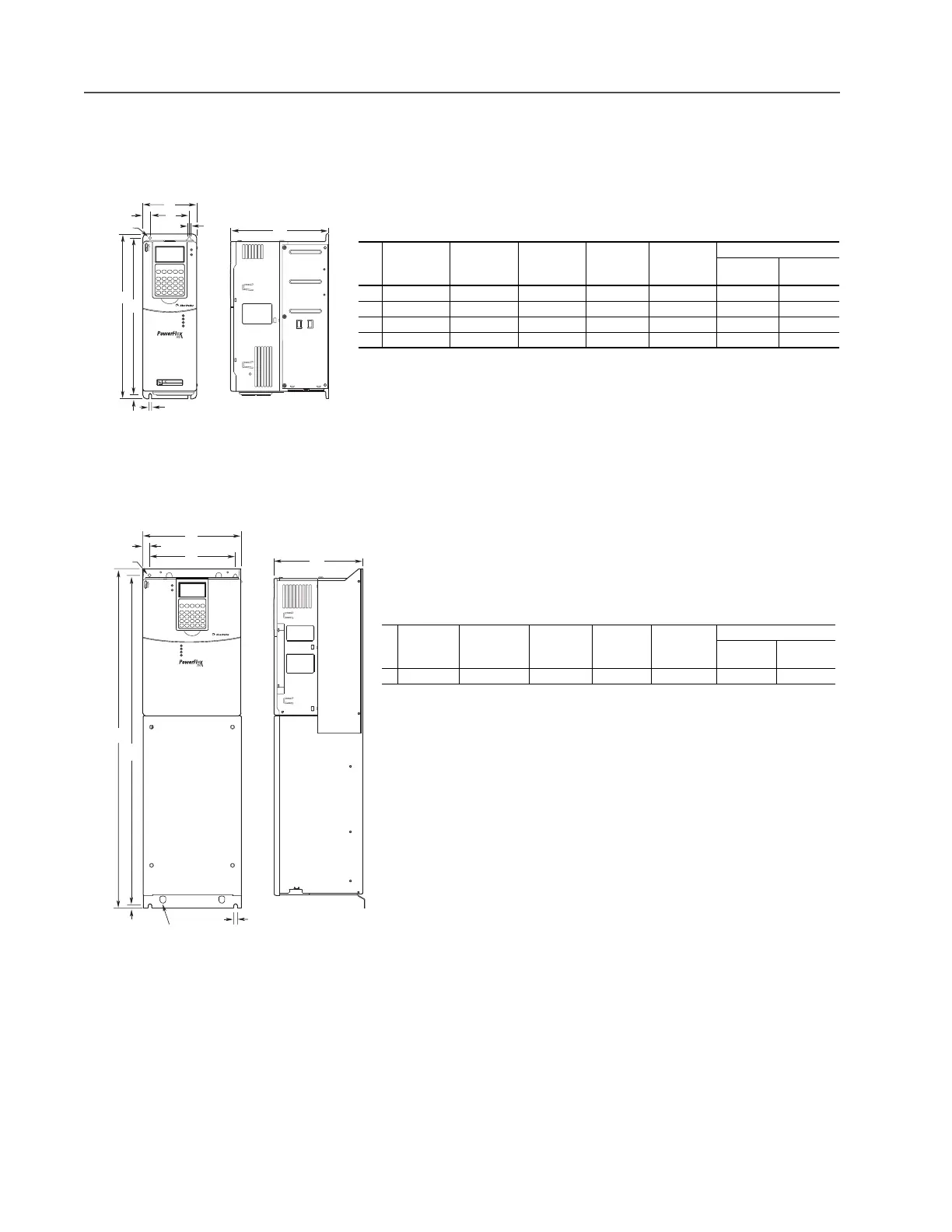

Approximate Dimensions
Frames 0…3 (0 Frame Shown)
Dimensions are in millimeters and (inches).
Frame 4
Dimensions are in millimeters and (inches)
C
A
D
15.0 (0.59)
5.8 (0.23) dia.
see below
E
8.0
(0.31)
5.5 (0.22) - Frames 0-1
7.0 (0.28) - Frames 2-3
3 Places
B
HOT surfaces can cause severe burns
CAUTION
Frame
(1)
(1)
Refer to page 47 for frame information.
ABCDE
Weight
(2)
kg (lbs.)
(2)
Weights include HIM and Standard I/O.
Drive
Drive &
Packaging
0 110.0 (4.33) 336.0 (13.23) 200.0 (7.87) 80.0 (3.15) 320.0 (12.60) 5.22 (11.5) 8.16 (18)
1 135.0 (5.31) 336.0 (13.23) 200.0 (7.87) 105.0 (4.13) 320.0 (12.60) 7.03 (15.5) 9.98 (22)
2 222.0 (8.74) 342.5 (13.48) 200.0 (7.87) 192.0 (7.56) 320.0 (12.60) 12.52 (27.6) 15.20 (33.5)
3 222.0 (8.74) 517.5 (20.37) 200.0 (7.87) 192.0 (7.56) 500.0 (19.69) 18.55 (40.9) 22.68 (50)
C
E
8.0
(0.31)
B
7.0 (0.28) dia.
7.0 (0.28)
3 Places
A
D
15.0 (0.59)
Lifting Holes
4 Places
Frame
(1)
(1)
Refer to page 47 for frame information.
A (Max.) BC (Max.) DE
Approx. Weight
(2)
kg (lbs.)
(2)
Weights include HIM and Standard I/O.
Drive
Drive &
Packaging
4 220.0 (8.66) 758.8 (29.87) 201.7 (7.94) 192.0 (7.56) 738.2 (29.06) 24.49 (54.0) 29.03 (64.0)

Allen-Bradley powerflex 700 Specifications

General

Series	PowerFlex 700
Category	AC Drive
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Enclosure	Type 1
Control Method	Sensorless Vector
Communication	EtherNet/IP, ControlNet, DeviceNet, PROFIBUS DP, Modbus
