4 Rockwell Automation Publication PFLEX-IN015A-EN-P - March 2005
PowerFlex 700S and 700H Fan Inverter Upgrade Kit (Frame 9)
Step 2: Removing Covers
from the Drive

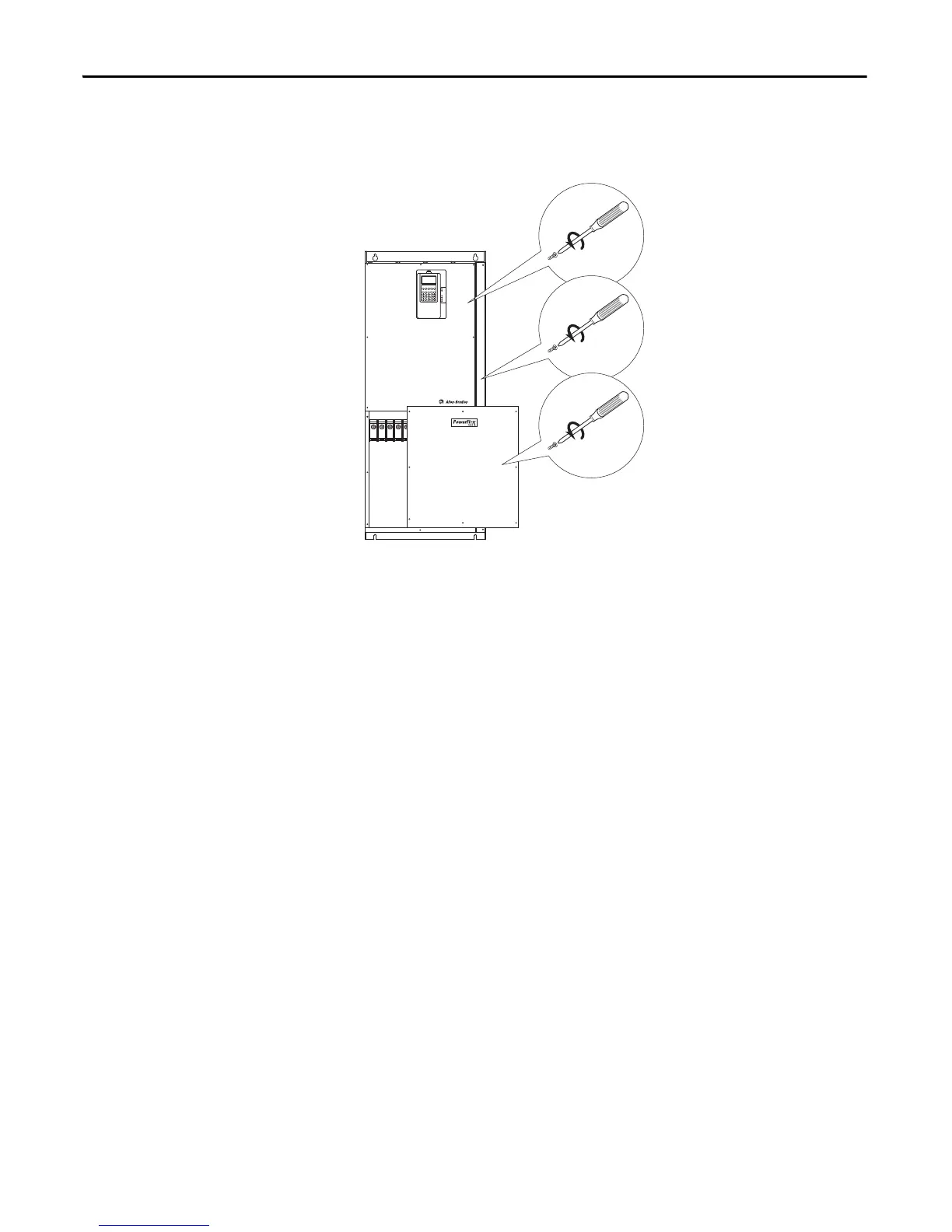

Remove the M4x8 POZIDRIV
®
screws, which secure the covers to the drive, and
then remove the covers. Proper tightening torque for reassembly is 3 N•m (27
lb•in).
POZIDRIV is a registered trademark of Phillips Screw Company
(8 Screws)
(3 Screws)
L1 L2 L3 L1 L2 L3 U/T1 V/T2 W/T3 U/T1 V/T2 W/T3
(8 Screws)
To Next Page
