Allen-Bradley PowerFlex 753 User Manual

Rockwell Automation Publication 750-QS001A-EN-P - March 2015 25
Reference Section

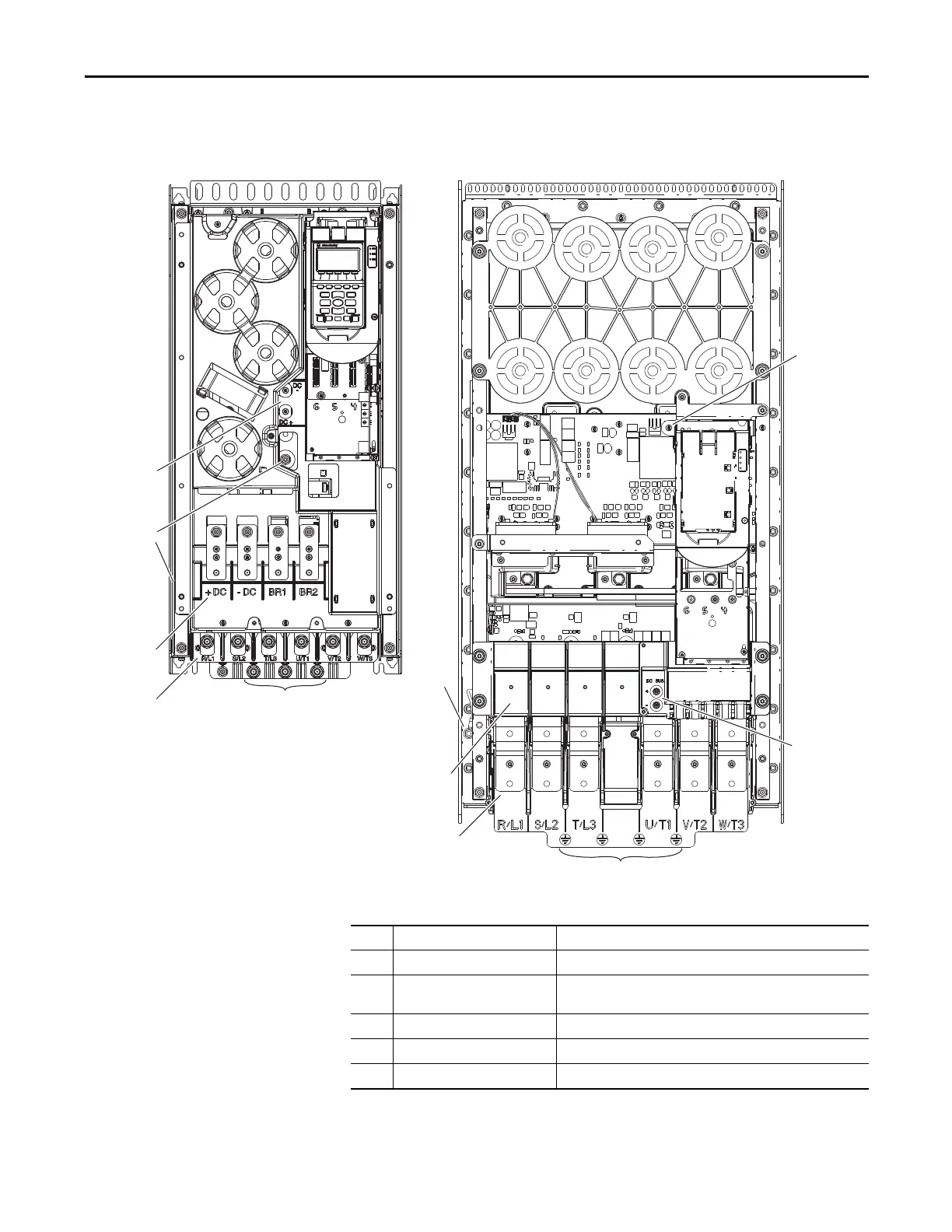

Wall Mount Frames 6 and 7 Power Terminal and Termination Point Locations
(1)
(4)
(4)
(3)
(1)
(2)
(5)
(3)
(4)
(5)
(2)
Wall Mount Frame 6 Wall Mount Frame 7
400/480V drives shown.
No. Name Description
(1) Power Terminals R/L1, S/L2, T/L3, U/T1, V/T2, W/T3
(2) PE Grounding Studs Terminating point to chassis ground for incoming AC line and motor
shield
.
(3) DC Bus and Brake Terminals +DC, -DC, BR1, BR2 (Optional)
(4) PE-A and PE-B MOV and CMC Jumpers
(5) DC+ and DC- Bus Voltage Test Points

Allen-Bradley PowerFlex 753 Specifications

General

Output Voltage	0 to input voltage
Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m (3300 ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC
Horsepower	1 to 250 HP
Enclosure	NEMA/UL Type 1, 12, IP20, IP30, IP54
Communications	EtherNet/IP, DeviceNet, ControlNet
Control Method	Sensorless Vector Control, V/Hz Control
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
