Allen-Bradley PowerFlex 753 User Manual

Rockwell Automation Publication 750-QS001A-EN-P - March 2015 27
Reference Section

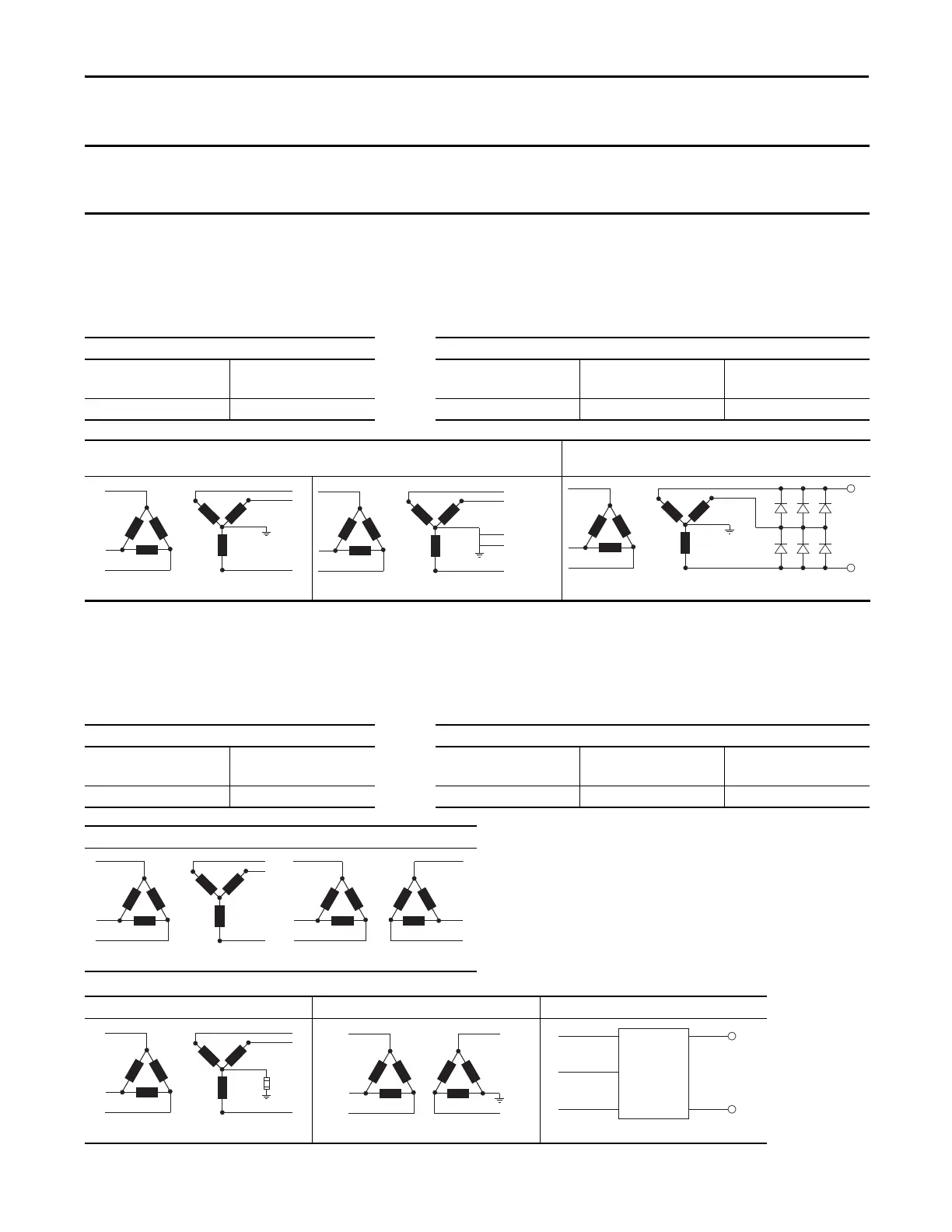

Power Jumpers
Solid Ground Power Sources
Jumper Configuration for solid ground power sources.
Non-Solid Ground Power Sources
Jumper Configuration for non-solid ground power sources.
IMPORTANT
PowerFlex 750-Series drives, frames 1…7, leave the factory with jumpers PE-A and PE-B in one of two possible configurations.
PowerFlex 750-Series drives, frames 8…10, leave the factory with jumpers PE-A1, PE-A2, and PE-B in one of two possible
configurations. Reconfigure these jumpers based on the power source type available.
Frames 1…7 Frames 8…10
Jumper PE-A
(MOV / Input Filter Caps)
Jumper PE-B
(DC Bus Common Mode Caps)
Jumper PE-A1
(MOV)
Jumper PE-A2
(Input Filter Caps)
Jumper PE-B
(DC Bus Common Mode Caps)
Connected Connected Connected Connected Connected
AC Fed Solidly Grounded DC fed from passive rectifier
that has a Solidly Grounded AC Source
Delta/Wye with Grounded Wye Neutral TN-S Five-wire System Delta/Wye with Grounded Wye Neutral
L1
L2
L3
PEN or N
PE
+
-
DC
Frames 1…7 Frames 8…10
Jumper PE-A
(MOV / Input Filter Caps)
Jumper PE-B
(DC Bus Common Mode Caps)
Jumper PE-A1
(MOV)
Jumper PE-A2
(Input Filter Caps)
Jumper PE-B
(DC Bus Common Mode Caps)
Disconnected Disconnected Disconnected Disconnected Disconnected
AC Fed Ungrounded
Ungrounded Secondary
Non-solid Impedance Ground Non-solid B-Phase Ground Any Active Converter/Active Front End
High-resistance Ground Delta/Delta with Grounded Leg
or
+
-
Active
Converter
AFE
DC

Allen-Bradley PowerFlex 753 Specifications

General

Output Voltage	0 to input voltage
Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m (3300 ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC
Horsepower	1 to 250 HP
Enclosure	NEMA/UL Type 1, 12, IP20, IP30, IP54
Communications	EtherNet/IP, DeviceNet, ControlNet
Control Method	Sensorless Vector Control, V/Hz Control
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
