Allen-Bradley PowerFlex 753 - Page 30

30 Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Reference Section
Frames 8…10
PE-A1 Wire Connector
• Torque: 1.8 N•m (16.0 lb•in)
• Tool: T20 Hexalobular
PE-A2 Plug-type Connector
Table 1 - Power Jumper Locations for Frames 1…10 (Continued)

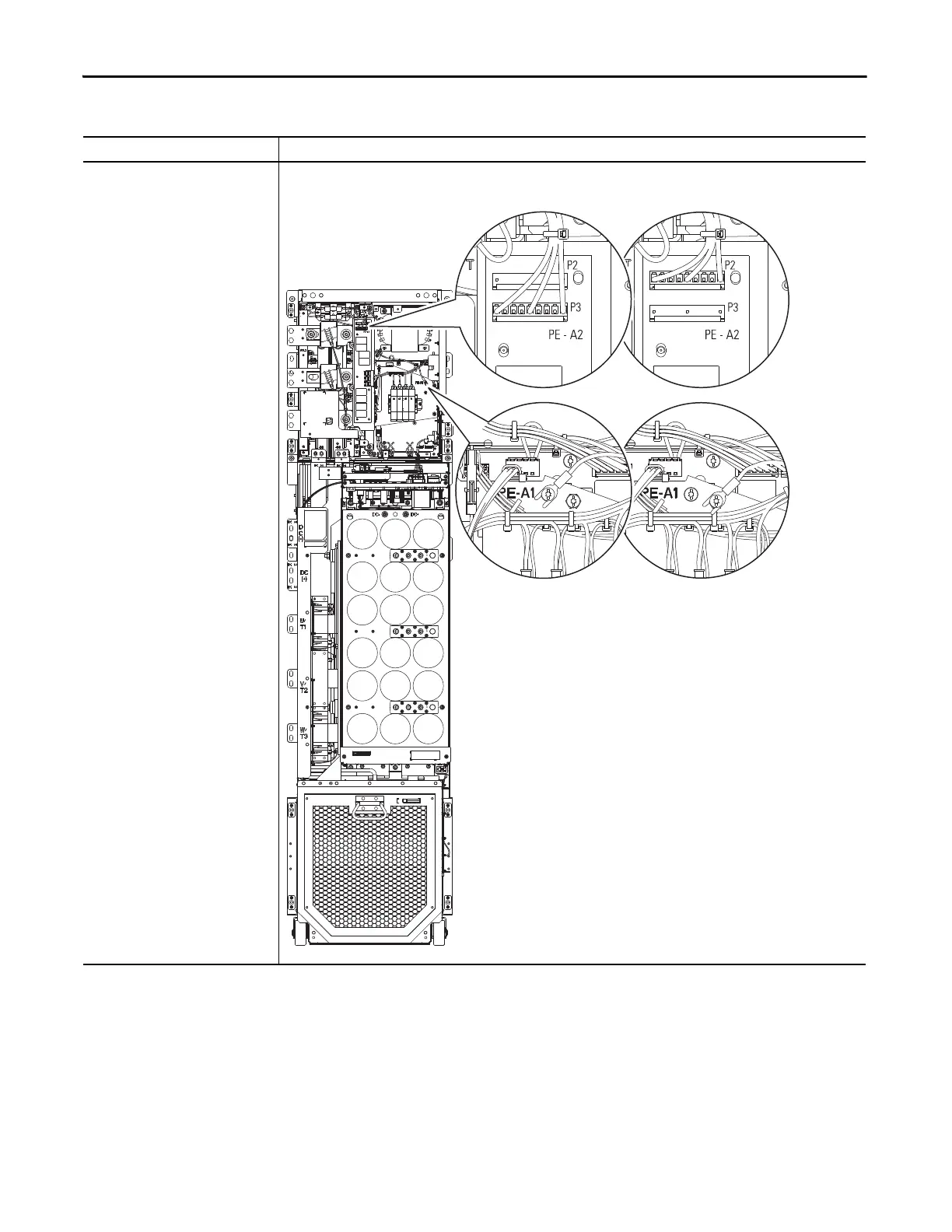

Drive Jumper Locations
DisconnectedConnected
