Allen-Bradley PowerFlex 753 User Manual

42 Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Reference Section

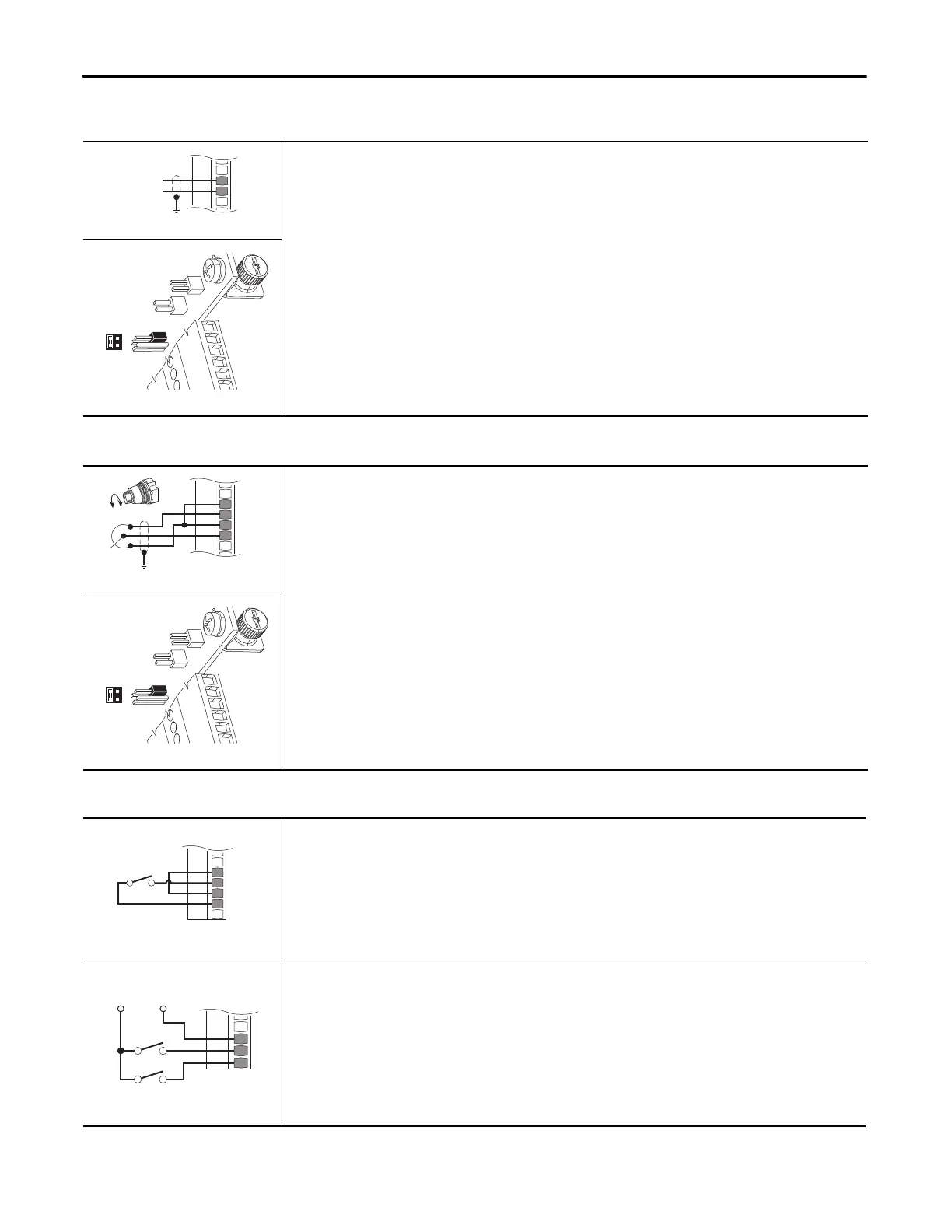

Table 14 - 0…+10V Analog Input - Unipolar Speed Reference
753 Main Control Board TB1
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 “Unipolar”
Set Selection
Port 0: P545 [Spd Ref A Sel] = Port 0: P260 [Anlg In0 Value]
Adjust Scaling
Port 0: P261 [Anlg In0 Hi] = 10 Volt
Port 0: P262 [Anlg In0 Lo] = 0 Volt
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
View Results
Port 0: P260 [Anlg In0 Value]
Port 0: P592 [Selected Spd Ref]
Jumper set to voltage mode.
Ai0–
Ai0+
+
Common
J4
3 1
4 2
Table 15 - 10k Ohm Potentiometer - Unipolar Speed Reference
753 Main Control Board TB1
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 “Unipolar”
Set Selection
Port 0: P545 [Spd Ref A Sel] = Port 0: P260 [Anlg In0 Value]
Adjust Scaling
Port 0: P261 [Anlg In0 Hi] = 10 Volt
Port 0: P262 [Anlg In0 Lo] = 0 Volt
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
View Results
Port 0: P260 [Anlg In0 Value]
Port 0: P592 [Selected Spd Ref]
Jumper set to voltage mode.
10VC
+10V
Ai0–
Ai0+
J4
3 1
4 2
Table 16 - 2-Wire Control on PF753 Main Control Board
Non-Reversing - Internal Supply
753 Main Control Board TB1
Set Direction Mode
Port 0: P308 [Direction Mode] = 2 “Rev Disable”
Set Selection
Port 0: P163 [DI Run] = Port 0: P220 [Digital In Sts], bit 1 = Digital In 1
View Results
Port 0: P220 [Digital In Sts]
Port 0: P935 [Drive Status 1]
Reversing - External Supply
753 Main Control Board TB1
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 “Unipolar”
Set Selection
Port 0: P164 [DI Run Forward] = Port 0: P220 [Digital In Sts], bit 1 = Digital In 1
Port 0: P165 [DI Run Reverse] = Port 0: P220 [Digital In Sts], bit 2 = Digital In 2
View Results
Port 0: P220 [Digital In Sts]
Port 0: P935 [Drive Status 1]
24VC
+24V
Di C
Di 1
Stop-Run
Di C
Di 1
Di 2
+24V
Common
Run Fwd
Run Rev

Allen-Bradley PowerFlex 753 Specifications

General

Output Voltage	0 to input voltage
Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m (3300 ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC
Horsepower	1 to 250 HP
Enclosure	NEMA/UL Type 1, 12, IP20, IP30, IP54
Communications	EtherNet/IP, DeviceNet, ControlNet
Control Method	Sensorless Vector Control, V/Hz Control
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
