Drive Setup – Auto Tune and Configuration Parameters
Use the settings below to auto tune the drive, and configure certain parameters for the lab.
Connect to the Drive using Connected Components Workbench

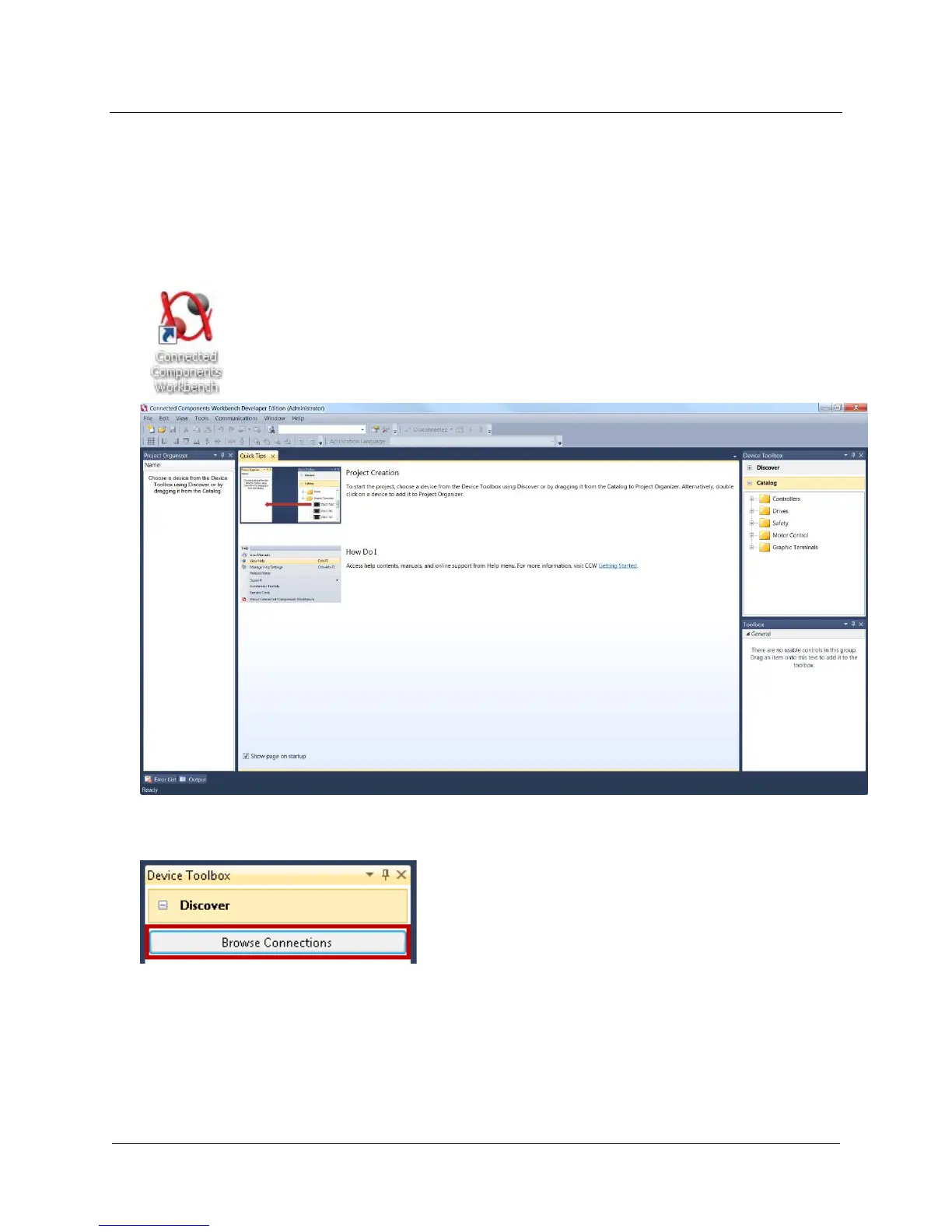

1. Open Connected Components Workbench using the icon on the desktop.
2. In the Device Toolbox expand Discover, then click Browse Connections in the Device Toolbox to open the
Connection Browser.
3. Browse to AB_ETH-1, Ethernet, and select 192.168.1.30, PowerFlex 755.
CCW will now connect to the drive, showing its information in the main pane of the software window.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
