Chapter 3 Prepare for Installation

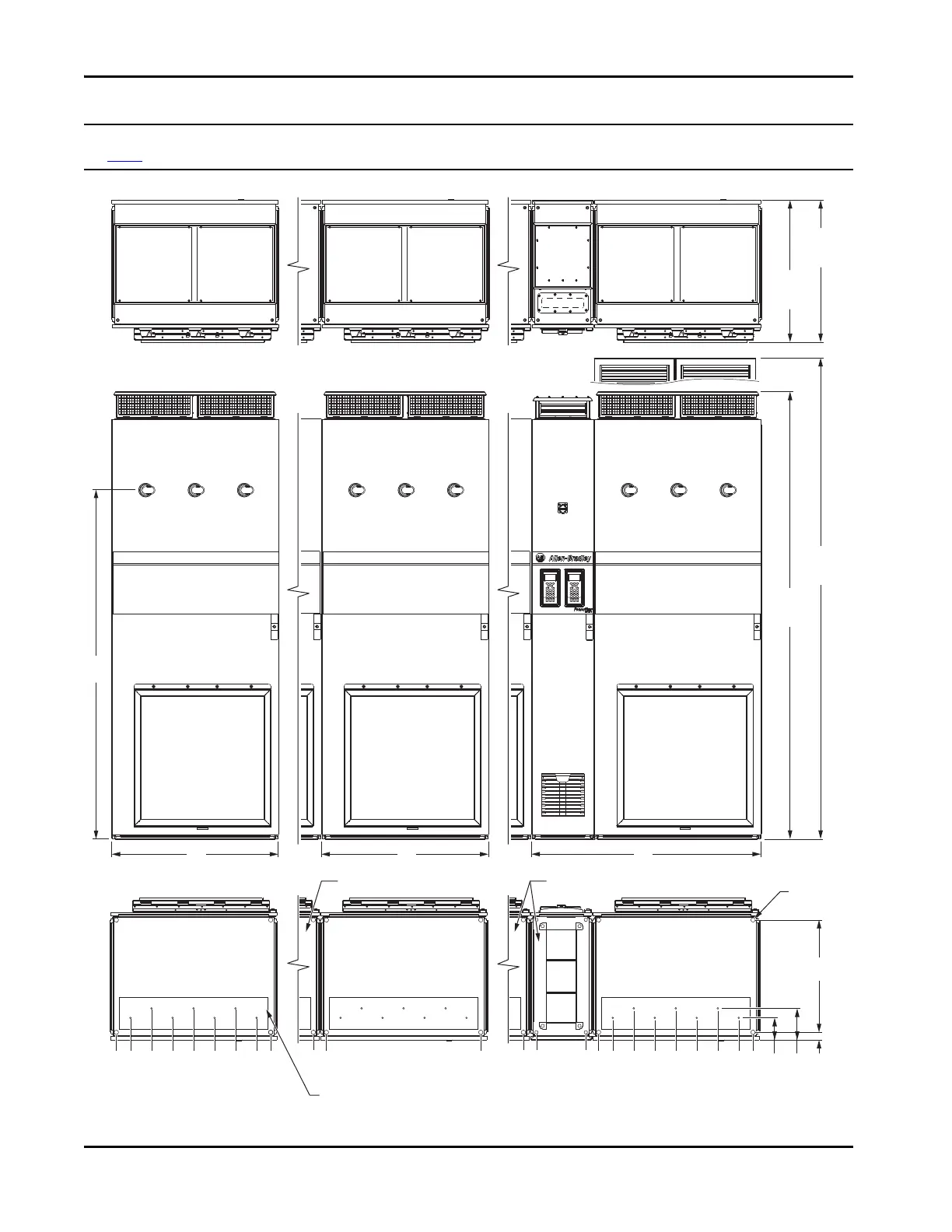

Frame 10 Top, Front, and Bottom Views - Dimensions are mm (in.)
See page 57
for optional exit wire bay dimensions.
65 (2.6)
0 (0)
235 (9.3)
68 (2.7)
168 (6.6)
268 (10.6) 368 (14.5) 468 (18.4) 568 (22.4) 668 (26.3) 368 (14.5) 468 (18.4) 568 (22.4) 668 (26.3) 768 (30.2) 868 (34.2) 968 (38.1)
0 (0)
735 (28.9)
0 (0)
735 (28.9)
300 (11.8)
1035 (40.7)
IP21, UL Type 1
2132
(83.9)
IP54, UL Type 12
2291
(90.2)
IP21, UL Type 1
676
(26.6)
IP54, UL Type 12
721
(28.4)
65 (2.6)
1661
(65.4)
1100
(43.3)
800
(31.5)
800
(31.5)
36
(1.4)
150
(5.9)
105
(4.1)
535
(21.1)
Adjacent enclosure Adjacent enclosure and control bay
Mounting Holes
Motor Cables - Bottom Exit
(Plate is marked with recommended gland or conduit hole pattern.)
Power BayControl Bay
