Allen-Bradley PowerFlex 755TM Installation Instructions

Rockwell Automation Publication 750-IN100B-EN-P - July 2017 43
Prepare for Installation Chapter 3

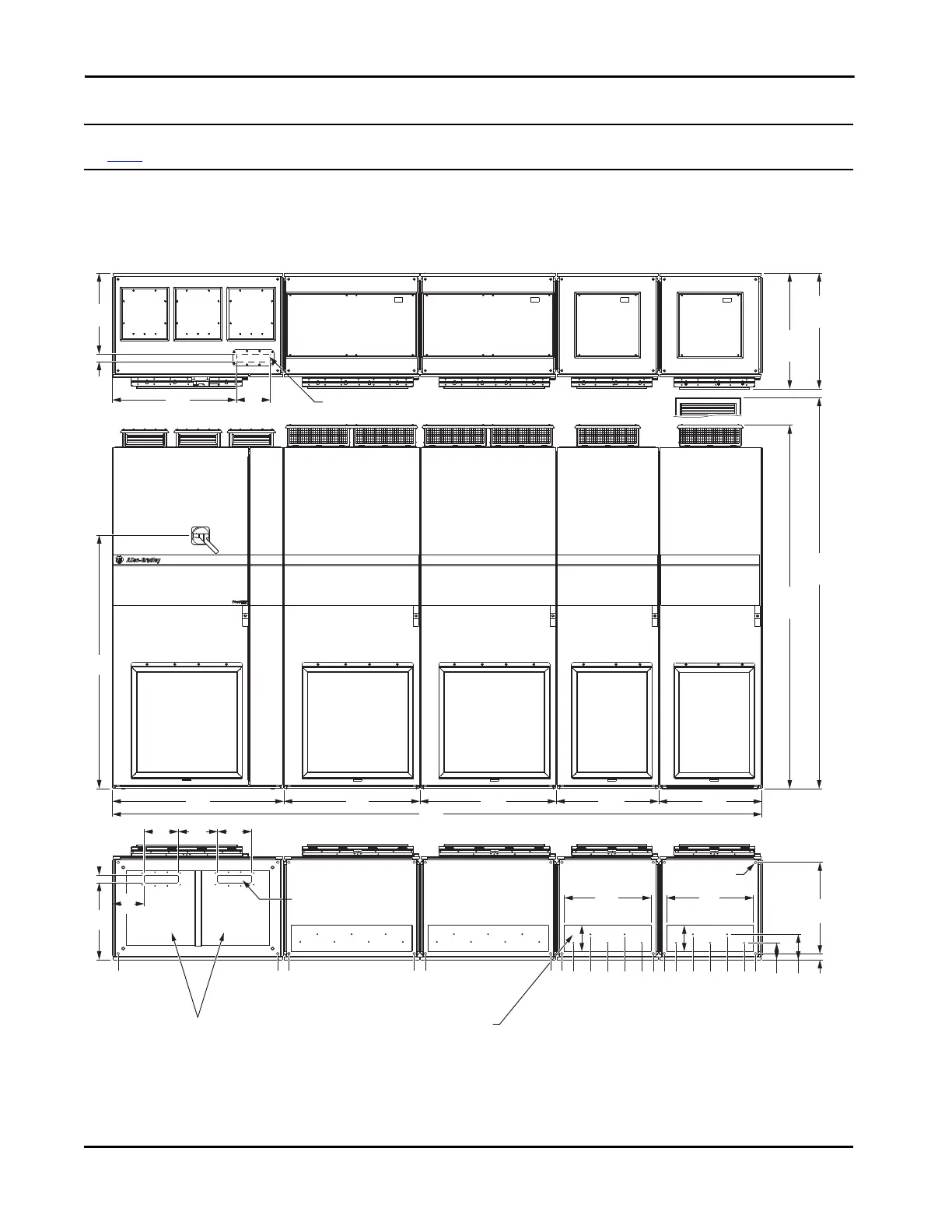

Frame 11 Drives Top, Front, and Bottom Views - Dimensions are mm (in.)
See page 45
for optional exit wire bay dimensions.
3806
(149.8)
1000
(39.4)
800
(31.5)
0 (0)
935 (36.8)
450
(17.7)
45
(1.8)
200
(7.9)
200
(7.9)
230
(9.1)
186
(7.3)
1481
(58.3)
200
(7.9)
726
(28.6)
473
(18.6)
45
(1.8)
3735 (147.0) 3200 (126.0) 3468 (136.5) 3568 (140.5) 3668 (144.4)
3268 (128.7) 3368 (132.6)
3135 (123.4) 2868 (112.9) 2968 (116.9) 3068 (120.8)
2668 (105.0) 2768 (109.0)
600
(23.6)
509
(20.0)
153
(6.0)
509
(20.0)
153
(6.0)
IP21, UL Type 1
2132
(83.9)
IP54, UL Type 12
2291
(90.2)
IP21, UL Type 1
676
(26.6)
IP54, UL Type 12
721
(28.4)
600
(23.6)
800
(23.6)
2600 (102.4)
2535 (99.8) 1800 (70.9) 1735 (68.3) 1000 (39.4)
36
(1.4)
150
(5.9)
105
(4.1)
535
(21.1)
Power BayInput Bay Power Bay Power Bay
Signal Cables - Top Entry
Motor Cables - Bottom Exit
(Plate is marked with recommended gland
or conduit hole pattern.)
Power Bay
Control Cables - Bottom Entry
Power Cables - Bottom Entry
Mounting Holes
