PowerFlex 750-Series Products with TotalFORCE Control 15

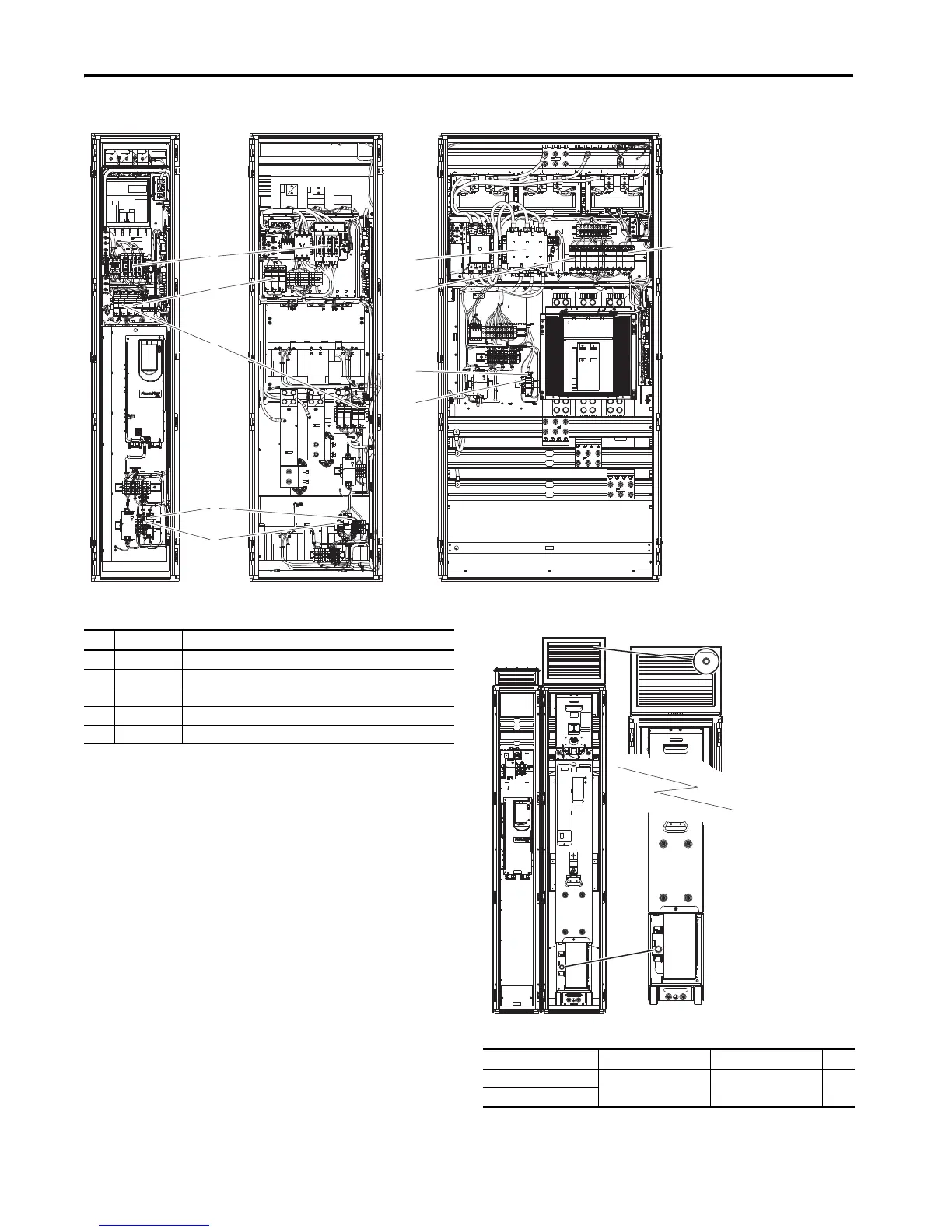

Supplemental Fuse Holder Locations
Power Bay Fan Fuse Holder Locations
1
2
3
4
5
1
2
3
4
5
Frame 8 Frame 9 Frames 10…12
Item Fuse Description
1 FD1 Fused disconnect switch
2
FH1 Control board fuses
3 FH4…7 Control transformer primary fuses
4 FH2 Control transformer 240V secondary distribution fuse
5 FH3 Control transformer 240V secondary distribution fuse
Fan Fuse
Description Cat. No. Specification Qty.
Power and LCL filter module fan SK-RM-INVFAN1-FUSE Class gG - 250V, 3.5 A 1
IP54, UL Type 12 exhaust fan
Exhaust Fan Fuse
IP54, UL Type 12 Enclosure Type
Module Fan Fuse
