Publication 2711-UM014B-EN-P
Installing the PV900/1000 Terminals 10-7
5. Install the 6 mounting clips (2 on top, 2 on bottom, 1 on each
side). The ends of the clips slide into the slots on the terminal.
Tighten the clip mounting screws by hand until the gasket seal
contacts the mounting surface uniformly.
6. Alternately tighten the mounting clip screws to a torque of 10
inch-pounds. Do not over-tighten.
7. Remove the 2 protective labels covering the top vents of the
terminal.
ATTENTION
!
Mounting nuts must be tightened to a torque of
10 inch-pounds to provide a proper seal and to
prevent potential damage to the terminal.
Allen-Bradley assumes no responsibility for
water or chemical damage to the terminal or
other equipment within the enclosure because
of improper installation.
ATTENTION
!
Failure to remove the protective installation
label covering the top vents could result in
overheating and damage to the terminal.

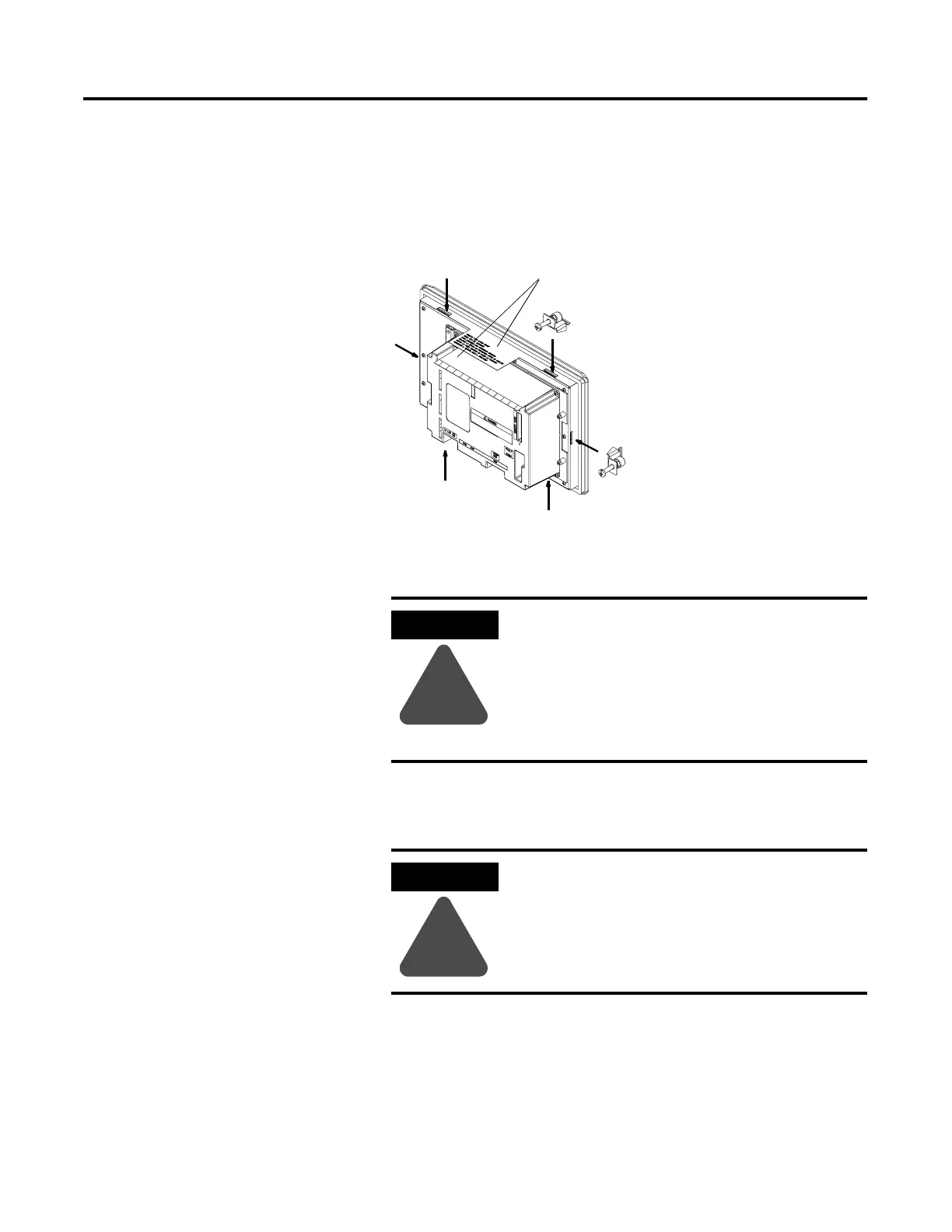

Install 6 mounting clips:
Top - left and right slots
Bottom - left and right slots
Sides - left and right
Protective installation labels
To Next Page
