Publication 2711-UM014B-EN-P
Terminal Connections 12-33
DeviceNet Terminal
Connections
This section describes connections for the DeviceNet PanelView
terminals including:
• DeviceNet connectors
• connections
• typical DeviceNet network
DeviceNet Terminal Ports
The DeviceNet versions of the PanelView terminals (catalog numbers
ending in 10) have a DeviceNet port and an RS-232 serial port.
• Use the DeviceNet port to connect to devices on a DeviceNet
network or transfer applications over a DeviceNet network.
• Use the RS-232 port to transfer applications between a computer
and the terminal using a direct connection or to connect a
printer.
For details on connecting to the RS-232 port, see the last section in
this chapter.

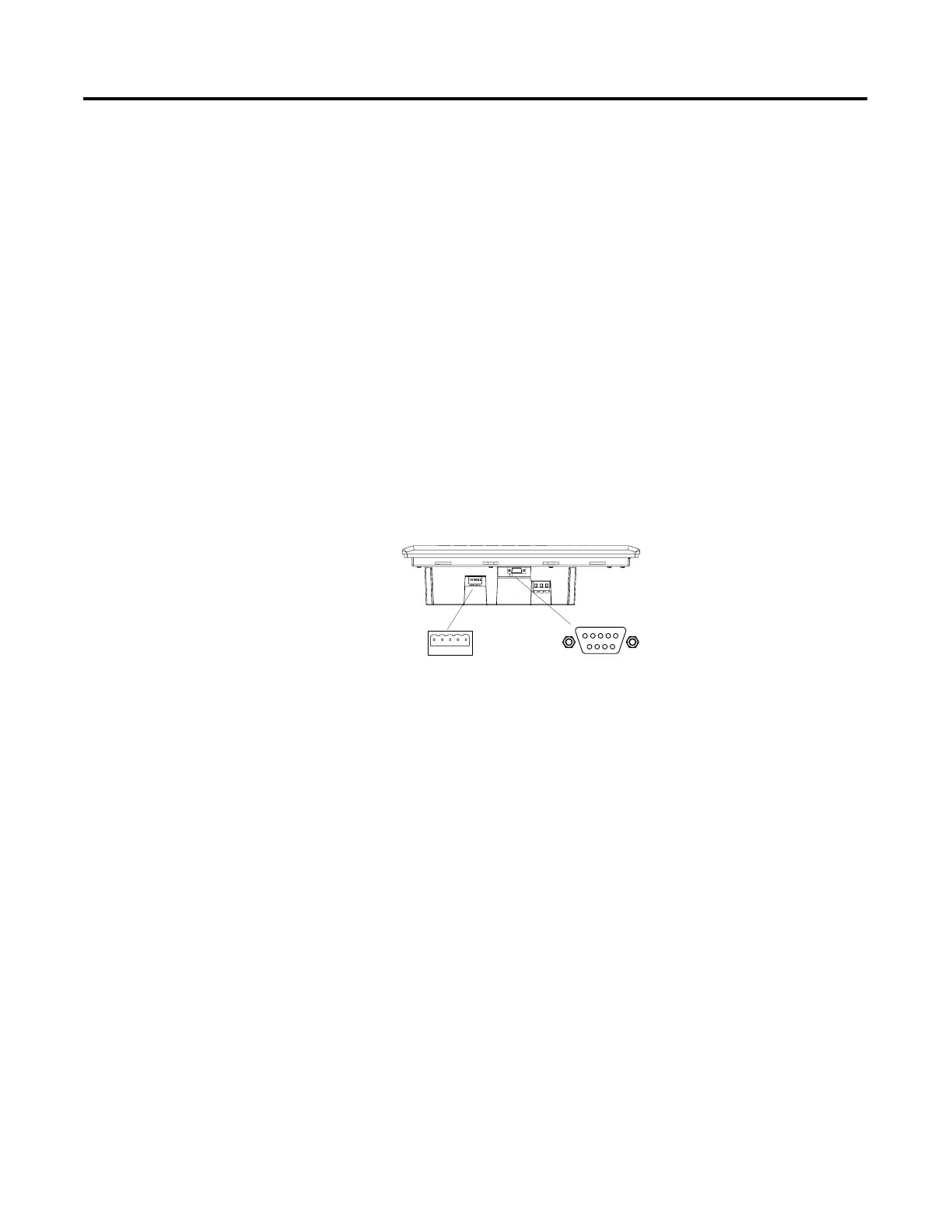

RS-232 Port
DeviceNet Port
PanelView 1000
