Allen-Bradley PV550 User Manual

Publication 2711-UM014B-EN-P
Terminal Connections 12-23

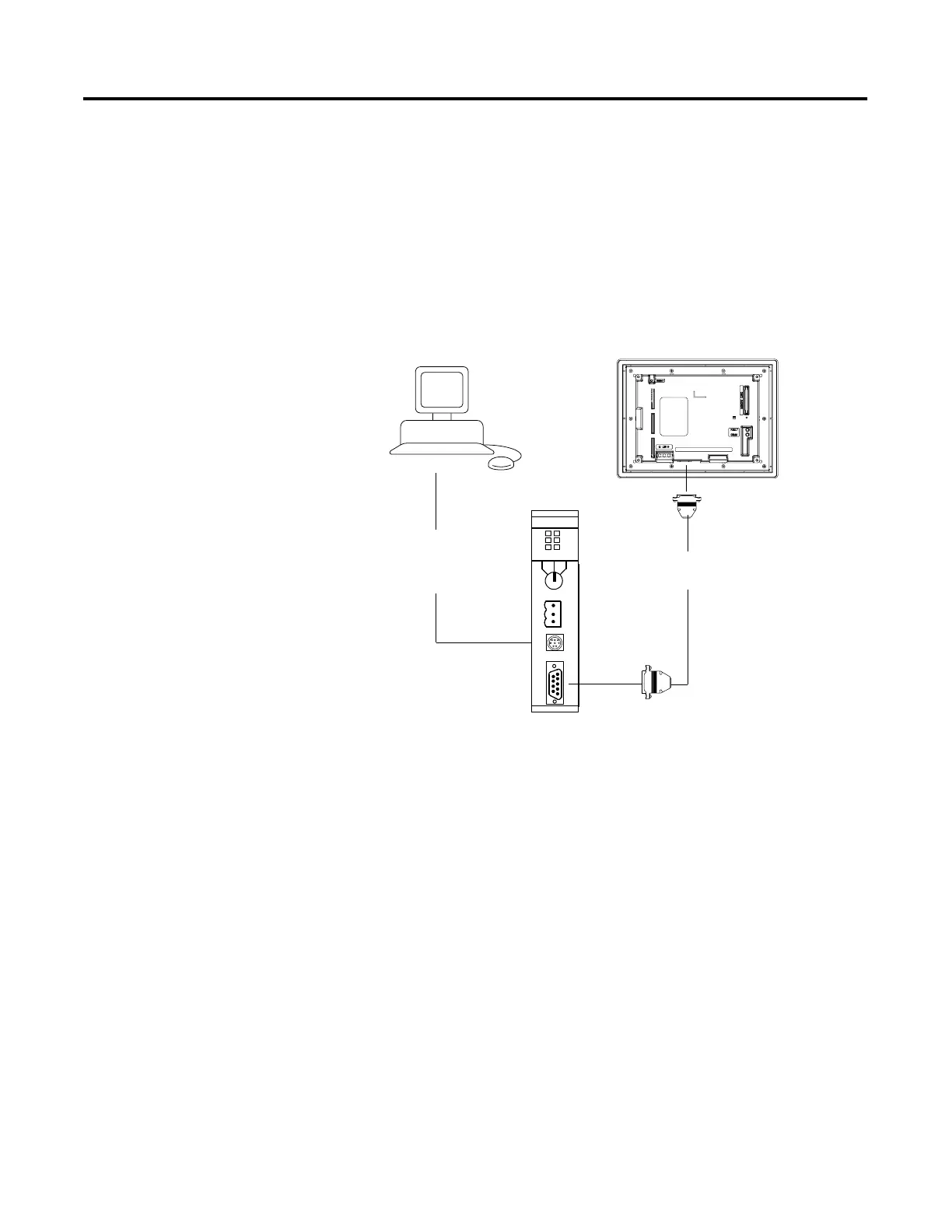

Connecting a DH+ to DH-485 Pass-Through Link
This section shows connections for transferring applications between
a computer on the Allen-Bradley DH+ link and an RS-232 (DH-485)
PanelView terminal, through an SLC 5/04 controller.
The RS-232 (DH-485) Communications port on the terminal connects
to the CH0 port of the controller using one of the cables listed below.
To 1784-KT/B Port
To CH1 Port
To CH0 Port
SLC 5/04 Processor
Cable
Catalog No. 2706-NC13,
2711-NC13, 2711-NC14
DH+ Network Cable
Catalog No. 1784-CP6
or
Catalog No. 1784-CP
with 1784-CP7 Adapter
To RS-232 Communications Port
PanelView 1000
Computer with PanelBuilder32
