Terminal Connections 12-29
Compatible ControlNet Controllers
The ControlNet PanelView terminal communicates with a PLC-5C
(using PCCC commands) or a ControlLogix processor (using CIP
protocol) using unscheduled and scheduled messaging. The following
controllers are supported:
• ControlLogix using 1756-CNB module
• PLC-5/20C, -5/40C, -5/60C, -5/80C
ControlNet Terminal Ports
ControlNet versions of the PanelView terminal (catalog numbers
ending in 15) have a ControlNet communication port and an RS-232
serial port.
• Use the ControlNet port to connect to devices on a ControlNet
network and transfer applications over a ControlNet network.
• Use the RS-232 port to transfer applications between a computer
and the terminal using a direct connection or to connect a
printer.
For details on connecting to the RS-232 port, see the last section in
this chapter.

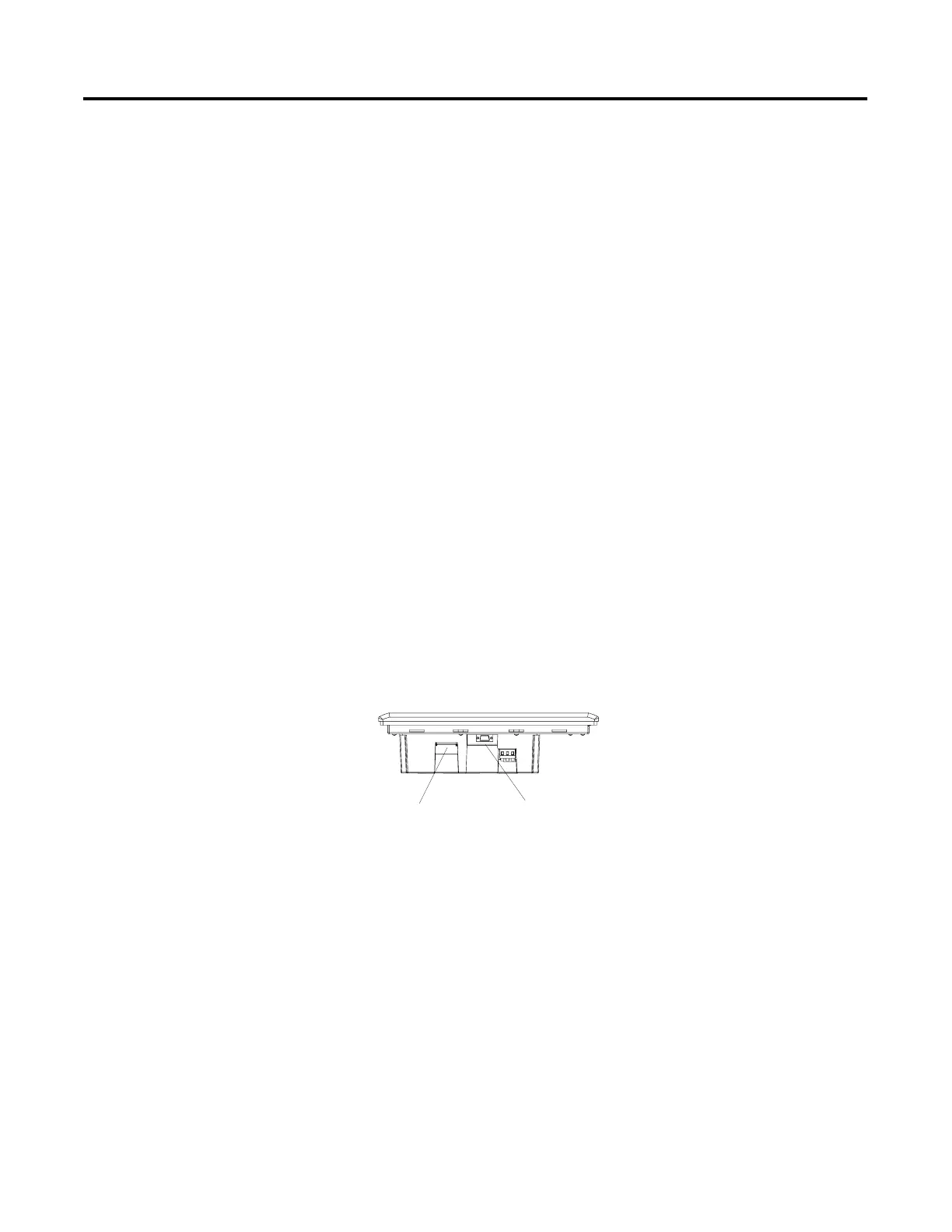

PanelView 1000
ControlNet
Communicatons Port
RS-232 Port
