22 Rockwell Automation Publication PFLEX-AP005B-EN-P - May 2019
Chapter 1 Drive Selection Considerations

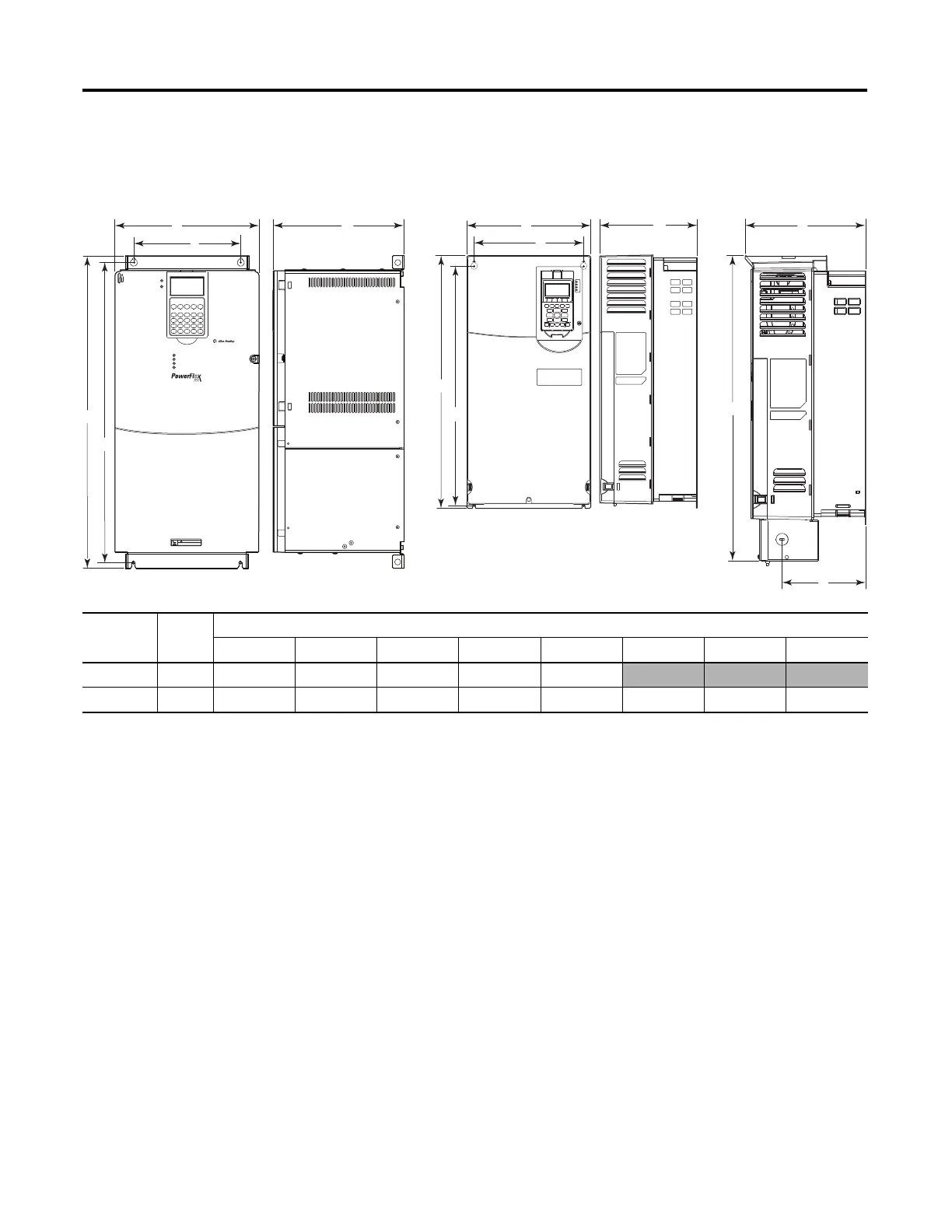

Figure 5 - PowerFlex 700 Frame 5 to PowerFlex 753/755 Frame 5
Dimensions mm (in.)
DriveFrameABCDE FGH
700 5 308.9 (12.16) 225.0 (8.86) 275.4 (10.84) 644.5 (25.37) 625.0 (24.61)
750-Series 5 270.0 (10.63) 238.0 (9.37) 212.0 (8.35) 550.0 (21.65) 531.0 (20.91) 222.7 (8.77) 665.4 (26.20) 155.0 (6.10)
C
A
B
E
D
F
H
G
HOT surfaces can cause severe burns
CAUTION
C
A
B
E
D
PowerFlex 700 Frame 5 PowerFlex 750-Series Frame 5 PowerFlex 750-Series
Frame 5 w/NEMA 1 Kit
