10. Remove plastic cap on plaster guard (G) by
twisting clockwise.

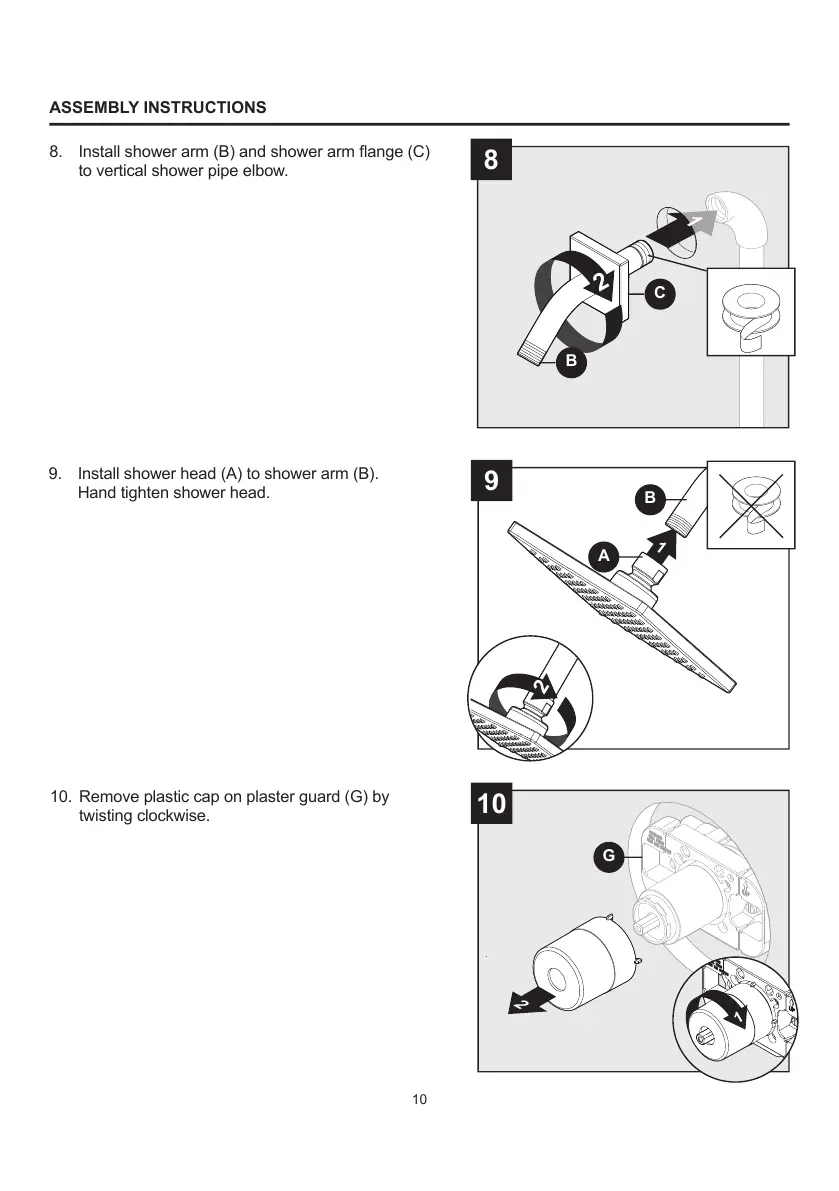

ASSEMBLY INSTRUCTIONS
9. Install shower head (A) to shower arm (B).
Hand tighten shower head.
1
9
2
10
9
10
G
A
B
1
10
8. Install shower arm (B) and shower arm ange (C)
to vertical shower pipe elbow.
8
9
2
all
C
B
all
