Allen + Roth 2564458 - Tub Spout Installation Types

9

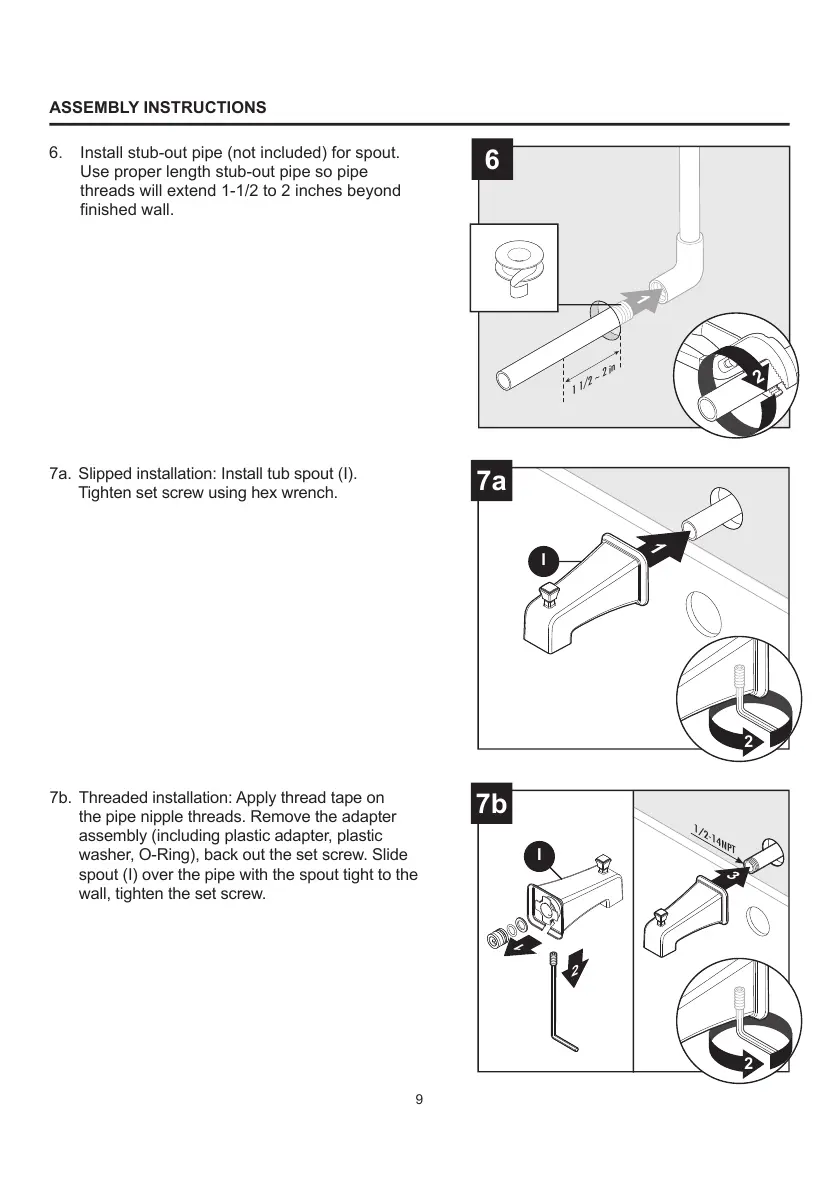

6. Install stub-out pipe (not included) for spout.
Use proper length stub-out pipe so pipe
threads will extend 1-1/2 to 2 inches beyond
finished wall.
7b. Threaded installation: Apply thread tape on
the pipe nipple threads. Remove the adapter
assembly (including plastic adapter, plastic
washer, O-Ring), back out the set screw. Slide
spout (I) over the pipe with the spout tight to the
wall, tighten the set screw.
ASSEMBLY INSTRUCTIONS
7a. Slipped installation: Install tub spout (I).
Tighten set screw using hex wrench.
1
7a
1
3
2
7b
1
6
7a
7b
6
I
I
1 1/2 ~ 2 in
1/2-14NPT
