2-8
SECTION 2
OPERATIONS
053383; 11/10
2.3, continued
Operating Instructions
2.3.3 Steering The Riding Trowel
A slight "feathering motion" forward and backward with the left hand joystick is
required to move the machine in a straight path to the left or right while operating the
right hand joystick. Refer to Figure 2.3.3..
Position Action
1 Forward
2 Reverse
3 Rotate clockwise
4 Rotate counter clockwise
5 Left sideways
6 Right sideways

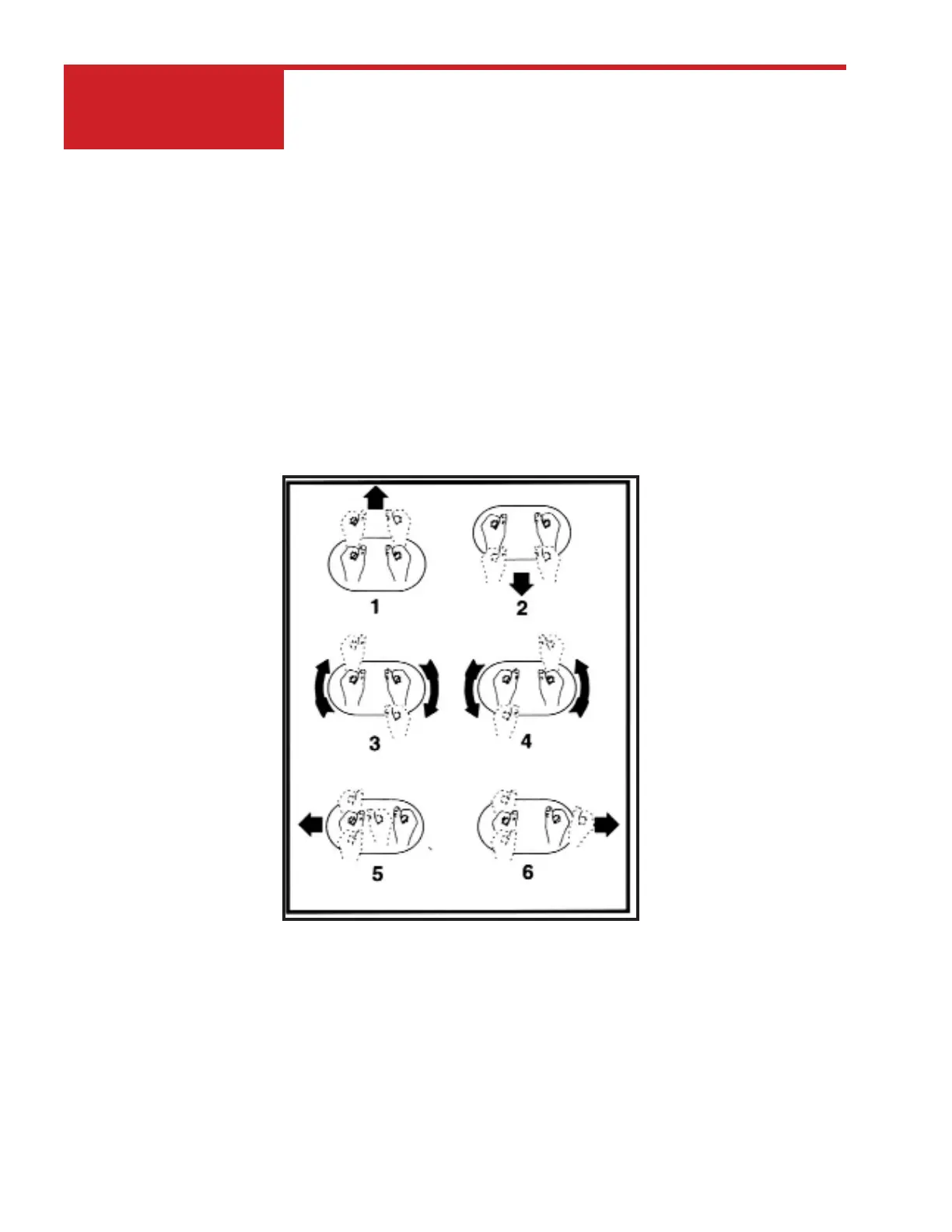

FIGURE 2.3.3
Steering Control Diagram
