SECTION 2
OPERATIONS
2.3, continued
Operating Instructions
2.3.4 Pitch Adjustment
Different pitch angles are needed as you work the different stages of the concrete.
Refer to Figure 2.3.4 table below. When changing or setting pitch (angle of trowel
blades), slow the machine down, set the desired degree of pitch on the left side of the
machine and then adjust the right side to match.
To increase the pitch, turn the pitch control clockwise “
a” use the pitch indicator “b” to
adjust pitch equally on both right and left trowel blades.

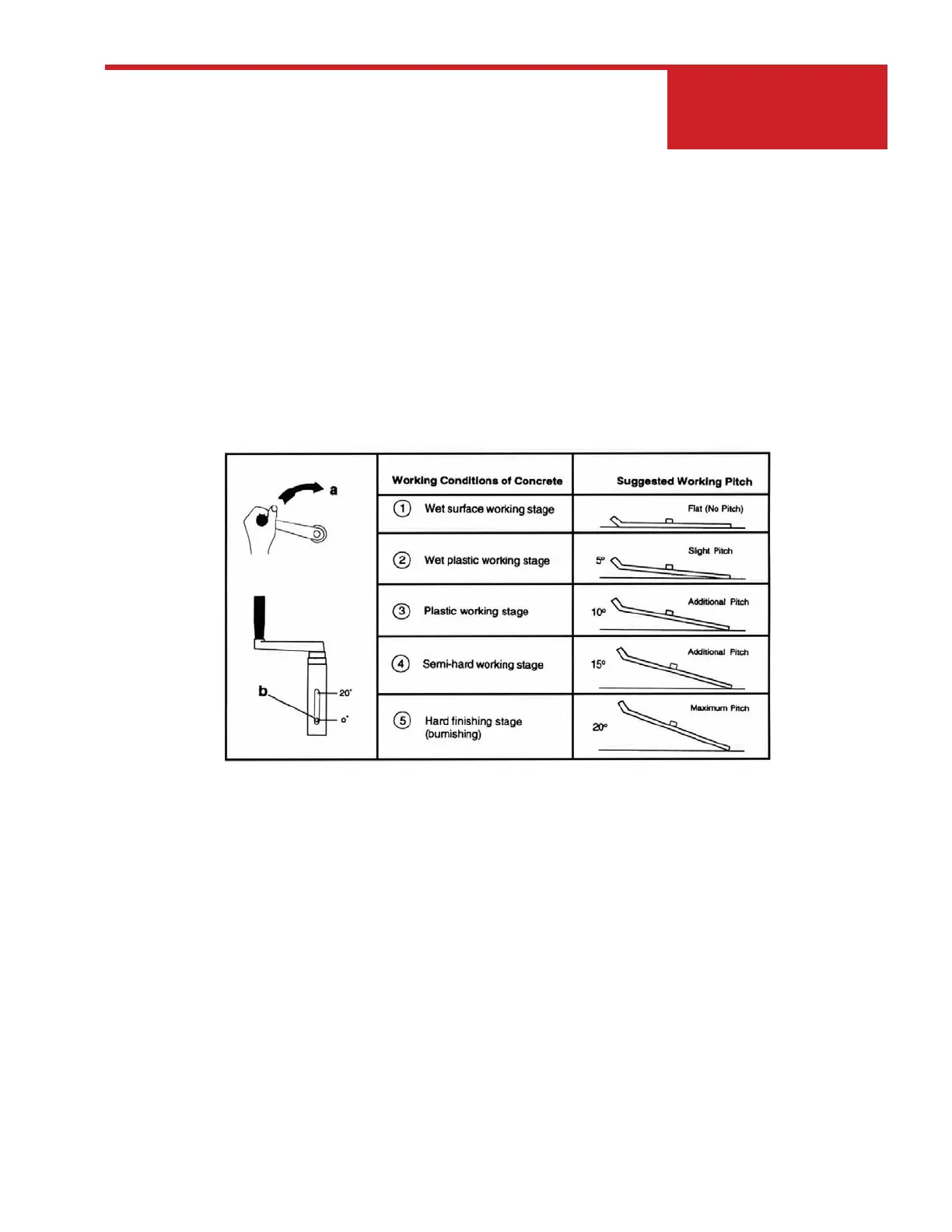

FIGURE 2.3.4
Pitch Adjustment
