Installation
Part No. 70458301ENR7
©
Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 53
1

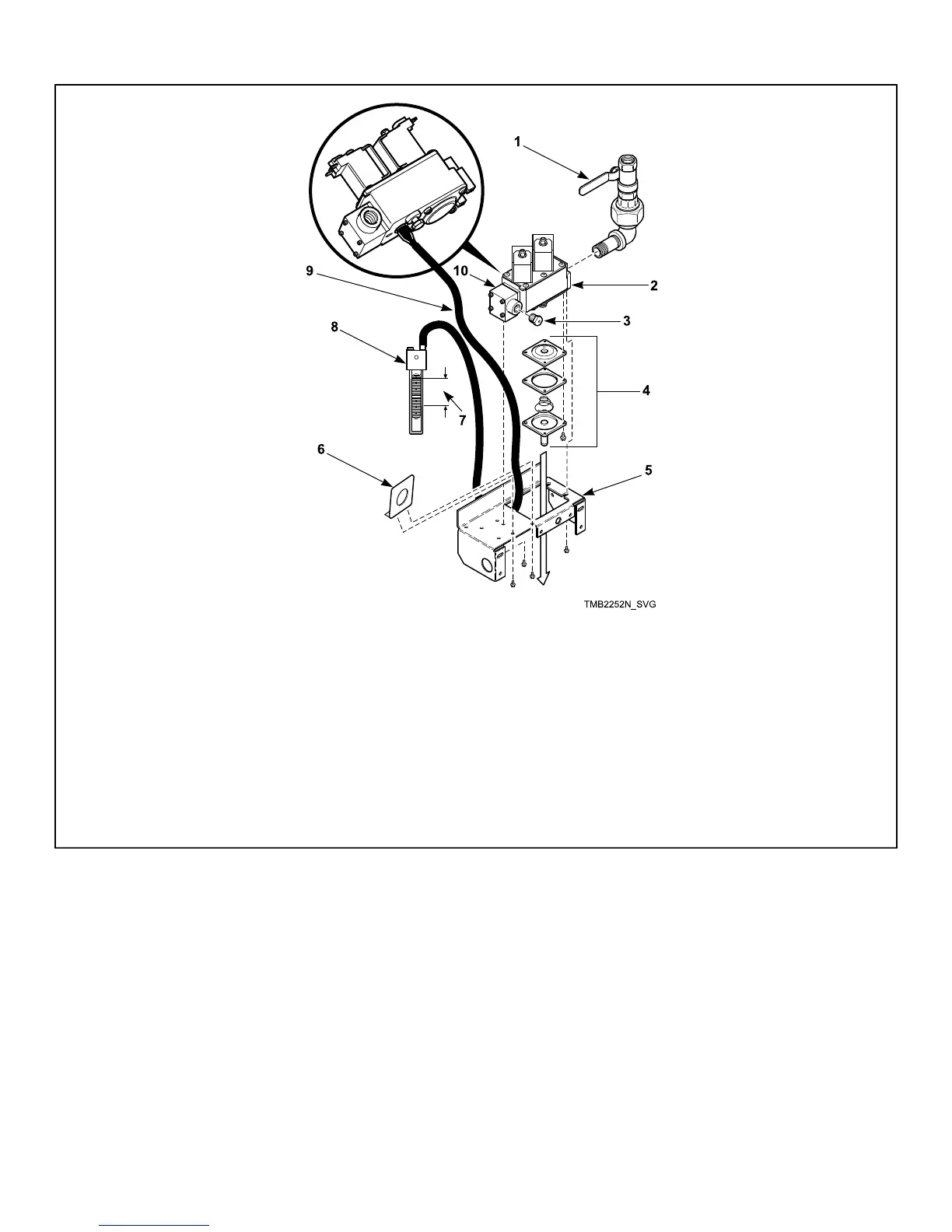

Gas Shut-Off Valve (Shown in closed position) (Not Supplied)
2
Gas Valve
3
Burner Orifice
4
Regulator Adjusting Housing and Gasket (Regulated version shown)
5
Gas Valve Bracket
6
Part No. 70201901 025 Series Natural Gas L.P. Orifice Plate (For use on 025 Series Natural Gas Models L.P. only)
7
Required Burner Manifold Pressure
8
Manometer
9
Connect Over Loosened Slotted Pressure Tap Screw in Bottom of Gas Valve
10
Spud Holder
Figure 15 Models Through 12/31/13
