Allied Systems W3C User Manual

27
Tractor or Skidder Operation

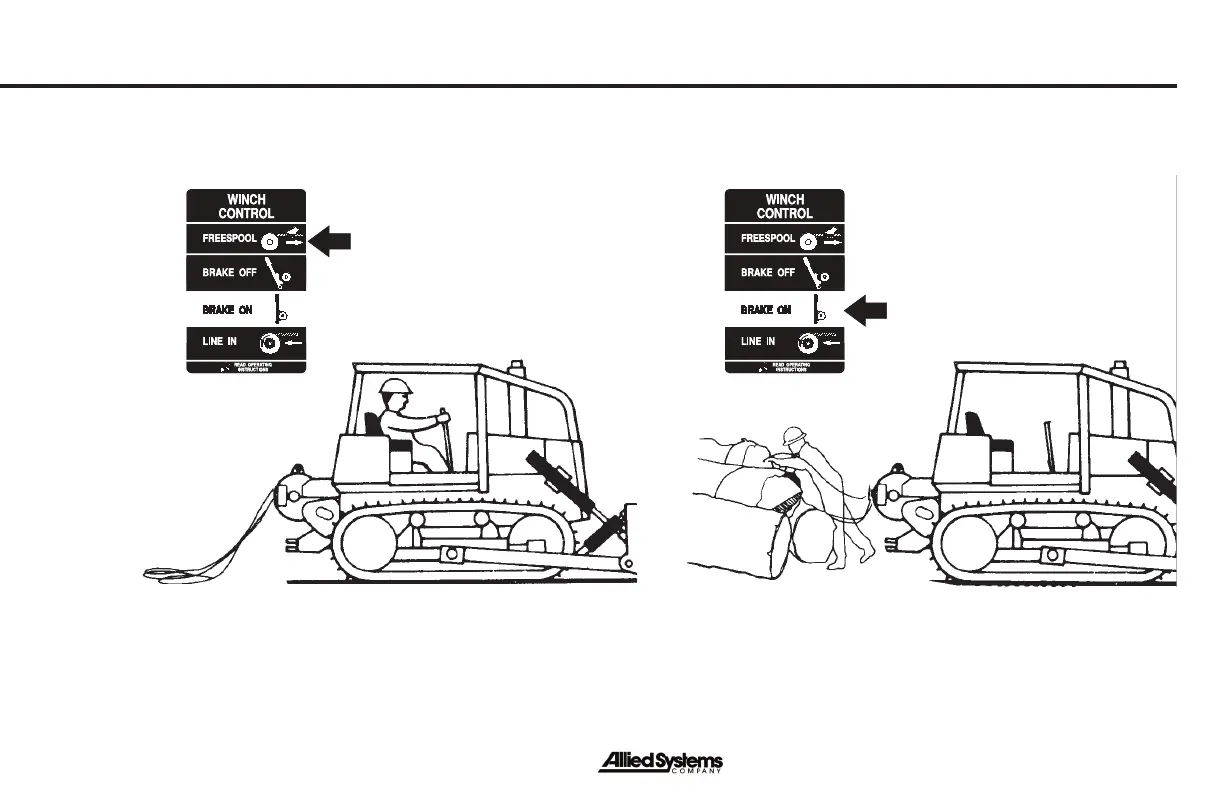

• Step 1. The tractor or skidder is moved to an area
where a load will be connected. The operator moves
the control lever to the FREESPOOL position so that
the wire rope can be pulled from the winch drum.
• Step 2. A load (logs) is connected to the wire rope.
The operator moves the control lever to the BRAKE-
ON position.
Operating Techniques, PFO
Operating Techniques, PFO
Note: Solid arrows indicate
the positions of the control
lever
