Allied Systems W3C User Manual

31
Tractor or Skidder Operation

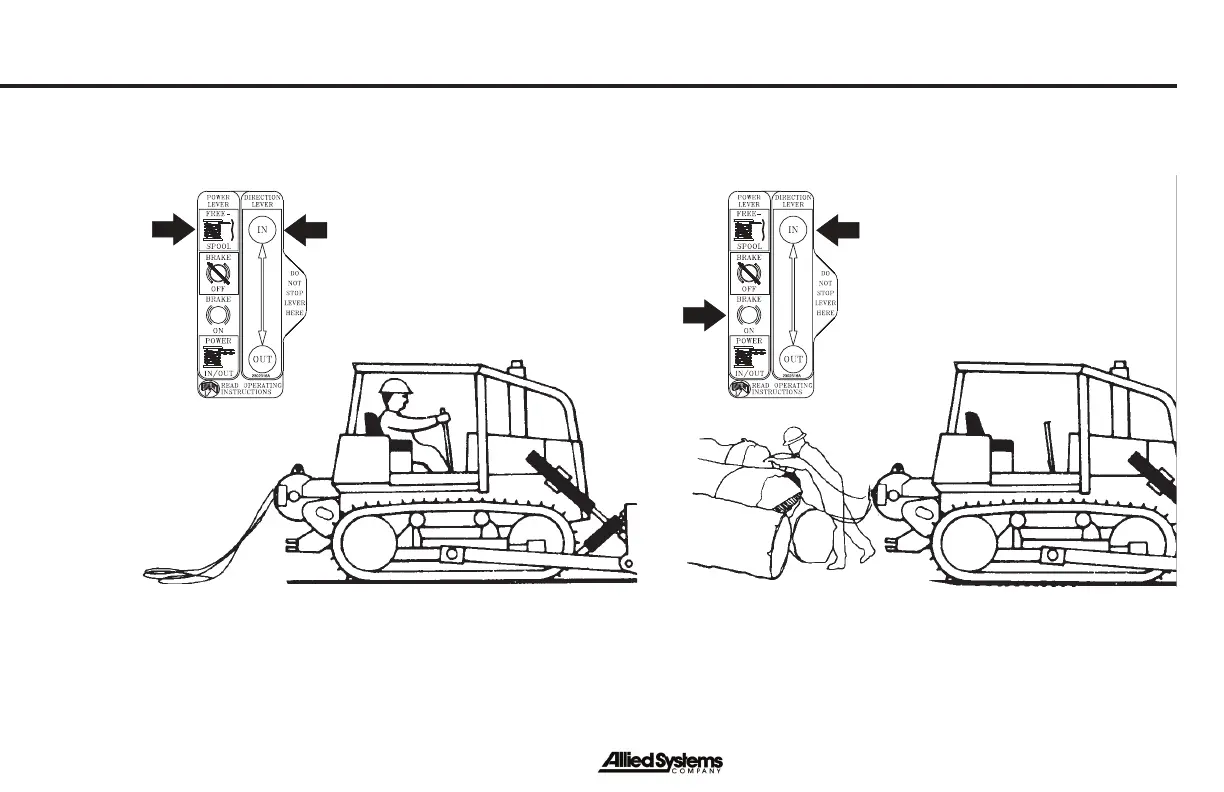

• Step 1. The tractor or skidder is moved to an area
where a load will be connected. The operator moves
the power lever into the FREESPOOL position so the
wire rope can be pulled from the winch drum.
• Step 2. A load (logs) is connected to the wire rope.
The operator moves the power lever to the BRAKE-
ON position.
Operating Techniques, PFR
Operating Techniques, PFR
Note: Solid arrows indicate
the positions of the control
lever
