AT-8000 Series Fast Ethernet Switches Installation Guide
53
Installing the Switch in a Rack
Perform the following procedure to install the switch in a standard
19-inch rack. If you are not installing the switch in a rack, proceed to
”Installing an Optional GBIC Module” on page 55.
1. Place the unit upside down on a level, secure surface.
2. Using a flat-head screwdriver, remove the snap-on plastic feet from

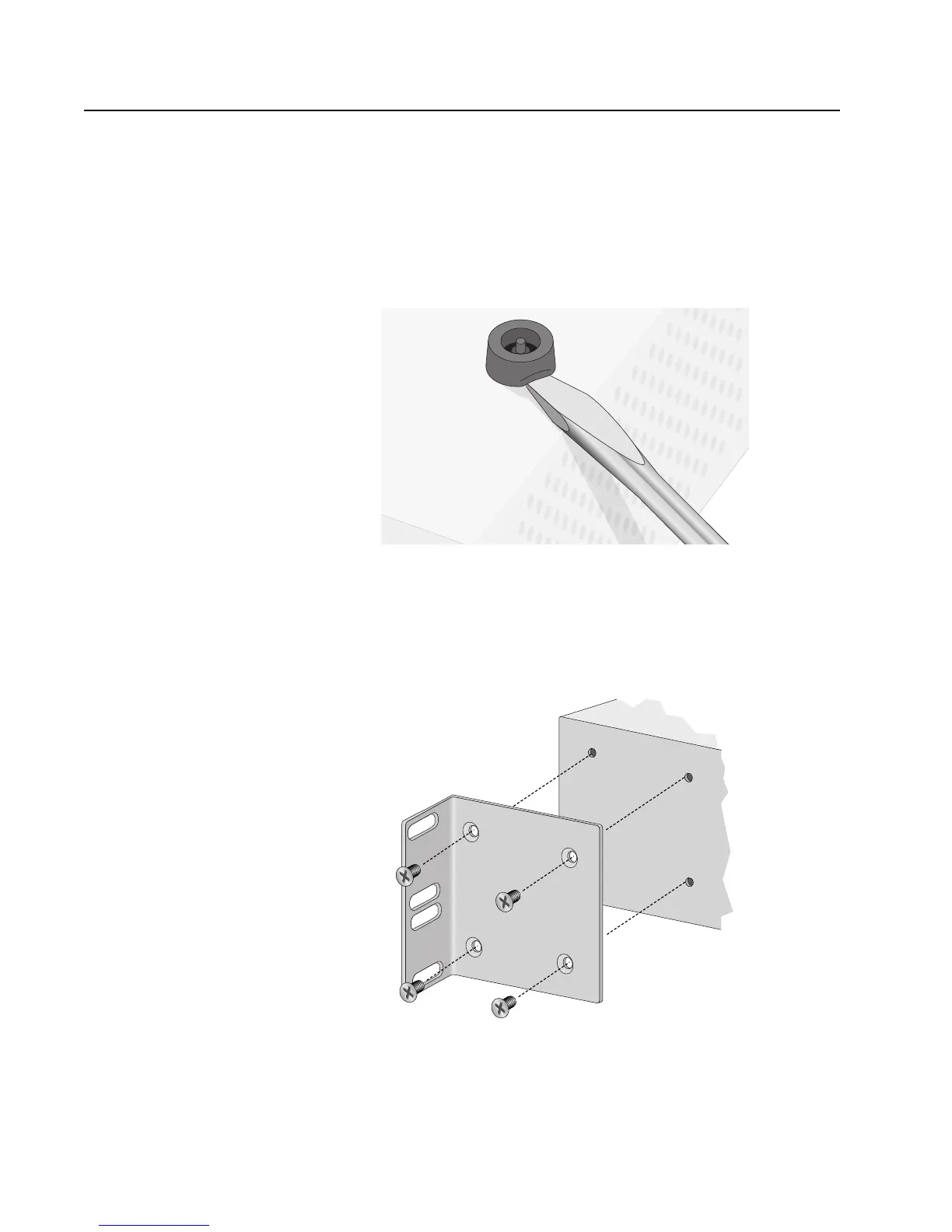

the bottom of the switch, as shown in Figure 18.
Figure 18. Removing the Feet
3. Turn the switch over.
4. Attach a rackmounting bracket to one side of the switch using four
of the screws that came with the switch. See Figure 19.
Figure 19. Attaching Rackmounting Brackets
