AT-MC10x Series Media Converters Installation Guide
33
RJ-45 Twisted Pair Port Pinouts

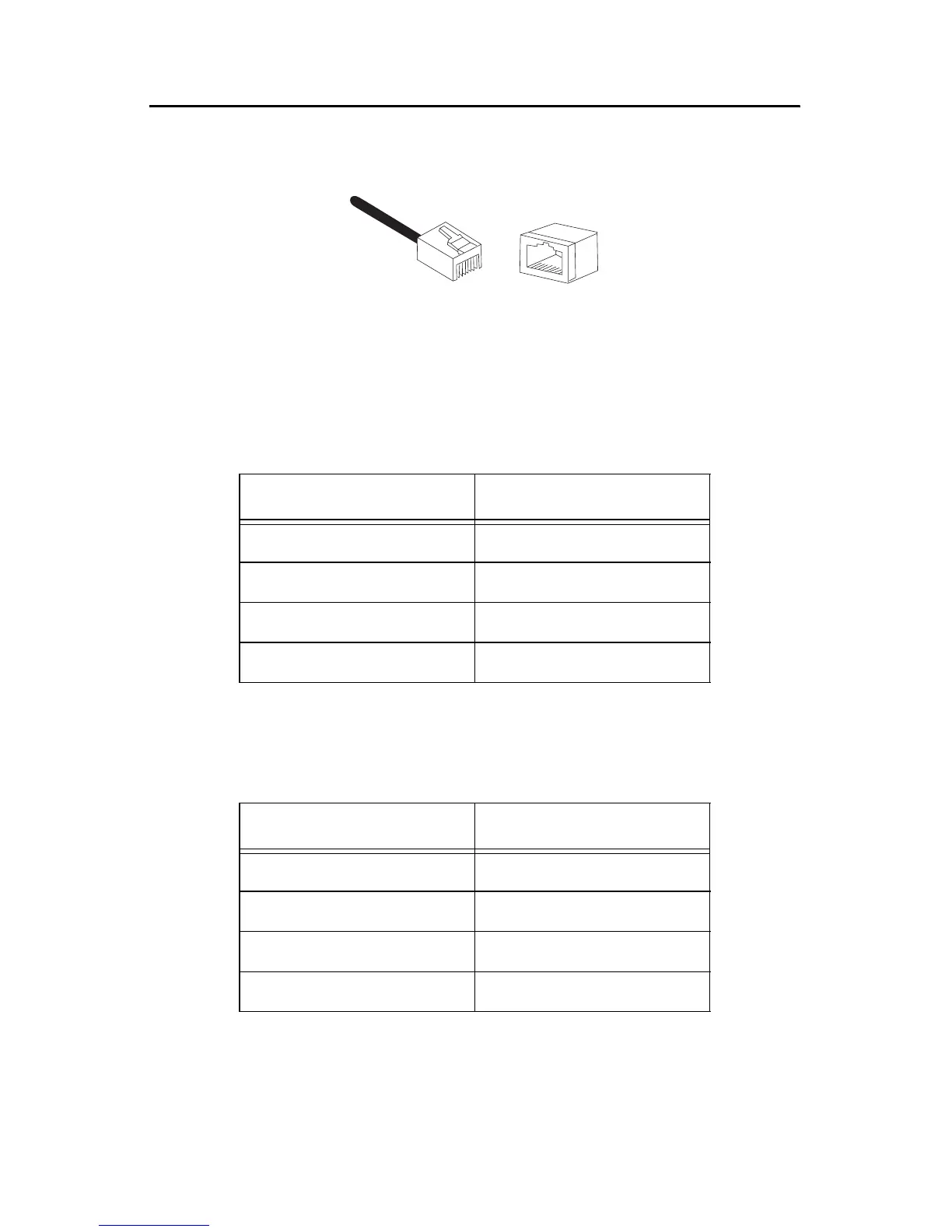

Figure 16 illustrates the pin layout to an RJ-45 connector and port.
Figure 16. RJ-45 Connector and Port Pin Layout
Table 7 lists the RJ-45 pin signals when a twisted pair port is operating in
the MDI configuration at 100 Mbps.
Table 8 lists the RJ-45 port pin signals when a twisted pair port is
operating in the MDI-X configuration at 100 Mbps.
Table 7. MDI Pin Signals (100Base-TX)
Pin Signal
1TX+
2TX-
3RX+
6RX-
Table 8. MDI-X Pin Signals (100Base-TX)
Pin Signal
1RX+
2RX-
3TX+
6TX-
