Chapter 1: Overview

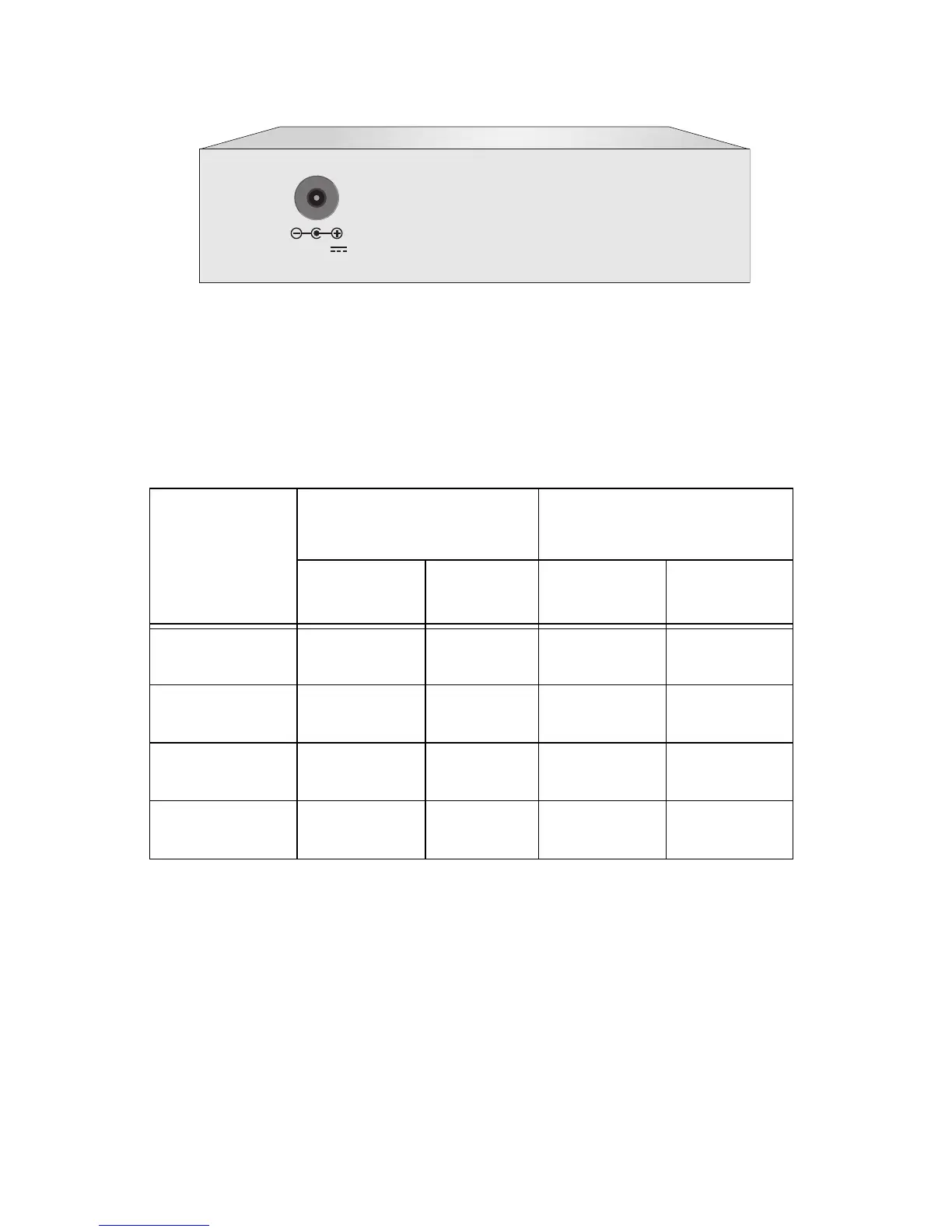

Figure 7 displays an AT-MC103LH Media Converter.

Figure 7. AT-MC10x Series - Rear Panel

Table 1 lists the maximum operating distances for the AT-MC101XL,

AT-MC102XL, AT-MC103XL, and AT-MC103LH media converters.

1. Maximum distance may be less depending on the duplex mode of the end

stations and the type of fiber optic cabling used with the port.

Table 1. Maximum Operating Distances

(AT-MC101XL, AT-MC102XL, AT-MC103XL, and AT-MC103LH)

Model

Type of Connector

Maximum Operating

Distance

100Base-

AT-MC101XL Dual ST RJ-45 2 km

(1.2 mi)

100 m

(328 ft)

AT-MC102XL Dual SC RJ-45 2 km

(1.2 mi)

100 m

(328 ft)

AT-MC103XL Dual SC RJ-45 15 km

(9.3 mi)

100 m

(328 ft)

AT-MC103LH Dual SC RJ-45 40 km

(24.8 mi)

100 m

(328 ft)

12VDC

310
