Allied A95UH1E - Unit with Cooling Coil

507276-03Page 36 of 59 Issue 1621
Condensate line must slope downward away from the trap
to drain. If drain level is above condensate trap, condensate
pump must be used. Condensate drain line should be routed
within the conditioned space to avoid freezing of condensate
and blockage of drain line. If this is not possible, a heat
cable kit may be used on the condensate trap and line.
Heating cable kit is available in various lengths; 6 ft. (1.8
m) - kit no. 26K68; 24 ft. (7.3 m) - kit no. 26K69; and 50 ft.
(15.2 m) - kit no. 26K70.

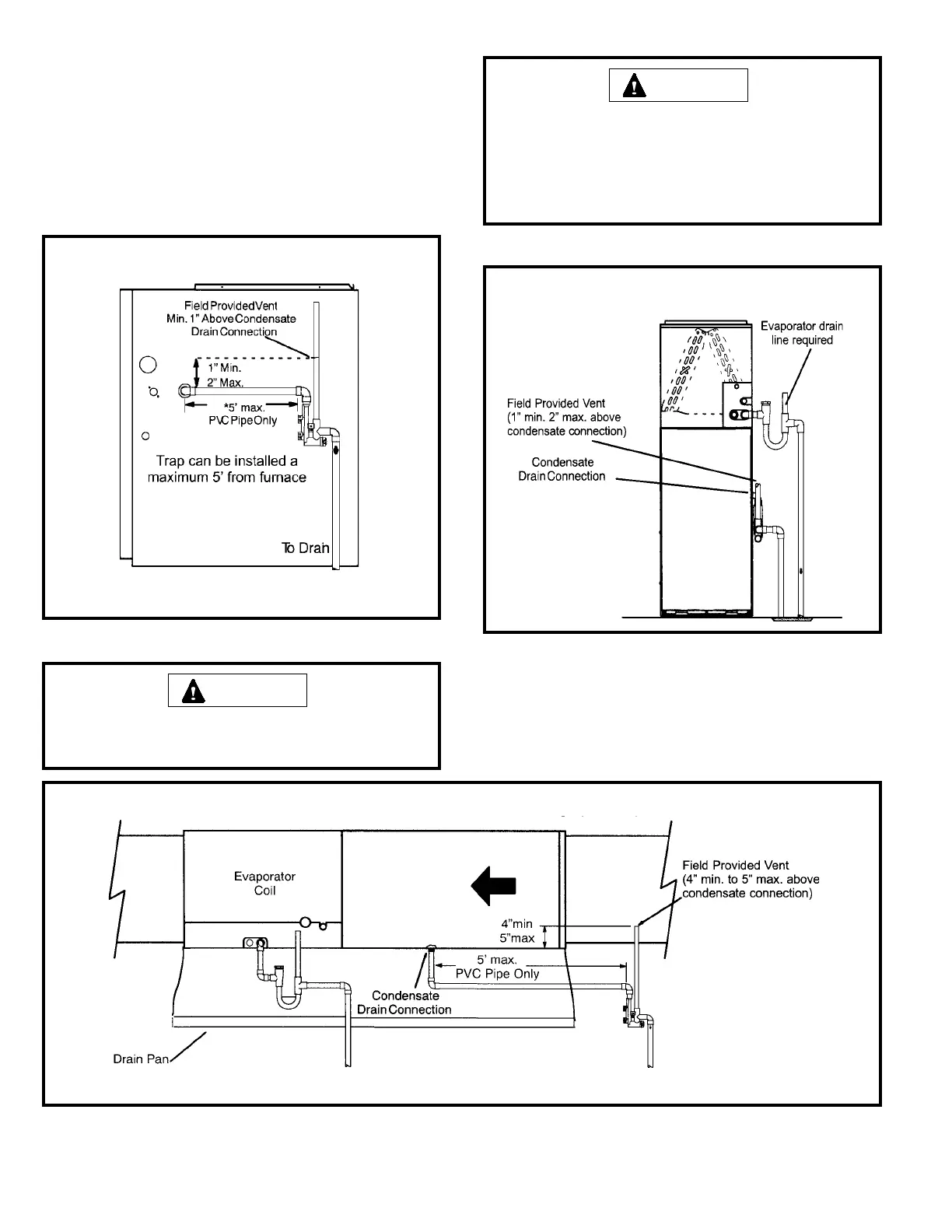

Figure 52
Unit with Cooling Coil
Figure 53
Condensate Trap Locations
* Piping from furnace must slope down a minimum of 1/4” per ft. toward trap.
Figure 51
Condensate Trap Locations
(Unit shown in upow position with remote trap)
* Piping from furnace must slope down a minimum of 1/4” per ft. toward trap.
A separate drain line must be run to the drain from the
condensate trap to ensure proper drainage and pressure
switch operation. DO NOT connect the condensate trap
drain into the drain line from the evaporator coil.
CAUTION
Do not use copper tubing or existing copper condensate
lines for drain line.
CAUTION
