Allison Transmission 3500 SP

To Next Page

To Previous Page

(1)–Breather

(2)–MountingPad

(3)–InputSpeedSensor

(4)–TurbineSpeedSensor

(5)–FillTubeandDipstick

(6)–Nameplate

(7)–FeedthroughHarness

Connector

(8)–CoolerPorts

(9)–OutputSpeedSensor

(10)–MountingPad(BothSides)

(11)–Breather

(12)–CoolerPorts

(13)–Main-PressureT ap

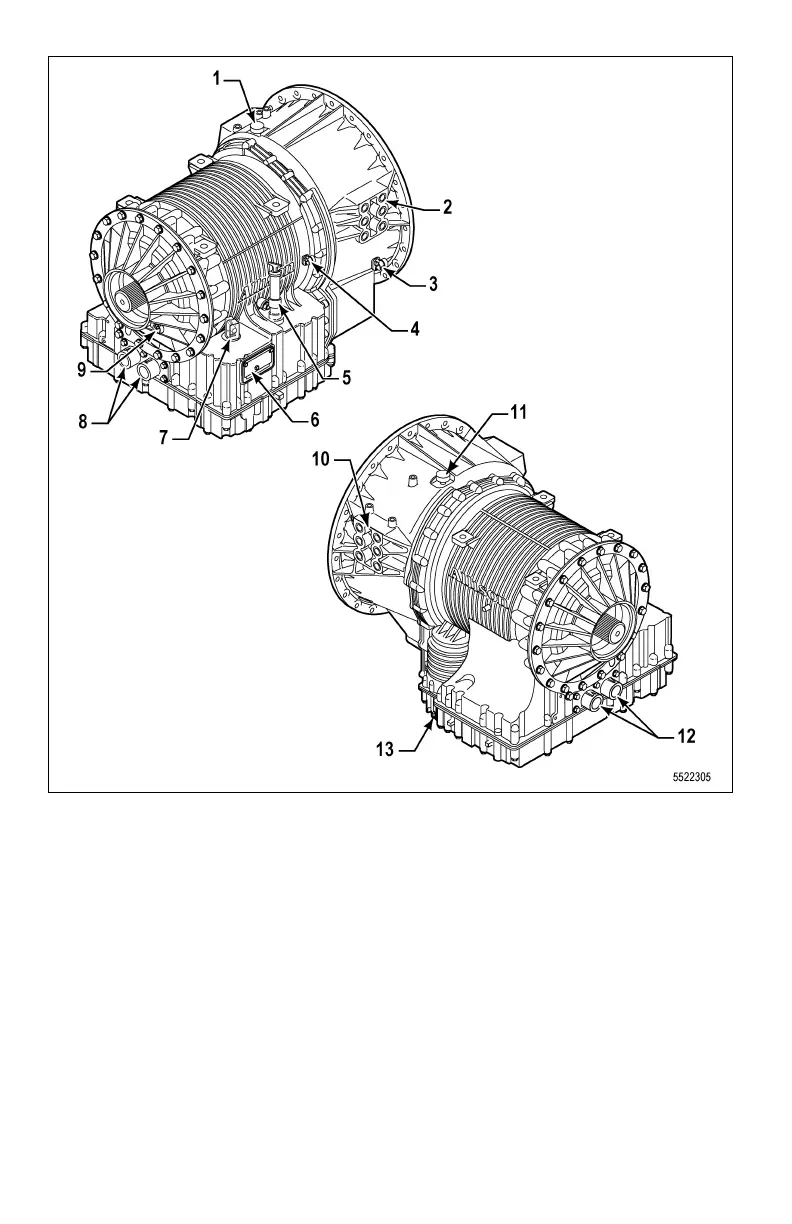

Figure2–2.4000/4200/4430/4440/4500/4600Series
