Series AE1L, AE.E, AE.N, AE.H, AE.V, AED1E, AED2N
Design ID, ZD

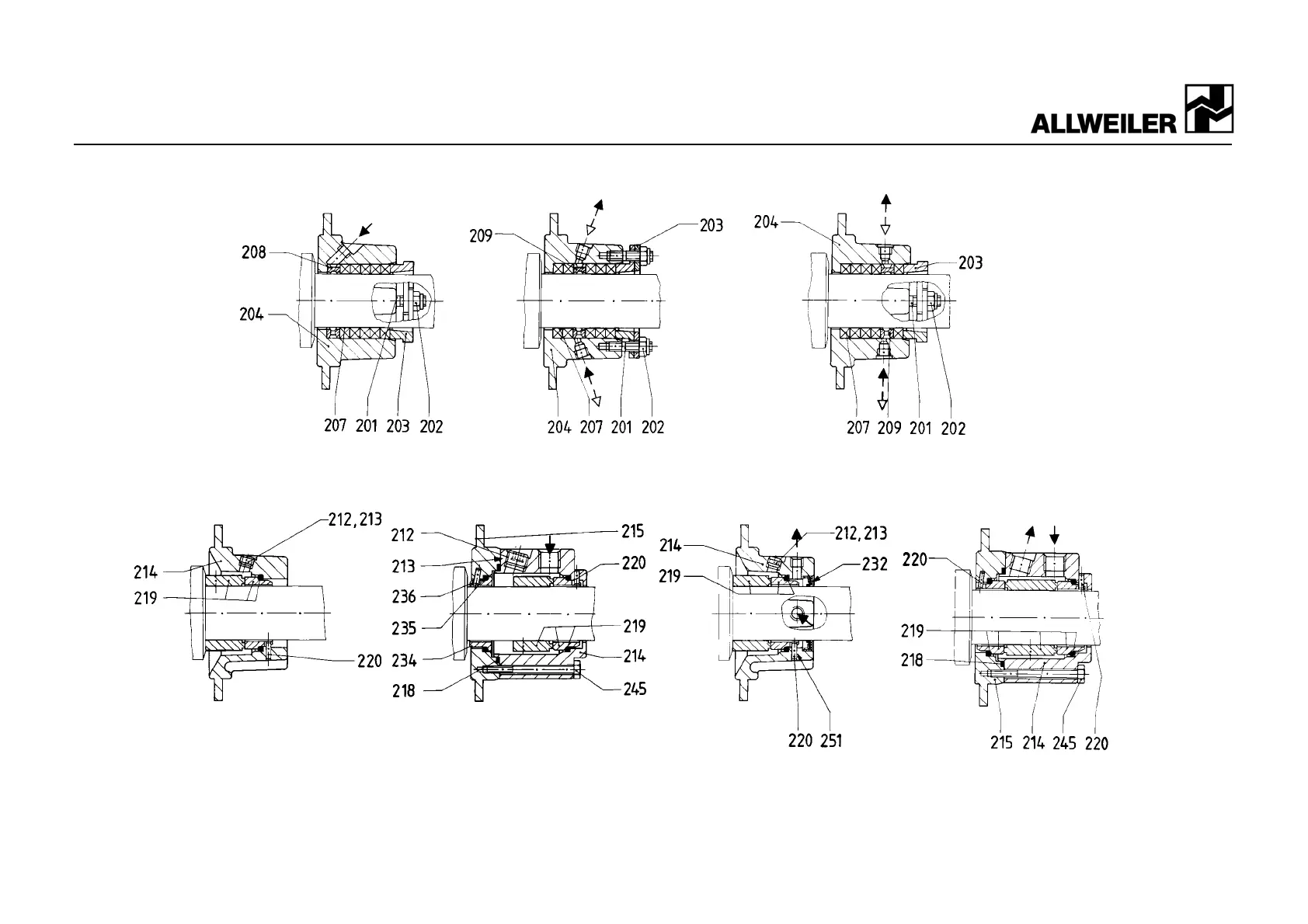

Sectional drawing shaft seals
P02
Stuffing box with flushing ring
P03
Stuffing box with internal sealing
chamber ring
P04
Stuffing box with external sealing
chamber ring
G0K and G0N, mechanical seal, single-
acting
G0S and G0T, mechanical seal, single-
acting with throttle ring
G0Q
mechanical seal, single-
acting with quench
G0D
mechanical seal, double-acting
