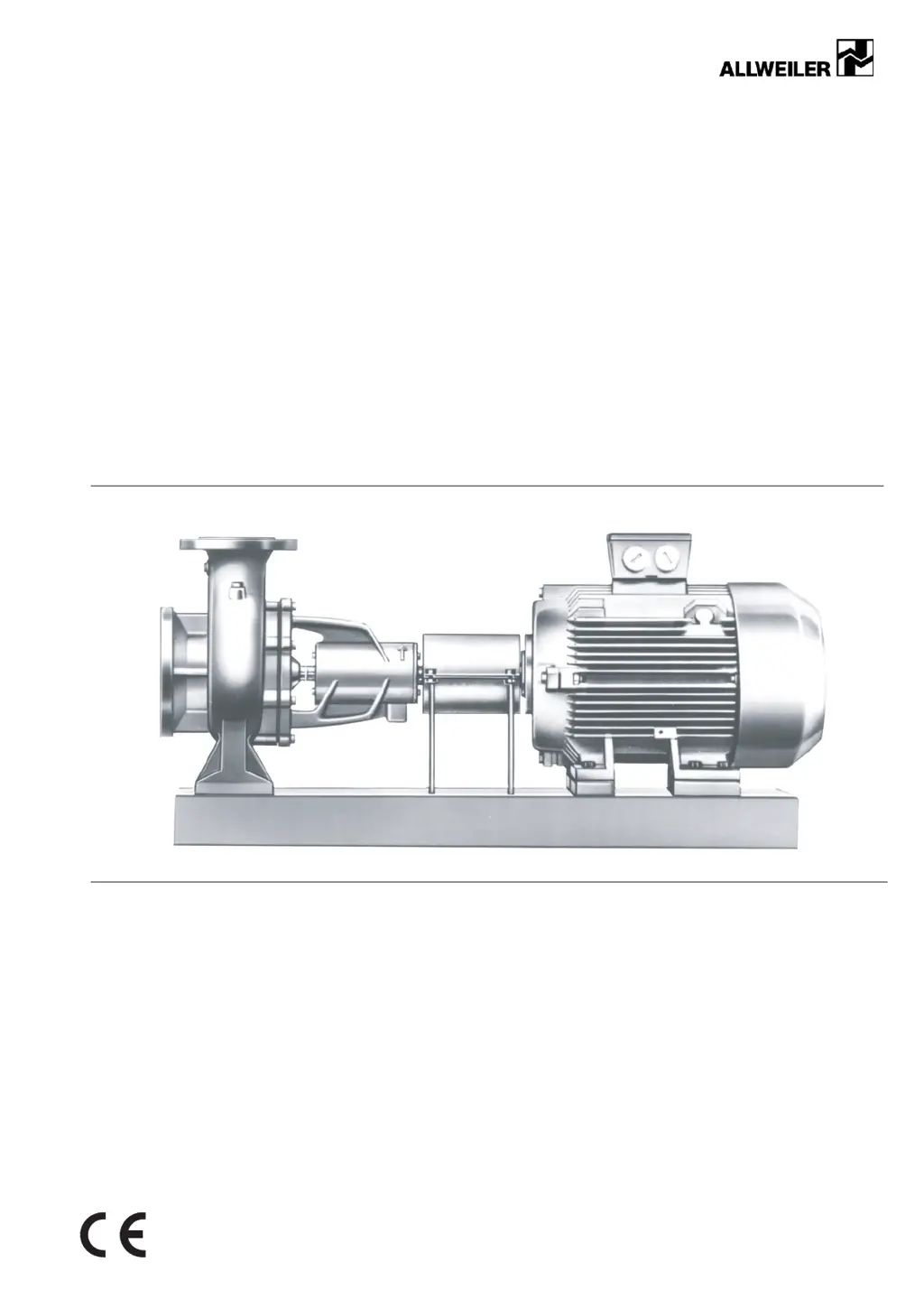

Allweiler NT Series - User Manual

Questions and Answers

W
wandersonAug 4, 2025
How to fix insufficient pumping rate in Allweiler NT Water Pump?
- A
  Angel WeberAug 4, 2025
  If the pumping rate of your Allweiler Water Pump is insufficient, start by ensuring the supply/suction pipe is fully opened by opening the fitting. Check for any blockages or encrustations in the supply/suction pipe, pump, or suction strainer, and clean them if necessary. If the supply/suction pipe cross-section is too narrow, increase it and remove any encrustations. If the suction height is excessive, consult the manufacturer. Also, make sure the supply/suction pipe is properly bled and completely filled. If there are air pockets in the supply/suction pipe, install a bleeding fitting and correct the piping layout. Check for air being sucked in and seal the source of the malfunction. For excessive gas or high pumped liquid temperature, which can cause cavitation, consult the manufacturer.
D
Diana ClaytonAug 10, 2025
What to do if Allweiler NT Water Pump is running roughly?
- A
  Angela ThompsonAug 10, 2025
  If your Allweiler Water Pump is running roughly, it may be due to a few reasons. The supply/suction pipe might not be bled properly or filled completely, so ensure you fill and bleed them. Air pockets in the supply/suction pipe can also cause this, so install a fitting for bleeding and correct the piping layout. If air is being sucked in, seal the source of the malfunction. Excessive gas or a high pumped liquid temperature can lead to cavitation, so consult the manufacturer.
Y
Yvonne SalazarAug 15, 2025
Why does Allweiler Water Pump have excessive motor power uptake?
- L
  Lori JuarezAug 16, 2025
  If your Allweiler Water Pump is experiencing excessive motor power uptake, it could be due to a few reasons. Ensure the supply/suction pipe is properly bled and completely filled. Air pockets in the supply/suction pipe can also cause this, so install a fitting for bleeding and correct the piping layout. If air is being sucked in, seal the source of the malfunction. Excessive gas or a high pumped liquid temperature can lead to cavitation, so consult the manufacturer.
M
Melissa LeeAug 22, 2025
How to troubleshoot insufficient pumping pressure in Allweiler Water Pump?
- D
  Donna RobertsonAug 22, 2025
  If the pumping pressure of your Allweiler Water Pump is insufficient, it could be due to several reasons. If the suction height is excessive, consult the manufacturer. Also, make sure the supply/suction pipe is properly bled and completely filled. If there are air pockets in the supply/suction pipe, install a fitting for bleeding and correct the piping layout. Check for air being sucked in and seal the source of the malfunction. For excessive gas or high pumped liquid temperature, which can cause cavitation, consult the manufacturer.
C
chasepamOct 28, 2025
Why is my Allweiler NT Water Pump not pumping?
- J
  Jeremy CannonOct 29, 2025
  If your Allweiler Water Pump isn't pumping, it could be due to several reasons. First, check if any fittings are blocking the supply, suction, or pressure pipes and open them. Ensure the supply/suction pipe is fully opened. Also, the supply/suction pipe, pump, or suction strainer might be blocked or encrusted, requiring cleaning. The supply/suction pipe cross-section could be too narrow, so increase it and remove any encrustations. Make sure the transport and sealing cover is removed. If the suction height is excessive, consult the manufacturer. Also, the supply/suction pipe might not be bled or filled completely, so fill and bleed them. Air pockets in the supply/suction pipe can also cause this, so install a bleeding fitting and correct the piping layout. Air being sucked in can be anothe...

Summary

About this document

Target groups

Identifies user roles and their responsibilities for operating the pump safely.

Warnings and symbols

Explains warning symbols, risk levels, and consequences of disregard.

Technical terms

Defines key technical terms used in the manual.

Safety

Intended use

Specifies the correct application and operational limits for the pump.

General safety instructions

Provides overarching safety guidelines for pump operation and maintenance.

Product safety

Outlines the pump's construction and potential risks during operation.

Operators obligations

Details safety responsibilities for operators and qualified personnel.

Obligations of personnel

Specifies duties for personnel regarding pump operation and safety.

Specific hazards

Lists specific hazards associated with the pump.

Electric shock

Warns about the risk of electric shock and necessary precautions.

Hazardous and spraying (pumped) liquids

Details risks associated with pumped liquids and safety measures.

Moving parts

Highlights dangers from moving components and required safety actions.

Hot surfaces

Warns about burn risks from hot pump surfaces and precautions.

Layout and function

Type plate

Explains the data presented on the pump's identification plate.

Digital nameplate

Details the function of the machine-readable pump identification number.

Pump type code

Explains the coding system used to identify pump specifications.

Layout

Illustrates the main components of the NT pump layout.

Mechanical seals

Explains the characteristics and types of mechanical seals.

Stuffing box

Details the function and leakage requirement of the stuffing box.

Sealing systems

Describes the quenching system for sealing.

Transport, storage and disposal

Unpacking and inspection on delivery

Guides on how to unpack and check the pump upon delivery.

Lifting

Details safe procedures for lifting the pump using appropriate gear.

Treatment for storage

Explains how to prepare the pump for storage.

Storage

Lists conditions and actions required for proper pump storage.

Removing preservative

Instructs on removing preservative before operation.

Disposal

Provides guidelines for the safe disposal of the pump.

Setup and connection

Checking the ambient conditions

Ensures that environmental conditions meet requirements.

Preparing the installation site

Details requirements for the installation location.

Preparing the foundation and surface

Describes how to prepare the foundation for pump installation.

Installing the heat insulation (optional)

Explains the process of installing optional heat insulation.

Placing the pump unit on the foundation

Guides on positioning the pump unit onto the foundation.

Fastening the pump unit

Explains how to secure the pump unit to the foundation.

Installation without a foundation

Describes how to install the pump if no foundation is used.

Installing the motor

Provides instructions for mounting the motor onto the pump unit.

Specifying supports and flange connections

Details how to specify pipe supports and flange connections.

Specifying nominal diameters

Guides on selecting appropriate nominal pipe diameters.

Specifying pipe lengths

Recommends specific lengths for suction and discharge pipes.

Optimizing changes in cross-section and direction

Advises on minimizing pipe bends and cross-section changes.

Discharging leaks

Provides safety instructions for handling leaks.

Keeping the piping clean

Emphasizes the importance of clean piping before connection.

Installing the pressure pipe

Guides on installing the pressure pipe.

Inspection for stress-free pipe connections

Explains how to check pipe connections for stress.

Checking the support foot for distortion (if available)

Details how to check and correct support foot distortion.

Connecting the motor

Explains how to connect the motor to the power supply.

Checking the sense of rotation

Guides on verifying and correcting the motor's rotation direction.

Aligning the coupling precisely

Provides detailed steps for precise alignment of pump and motor couplings.

Aligning the motor with sets of shims

Describes aligning the motor using shims.

Aligning the motor with adjusting screws

Details motor alignment using adjusting screws.

Installing the coupling guard

Instructs on fitting the coupling guard for safety.

Operation

Identifying the pump type

Emphasizes identifying the specific pump model.

Lubricating the bearings

Details bearing lubrication requirements.

Preparing auxiliary systems (if available)

Guides on preparing auxiliary systems before operation.

Filling and bleeding

Explains the process of filling and bleeding the pump.

Switching on

Details the sequence for switching the pump on.

Switching off

Explains the correct procedure for shutting down the pump.

Shutting down the pump

Lists measures to take when shutting down the pump.

Start-up following a shutdown period

Outlines procedures for restarting the pump after a shutdown.

Operating the stand-by pump

Explains how to operate and maintain a stand-by pump.

Maintenance

Inspections

Defines inspection intervals and checks for proper operation.

Antifriction bearings lubricated with grease

Advises on replacing greased antifriction bearings.

Mechanical seals

Discusses wear and replacement of mechanical seals.

Stuffing box

Details maintenance for stuffing boxes and leakage.

Cleaning the pump

Provides instructions for cleaning the pump.

Dismounting

Outlines the process and safety precautions for disassembling the pump.

Returning the pump to the manufacturer

Specifies procedures for returning pumps for repair or warranty.

Preparations for dismounting

Lists steps required before starting pump disassembly.

Installing

Provides instructions for reinstalling pump components correctly.

Ordering spare parts

Guides on how to order necessary spare parts.

Appendix

Auxiliary connections

Lists and defines abbreviations for auxiliary connections.

Part numbers and designations

Provides a list of pump components with their part numbers.

Sectional drawings

Shows detailed sectional views of the pump with part labels.

Seals

Illustrates different types of seals used in the pump.

Coupling guard

Shows the coupling guard and its installation details.

Ambient conditions

Specifies acceptable ambient temperature, humidity, and altitude.

Parameters for auxiliary systems

Lists operating parameters for sealing systems.

Sound pressure level

Details sound pressure levels for the pump and motor.

Tightening torques

Lists recommended tightening torques for various fasteners.

Cleaning agents

Recommends suitable cleaning agents for different applications.

Lubricants

Specifies lubricants, brands, and quantities for bearings.

Bearing bracket size

Provides a cross-reference between pump sizes and bearing bracket sizes.

Height offset for motor alignment with adjusting screw

Details height adjustments for motor alignment using screws.

Flange loads according to ISO 5199

Provides formulas and data for calculating flange loads.

Spare parts for two years of continuous operation according to DIN 24296

Lists recommended spare parts quantities for two years of operation.

Declaration of harmlessness

Form for declaring the pump's harmlessness for return shipment.

Declaration of conformity according to EC Machine Directive

Official declaration of the pump's compliance with EC directives.

Allweiler NT Series Specifications

General

Type	Centrifugal Pump
Casing Material	Cast iron, stainless steel
Pressure Rating	Up to 16 bar
Series	NT
Application	General industrial applications, water supply, cooling systems
Impeller Material	Bronze, stainless steel
Seal Type	Mechanical seal
Connection Type	Flanged
Standards	ISO, EN
