Allworx 6x - Rear Panel Port and Connector Details

6x Installation Guide

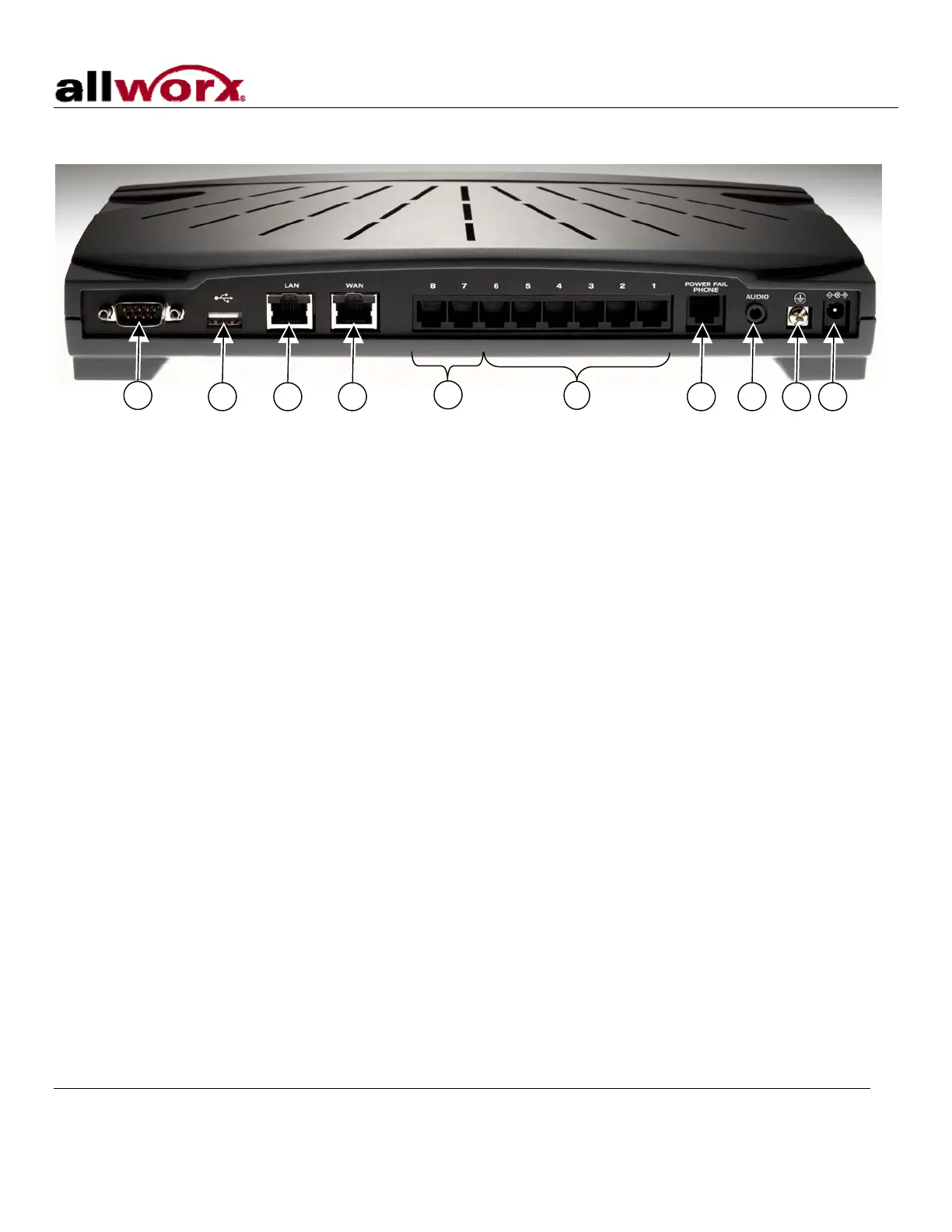

Figure 2: Rear Chassis View
300 Main Street • East Rochester, NY 14445 • Toll Free 1-866-ALLWORX • 585-421-3850 • www.allworx.com
© 2007 Allworx Corp. All rights reserved. Allworx is a registered trademark of Allworx Corp. All other names may be trademarks or registered
trademarks of their respective owners.
Revised: December 27, 2007
Page 3
8 Door and paging relay port
9 USB Host Port
10 RJ-45 10BaseT/100BaseTX Auto-Sensing Auto-MDI/MDIX Local Area Network
Ethernet port.
11 RJ-45 10BaseT/100BaseTX Auto-Sensing Auto-MDI/MDIX Wide Area Network
Ethernet port.
12 RJ-11 FXS ports for inside extensions (Ports 7-8)
13 RJ-11 loop-start FXO for central office connection (Ports 1-6)
14 RJ-11 Power Fail analog phone connector
15 3.5 mm stereo audio mini jack for music-on-hold (input) and overhead paging
(output)
16 Permanent ground connecting screw
17 5.5 x 2.1 mm power jack. Input 12 VDC @ 1A, center positive
12 138
9
1
0
11 14 1
5
1
6
17
