PAGE 62 ALMAC s.r.l.

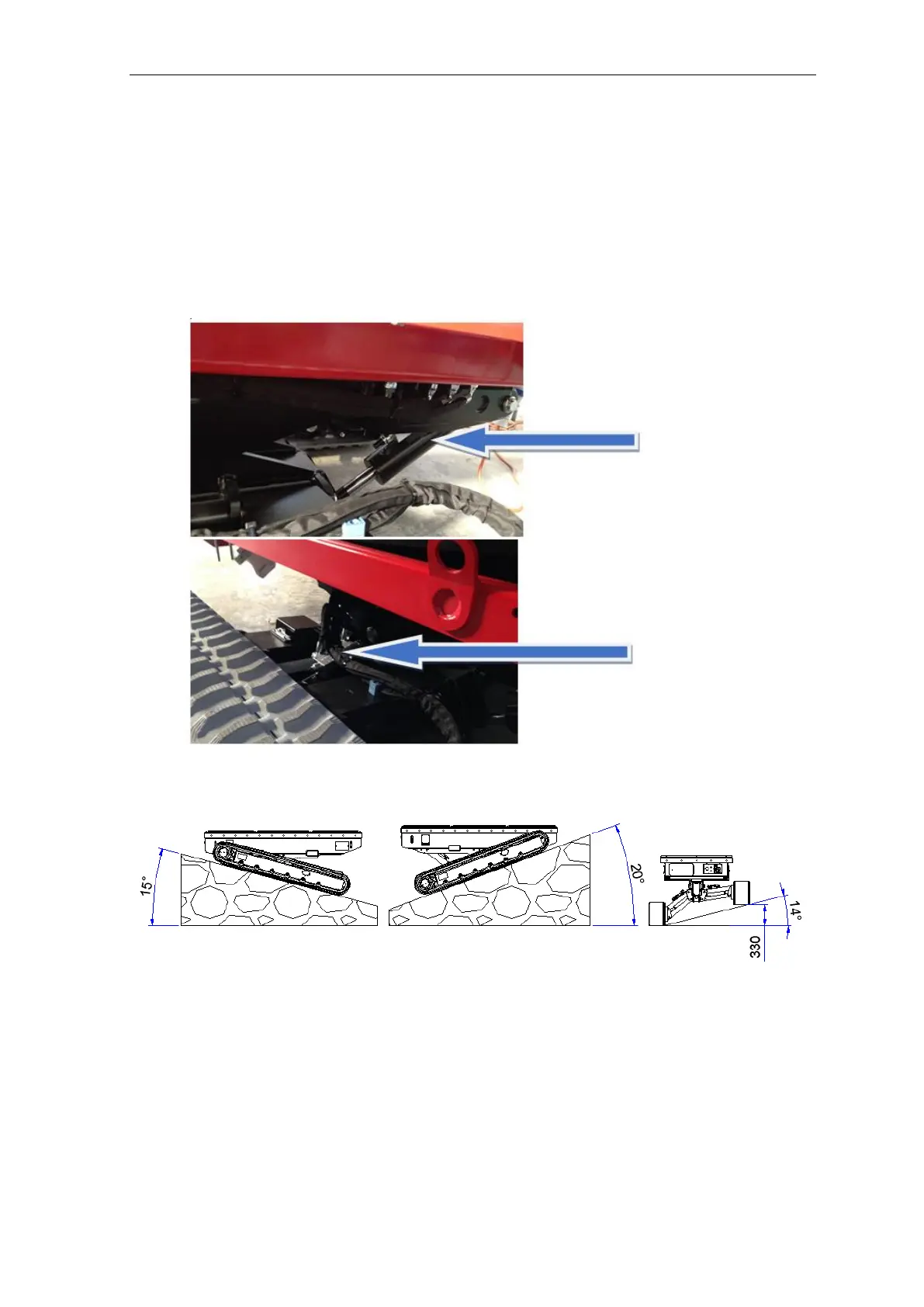

4.2.3 Machine levelling
The machine is equipped with an automatic levelling system with hydraulic
cylinders, to allow the machine to operate within the maximum inclination
permitted, thus always keeping the loading platform horizontal with respect to
the ground within a range of ± 0.5°, both longitudinally (longitudinal cylinder)
and laterally (connecting rod cylinders).
The maximum level configurations envisaged for the tracked chassis are shown
below.
