6.2.7.1 Suction filters replacement

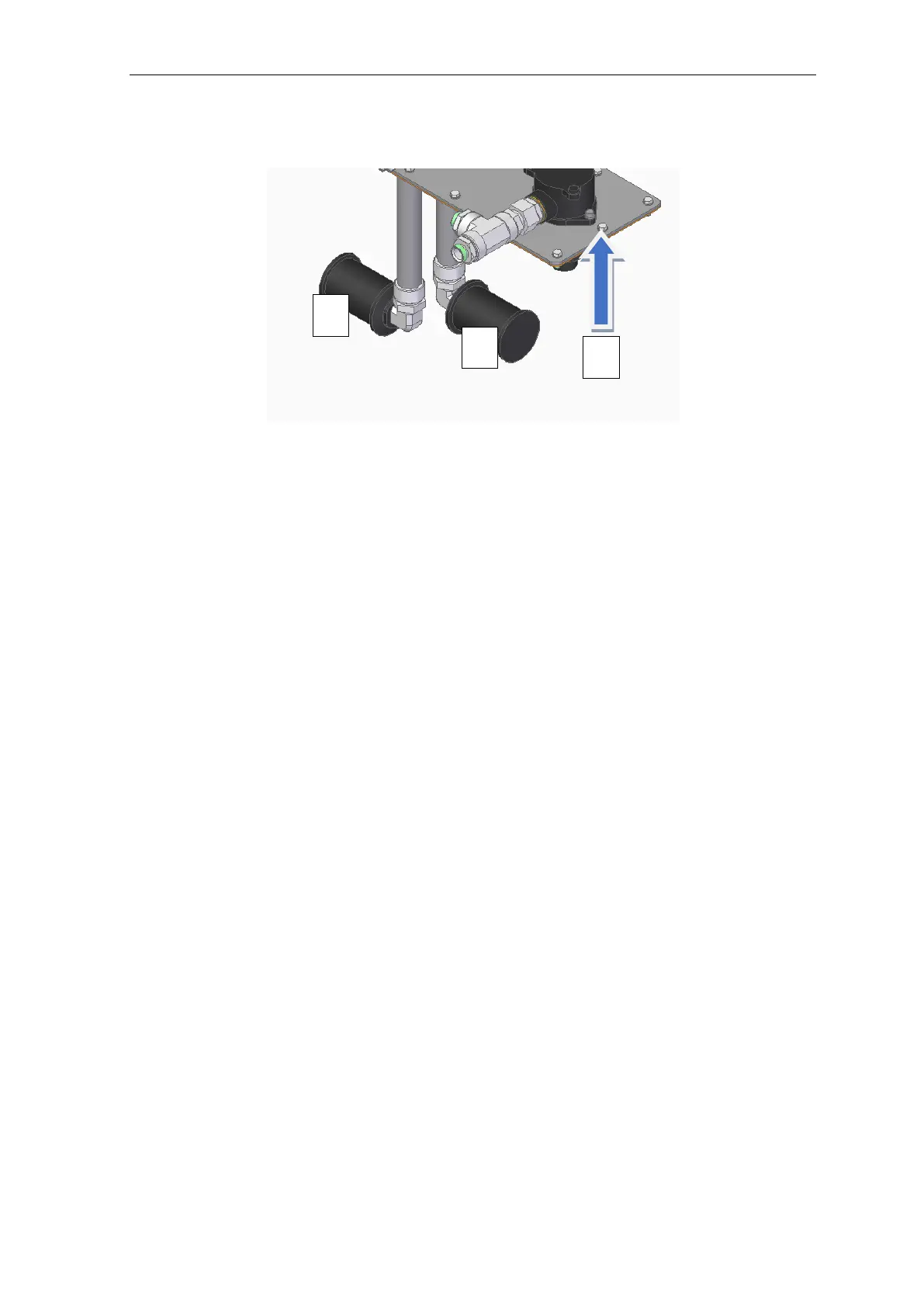

To replace the intake filters located inside the hydraulic tank, proceed as
follows:
1) Remove the central filling platform;
2) Empty the hydraulic oil tank;
3) Unscrew the blocking screws (1) on the hydraulic tank lid and remove it
from its housing;
4) Remove filter (2) and replace it with a new one;
5) Work through the instructions above in reverse order to restore the
machine to its normal operating conditions;
6) Seal the lid with sealing paste;
7) Fill the hydraulic oil reservoir with oil and check the level.
6.2.7.2 Replacing the discharge filter
To replace the discharge filter located above the hydraulic tank, proceed as
follows:
1) Remove the central filling platform;
2) Unscrew the blocking screws (1) on the filter and remove it from its
housing;
3) Unscrew the filter cartridge (2), being careful with the seals and/or O-
rings;
4) Remove the cartridge (3) and fit a new one in its place;
5) Work through the instructions above in reverse order to restore the
machine to its normal operating conditions.
