Alpha-InnoTec L12 SPLIT - Connecting HM 8-12 SPLIT to Other Units; Connection to EHZK;WWS Tanks

L12 SPLIT
Cable holder
TB

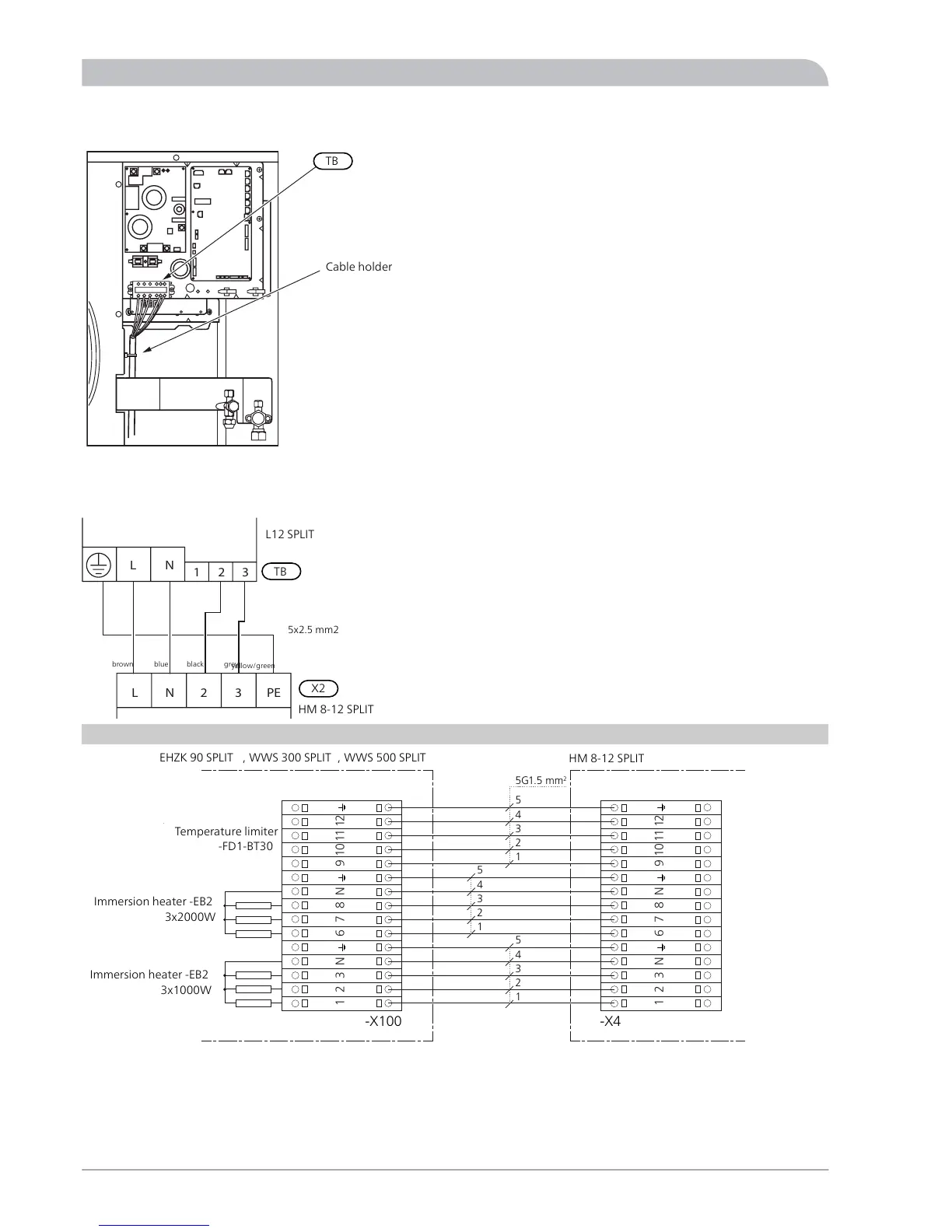

Connect phase (brown), neutral (blue), communication
(black and grey) as well as earth (yellow/green) as illus-
trated:
L N
1 2 3
L N 2 3 PE
(AMS 10-12:-X1)
(ACVM 10-270:-X2)
N L
1 2 3
L N 2 3 PE
(AMS 10-8:-X1)
(ACVM 10-270:-X2)
brown
blue
black
grey
yellow/green
5x2.5 mm2
TB
X2
L12 SPLIT
HM 8-12 SPLIT
Connection between HM 8-12 SPLIT and EHZK
90 SPLIT, WWS 300 SPLIT, WWS 500 SPLIT
The cable between the units must be connected between
terminal block for outgoing electricity (X4) in HM 8-12
SPLIT and terminal block X100 in EHZK 90 SPLIT, WWS 300
SPLIT, WWS 500 SPLIT.
Stripped length of conductor is 12 mm.
Connection between HM 8-12 SPLIT and
HE 10-30/HEV 10-300/HEV 10-500
-X100
HBS 10-12/HBS 10-16
-X4
1211109NN 876321 1211109NN 876321
Temperaturebegränsare
-FD1-BT30
Elpatron -EB2
3x2000W
Elpatron -EB2
3x1000W
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5G1.5 mm
2
Temperature limiter
-FD1-BT30
Immersion heater -EB2
3x2000W
Immersion heater -EB2
3x1000W
EHZK 90 SPLIT , WWS 300 SPLIT , WWS 500 SPLIT
HM 8-12 SPLIT
SPLIT36
For the Installer
Electrical installation
