NOTE
When installing with a wall duct, make sure
the wall clearance is correct.

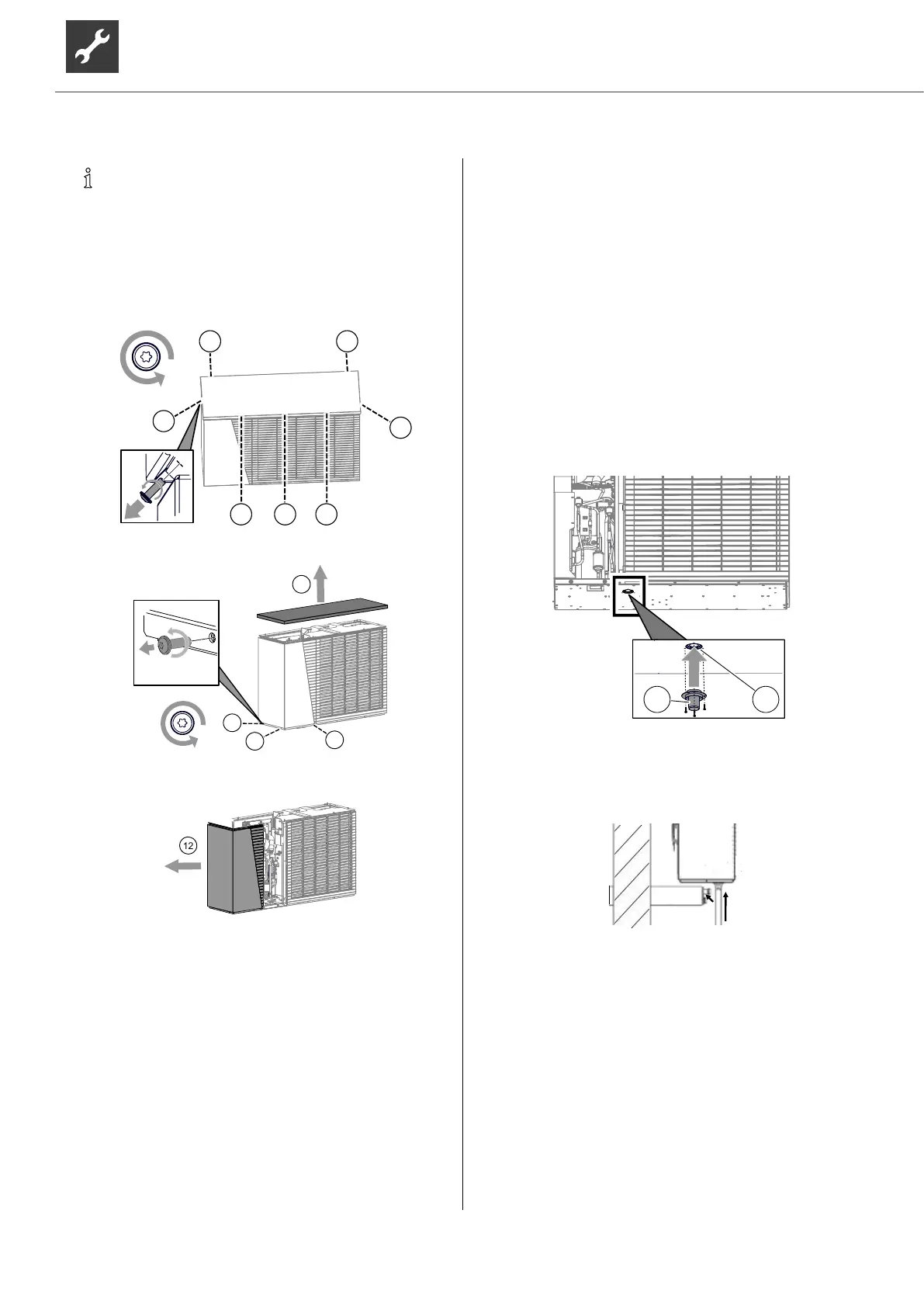

5.7 Opening and closing the device
► Remove the cover and the side facade of the de-
vice.
3
4
567
2
1
7x
9
8
10
11
3x
► Close the device in reverse order.
6 Installation of hydraulic
system
6.1 Condensate drain
The condensate precipitated from the air must be re-
moved frost-free via a plastic condensate pipe with
a minimum diameter of 40 mm. If surfaces are wa-
ter permeable, it is sufficient for the condensate drain
pipe to be routed vertically into the ground to a depth
of at least 90 cm.
► Install the condensate pipe nozzle (
➀
) on the con-
densate drain (
➁
), which is included in the scope
of delivery for the device, on the underside of the
device using the enclosed screws.
1 2
Outdoors
Connect the condensate pipe (wall duct accesso-
ry) to the condensate pipe nozzle.
“Wall duct installation instruction”
The condensate pipe must not be inserted into the
ground on its own, it must first be inserted into a sec-
ond pipe that is suitable for installation in the ground
(such as a waste water pipe).
The connection between the pipes must be sealed. It
must be possible to compensate the length. The pipe
on the device must not press against the ground, it must
be possible to slide it.
Sufficient seepage of the draining condensate into the
ground must be ensured.
“External condensate line connection“, page 39
