28
Subject to change without notice | 83053500oUK | ait-deutschland GmbH
0,93m
H1
0,5m0,5m
2,3m
WP
SB
1
1
1
WP
SB
3,3m
2,45m
1m1m
1m 1m
WP
SB
Legende: DE819401
Technische Änderungen vorbehalten
WP Wärmepumpe
SB Schutzbereich
H1 bis zum Boden
1 Türen, Fenster, Lichtschächte, usw. ins Haus
Aufstellung Schutzbereich Wärmepumpe
Wichtig:
Die Wärmepumpe darf nur im Freien aufgestellt werden!
Dabei ist das Gerät so zu positionieren, dass im Fall einer Leckage kein Kältemittel in das Gebäude
gelangt oder auf irgendeine andere Weise Personen gefährden kann.
In dem Schutzbereich (siehe Abbildung), der sich zwischen der Geräteoberkante und dem Boden befindet
dürfen sich keine Zündquellen
, Fenster, Türen, Lüftungsöffnungen, Lichtschächte und der gleichen
befinden. Der Schutzbereich darf sich nicht auf Nachbargrundstücke oder öffentliche Verkehrsflächen
erstrecken. Die Wanddurchführung durch die Gebäudehülle ist gasdicht auszuführen.

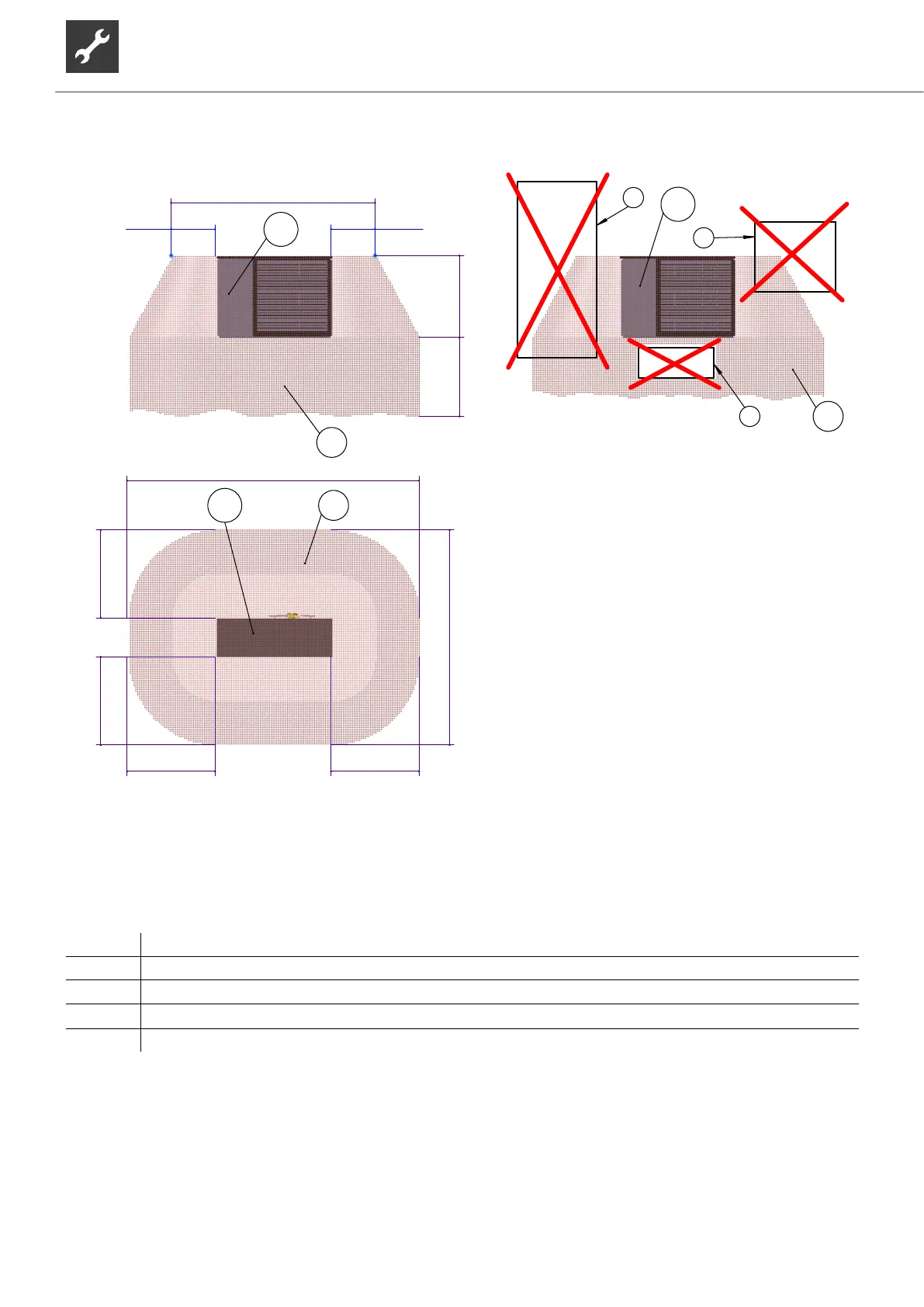

Abbildung: Sicherheitsabstände zur Wärmepumpe
AIT
gilt für:
LWD 50A 100601
LWD 70A 100602
Novelan
gilt für:
LAD 5 103601
LAD 7 103602
8
7
6
5
4
3
2
1
www.alpha-innotec.de
D - 95359 Kasendorf
Industriestraße 3
Alpha-InnoTec GmbH
1
1
Ers. d.
Ers. f.
A
B
C
D
E
F
F
E
D
C
B
A
4
3
2
1
Benennung
Aufstellungshinweise Schutzbereich
819401
-
Zust.
Änderungstext
Datum
10.6.2011
DM
Von
Blatt
von
Werkstoff
Gewicht
Maßstab
1:50
Det. Maßstab
Datum
Name
Erstellt
Gepr.
Norm.
9.6.2011
Markieton
10.6.2011
Markieton
toleranz
Allgemein-
DIN ISO 2768 -c
Oberflächen
ArtikelNr.
Schutzvermerk ISO 16016 beachten
Keys: UK819401
Pos. Name
WP Heat pump
SB Protection zone
H1 to the floor
1 Doors, windows, light wells etc. into the building
Important: The heat pump must be installed outdoors!
The device should be positioned so that, in the event of a leak, no refrigerant can enter the building or endanger
persons in any other way.
In the protection zone (see illustration) between the upper edge of the device and the floor, there must not be any sources of
ignition, windows, doors, ventilation openings, light wells or similar.
The protection zone must not reach into neighbouring properties or public traffic areas.
The wall duct through the building envelope should be designed to be airtight.
Protection zones / safety distances LWD
