10
Subject to change without notice | 83053700lUK | ait-deutschland GmbH
15 Installation
Observe the following when performing all work:
NOTE
Always comply with the applicable local
accident prevention regulations, statutory
regulations, ordinances, guidelines and
directives.
NOTE
Observe the sound levels of the respective
model.
“Technical data / scope of delivery“, from
page 22, “Sound” section
15.1 Installation room
NOTE
Note and follow the local regulations and
standards regarding the installation room
and space requirements. The table shows
the regulations as per EN 378-1 relevant in
Germany.
Refrigerant Limit [kg/m³]
R 134a 0.25
R 404A 0.52
R 407C 0.31
R 410A 0.44
R 410A 0.44
R 448A 0.39
“Technical data / scope of delivery“, from
page 22, “General unit data” section
Minimum room volume =
Refrigerant capacity [kg]
Limit [kg/m³]
NOTE
If several heat pumps of the same type are
installed only one heat pump need to be
taken into account. If several heat pumps of
dierent types are installed, only the heat
pump with the largest refrigerant volume
needs to be taken into account.
9 Minimum volume corresponds to the require-
ments for the refrigerant used.
9 Installation inside the building only.
9 Installation room is dry and frost-free.
9 Clearance dimensions are met
“Installation plans“, from page 44
9 The surface/oor is suitable for installation of the
unit:
● level and horizontal
● load-bearing capacity for the unit’s weight

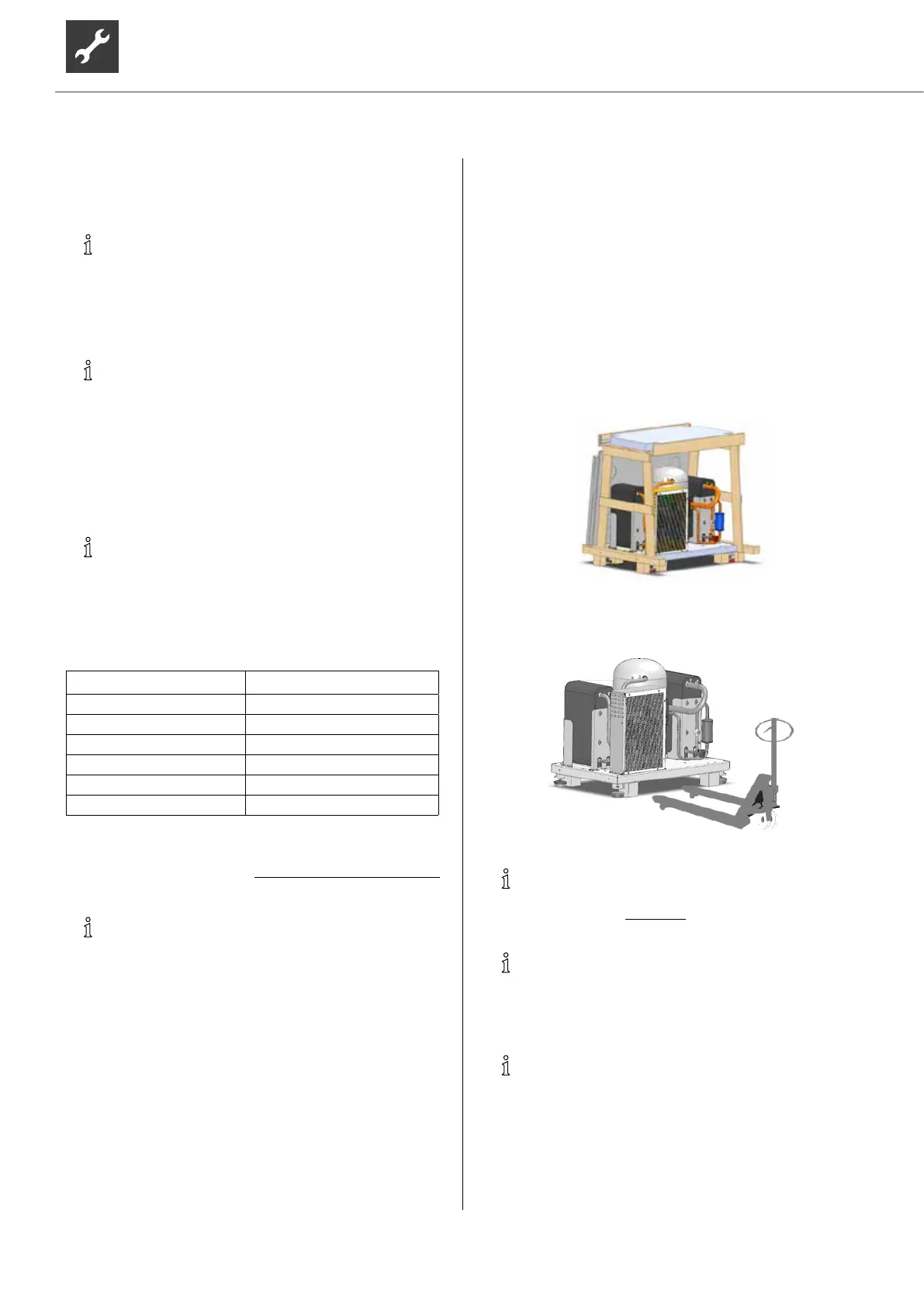

15.2 Transport to installation location
1. Before transporting the heat pump to the nal in-
stallation location the packaging and wooden
frame can be dismantled.
To do this, remove the facing panels on the long
sides, undo the wooden boards and remove the
two machine screws (M8) in each of the sides.
2. You can now lift the unit with the help of a pallet
truck or fork lift truck and transport it to its nal in-
stallation location.
NOTE
The unit has ground clearance for easy
access from all sides.
NOTE
The baseplate is 76 cm wide, so that the heat
pump can be transported through a standard
door opening.
NOTE
Keep the components enclosed in the scope
of delivery in a safe place until the assembly.
