Subject to change without notice | 83053700lUK | ait-deutschland GmbH

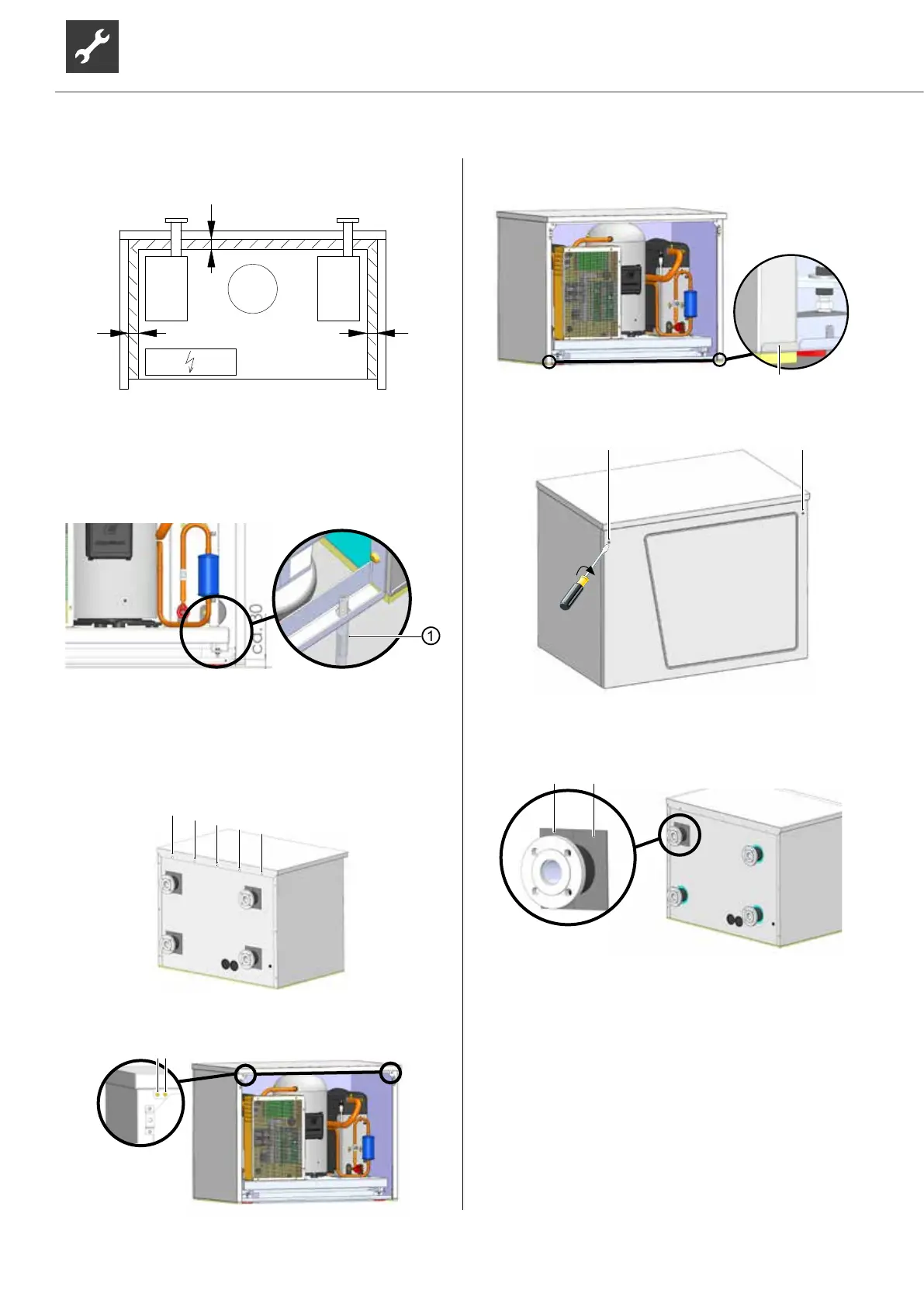

4. Align the facing with the baseplate as shown in
the following sketch
28
28
28
5. Secure and x the facing on the prole rail using
the fastening materials included in the scope of
delivery (2 x 10mm anchors and 2 x M8 hanger
bolts). Twist the hanger bolt into the oor up to the
start of the thread.
1 hanger bolt with anchor
6. Align the insulating board under the unit with the
middle of the unit (see 1).
7. Fix the housing cover onto the rear panel (5
screws)
and the two side panels (2 screws each) onto the
front.
8. The front panel can now be hung into the clips
provided at the bottom.
and locked by means of the two quarter-turn
screws.
9. Glue the insulating half-shells included in the
scope of delivery around the pipe pieces in the
rear panel.
