Cross Fader & Color Macro
[In 5 or 12 channel mode]
- When the DMX value of Ch.4(Cross Fader) is 0, the color temperature set by Ch.2(CCT)
is distributed.
- When the DMX value of Ch.4 is 255, only color set by Ch.5(Color Macro in 5 Channel Mode)
or Ch.5~11(Red, Green, Blue, Amber, Lime, Cyan and Color Macro in 12 Channel Mode)
is distributed.
- In 12 channel mode, the last set color among Ch.5~10(Individual color settings)
and Ch.11 (Color Macro) is applied and distributed.
- As the DMX value of Ch.4 increase, the brightness of Ch.2 decrease
and the brightness of the color set by Ch.5 or Ch.5~11 increase at the same time.
- The DMX value of Ch.4 adjusts the CCT and color brightness and density ratio relative
to each other.

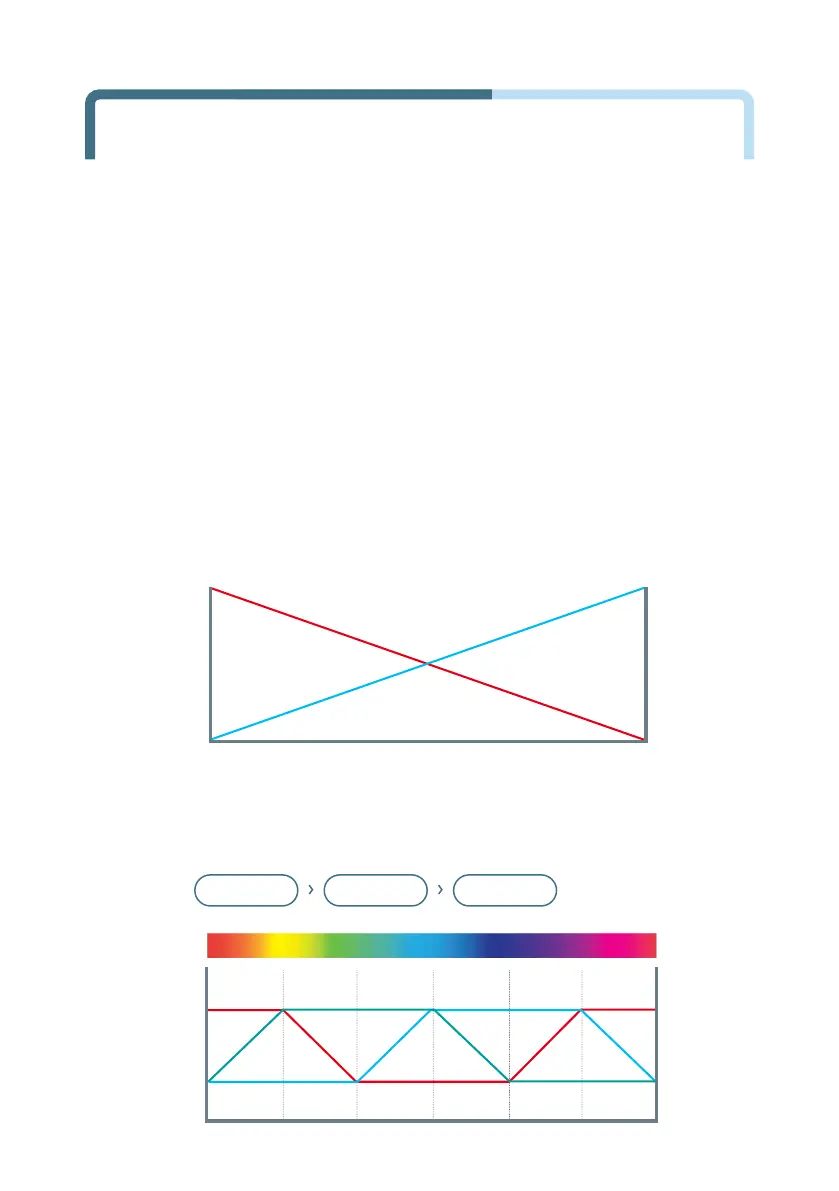

Cross Fader
Color Macro
100%
0%
0 255Cross Fader Value
Bright
Value
Color Macro(Ch.5 in 5 channel mode, Ch.11 in 12 channel mode) is rainbow gradation effect.
The order is
RED GREEN BLUE
1
0
0° 360°
(1-S)
60° 120° 180° 240°
V
300°
