Alpha Evoke 28NX and 33NX - Installation
Gasket protruding rib
facing downwards
Flue turret
Four fixing screws
Fig. 5.5

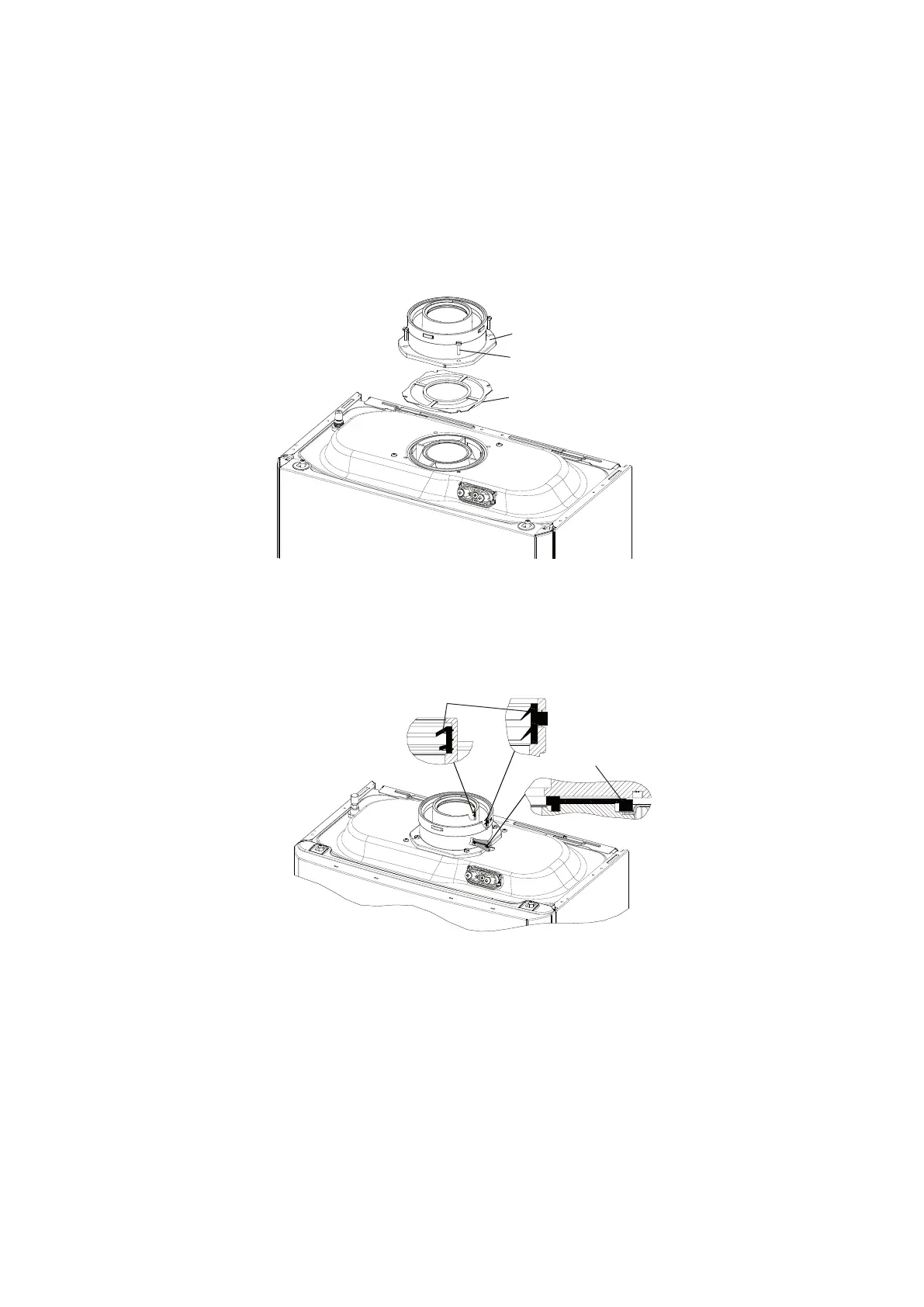

5.6 FIT THE FLUE TURRET - Figs. 5.5 and 5.6
1. Remove flue turret, flat concentric gasket and four screws from the accessory pack.
2. Place the flat concentric gasket onto the boiler, ensuring the protruding 60mm rib is facing downwards and located
correctly. See Figs. 5.5 and 5.6.
3. Fit the turret on top of the flat concentric gasket and secure with the four screws provided.
4. Check the 60mm and 100mm double lip seal gaskets are fitted with the lips facing downwards. See Fig. 5.6.
Flue seal ribs
must face downwards
Flue turret gasket
must be located
as shown
Fig. 5.6
19
